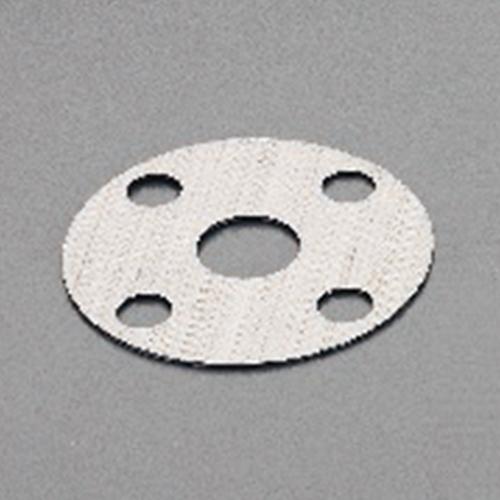

ESCO [JIS 5K] 50A/3.0mm Full-Face Flange Gasket EA351DH-50
JAN
4550061640708
ASIN
B098SPB6HL
Maker
Model No.
EA351DH-50
Color
Size
Description
ESCO-JIS-3-0mm-Full-Face Flange Gasket-EA351DH-50
▪️Nominal Diameter…50A
▪️Thickness…3.0mm
▪️Operating Temperature Range…-240~650℃ (Up to 420℃ in oxidizing atmosphere gases)
▪️Pressure Limit…5MPa
▪️Material…SUS316 (flat plate) + expanded graphite + anti-seizing treatment
▪️Applicable Fluids…Water-based, steam, oil-based, hot air, exhaust gas, etc.
▪️Full-face packing
▪️JIS5K
▪️For general industrial flange gaskets, heat exchangers, etc.
▪️Packing resistant to pressure rupture and significantly suppressing adhesion to flanges
▪️ Number of bolt holes…4
Brand Name: Esco
Material: Stainless Steel
4550061640708
Esco [JIS 5K] 50A/3.0mm Full Face Flange Gasket EA351DH-50
(text created at , 2025-05-10)
▪️Nominal Diameter…50A
▪️Thickness…3.0mm
▪️Operating Temperature Range…-240~650℃ (Up to 420℃ in oxidizing atmosphere gases)
▪️Pressure Limit…5MPa
▪️Material…SUS316 (flat plate) + expanded graphite + anti-seizing treatment
▪️Applicable Fluids…Water-based, steam, oil-based, hot air, exhaust gas, etc.
▪️Full-face packing
▪️JIS5K
▪️For general industrial flange gaskets, heat exchangers, etc.
▪️Packing resistant to pressure rupture and significantly suppressing adhesion to flanges
▪️ Number of bolt holes…4
Brand Name: Esco
Material: Stainless Steel
4550061640708
Esco [JIS 5K] 50A/3.0mm Full Face Flange Gasket EA351DH-50
(text created at , 2025-05-10)
