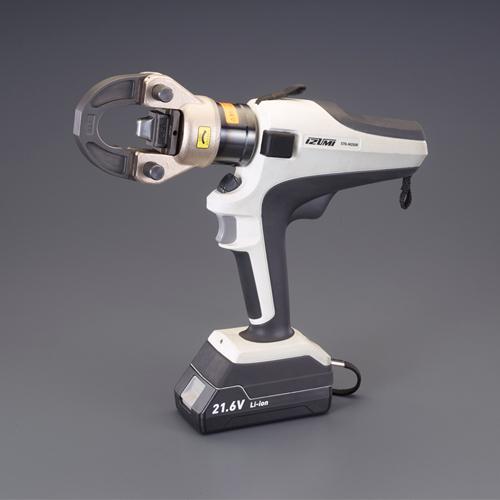

Esco 14-250mm² Rechargeable Hydraulic Multi-Function Tool EA539P-20
JAN
4550061648971
ASIN
B09SHPLVG8
Maker
Model No.
EA539P-20
Color
Size
346 × 325 × 82 mm
Description
▪️Crimping Range…14~250mm²▪️T-Type Crimping…T11~T240▪️Hex Crimping…Up to Cu180-200-32 (C32)▪️Battery…21.6V (Lithium-ion 2.0Ah)
▪️Nominal Output…127kN▪️Dimensions…346×325×82mm▪️Weight…4.5kg▪️Charger…AC 100V▪️Charging Time…30 min (80%), 40 min (100%)▪️Crimp Cycles…45 cycles (when crimping 250mm²)
▪️Included Accessories…Battery (EA585ED-10A), Charger, Crimping Collar, Compression Yoke, Male Dies (14, 22, 38-70, 80-15, 200, 250), Female Dies (14-38, 60-70, 80-100, 150, 200, 250), Case, Terminal Cover▪️Equipped with a powerful & speedy 21.6V battery▪️Features an auto-return function to boost work efficiency▪️Pass/fail determination via pressure sensor, work location recording via GPS▪️Advanced features including work management via Bluetooth® communication▪️Crimping from 14 to 250mm²▪️By changing the tip attachment, it can perform crimping/compression work, punching work, and cutting work on cables, full-thread screws, and raceways.
▪️Various attachments sold separately▪️Standard crimping dies included▪️Capable of cutting φ50 cables
Brand Name: Esco
Crimping Range…14–250mm²
Crimp Cycles…45 cycles (when crimping 250mm²) nT-type compression...T11–T240
Hex compression...Up to Cu180-200-32 (C32)
Battery... 21.6V (Lithium-ion 2.0Ah)
Nominal Output…127kN
Dimensions…346×325×82mm
Weight…4.5kg
Charger…AC 100V
Charging Time…30 min (80%), 40 min (100%)
4550061648971\ nB09SHPLVG8
Esco 14-250mm² Rechargeable Hydraulic Multi-Function Tool EA539P-20
(text created at , 2025-11-13)
▪️Nominal Output…127kN▪️Dimensions…346×325×82mm▪️Weight…4.5kg▪️Charger…AC 100V▪️Charging Time…30 min (80%), 40 min (100%)▪️Crimp Cycles…45 cycles (when crimping 250mm²)
▪️Included Accessories…Battery (EA585ED-10A), Charger, Crimping Collar, Compression Yoke, Male Dies (14, 22, 38-70, 80-15, 200, 250), Female Dies (14-38, 60-70, 80-100, 150, 200, 250), Case, Terminal Cover▪️Equipped with a powerful & speedy 21.6V battery▪️Features an auto-return function to boost work efficiency▪️Pass/fail determination via pressure sensor, work location recording via GPS▪️Advanced features including work management via Bluetooth® communication▪️Crimping from 14 to 250mm²▪️By changing the tip attachment, it can perform crimping/compression work, punching work, and cutting work on cables, full-thread screws, and raceways.
▪️Various attachments sold separately▪️Standard crimping dies included▪️Capable of cutting φ50 cables
Brand Name: Esco
Crimping Range…14–250mm²
Crimp Cycles…45 cycles (when crimping 250mm²) nT-type compression...T11–T240
Hex compression...Up to Cu180-200-32 (C32)
Battery... 21.6V (Lithium-ion 2.0Ah)
Nominal Output…127kN
Dimensions…346×325×82mm
Weight…4.5kg
Charger…AC 100V
Charging Time…30 min (80%), 40 min (100%)
4550061648971\ nB09SHPLVG8
Esco 14-250mm² Rechargeable Hydraulic Multi-Function Tool EA539P-20
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
404,412 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
