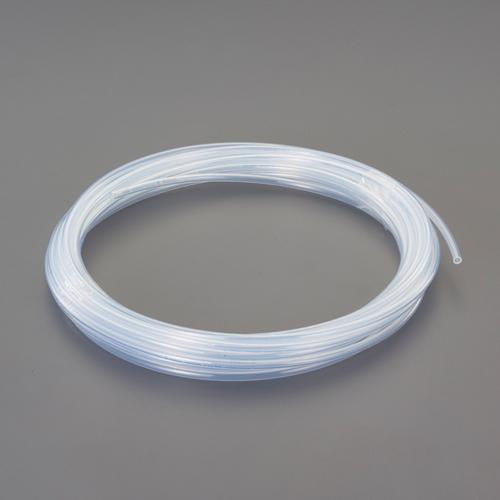

Esco 2.0/4.0mm x 10m Ultra-Flexible Fluoropolymer Tube (ETFE) EA125FA-204C

4550061696385

B09SHPV6ZZ

EA125FA-204C

▪️Outer Diameter × Inner Diameter (mm)…4×2▪️Length…10m▪️Operating Pressure (MPa)…0~0.6 (20°C) 0~0.2 (80°C)▪️Material…Inner Layer: 4-Fluorinated Fluoropolymer (ETFE) Outer Layer: Urethane-Based Elastomer▪️ Maximum operating temperature…80℃▪️Operating temperature range…-20~80℃▪️Color…Transparent▪️Applications…Multi-purpose piping for printing machinery, food processing equipment, scientific experiments, etc.▪️Fluids…Chemicals, ink, food, beverages, powders, water, oil▪️Chemical resistance…The inner layer is fluorinated resin (ETFE-based), providing resistance to most chemicals.
▪️Flexibility…The layered structure provides superior flexibility compared to standard fluoropolymer tubing, improving workability.▪️Low Leaching & Low Odor…Extremely low resin odor and leachables make it suitable for food/beverage and cosmetic applications.

Brand Name: Esco
OD × ID (mm)…4 × 2
Applications... Multi-purpose piping for printing machinery, food processing equipment, scientific experiments, etc.
Length... 10m
Operating Pressure (MPa)... 0–0.6 (20°C)
0–0.2 (80°C)
Material... Inner Layer: Tetrafluoroethylene-ethylene fluoride (ETFE)
Outer Layer: Urethane elastomer
Maximum Operating Temperature... 80°C
Operating Temperature Range…-20 to 80℃
Color…Transparent
4550061696385
Esco 2.0/4.0mm x 10m Ultra-Flexible Fluoropolymer Tube (ETFE) EA125FA-204C
