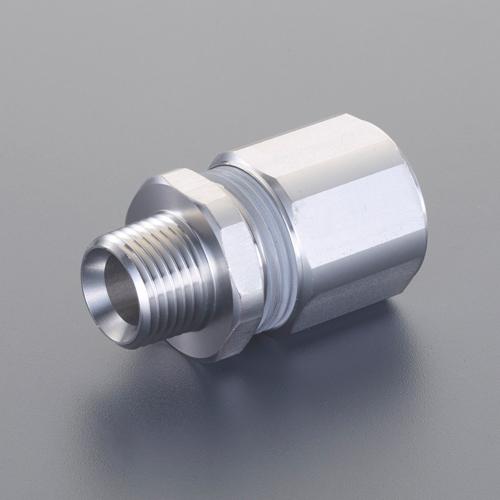

Esco R1/2x15-22mm Nut-Tightening Nipple, Eight-Lock/Stainless Steel EA141A-12
JAN
4550061698211
ASIN
B09SHPQYWQ
Maker
Model No.
EA141A-12
Color
Size
A: 50 B: φ13 HEX: 32
Description
▪️Screw Size (R)…1/2"▪️Compatible Hose…ID:15mm OD:22mm▪️Maximum Working Pressure…1.0MPa▪️Material…Body, Ring, Nut: SUS304 Sleeve: POM▪️Size (mm)… A:50 B:φ13 HEX:32▪️Weight…153g▪️Applications…Piping fittings for machine tools, molding machines, factory equipment, etc. Semiconductor-related equipment, FPD manufacturing equipment Manufacturing equipment for food, cosmetics, pharmaceuticals Manufacturing equipment for power plants, chemicals, waste oil, waste liquids, organic solvents▪️Dedicated Fitting: Eliminates leakage and disconnection issues caused by incorrect hose or fitting selection.▪️ Safety: Clearly defines the operating temperature range and pressure based on hose type.
▪️ Hygiene: The body and nipple are a single piece, creating a flat inner surface for hygienic operation.
▪️ Energy-saving design: The larger inner diameter compared to standard hose nipples reduces fluid pressure, contributing to energy savings.
▪️Field Installation: Hoses can be cut to any desired length on-site and assembled immediately.
▪️Reusable: All parts except the sleeve can be reused. When the hose deteriorates, replace only the hose and dedicated sleeve; the fitting itself can be reused.
▪️Standardized Installation: Anyone can uniformly attach the fitting to the hose simply by tightening the nut fully. Unlike bamboo nipples, there is no need to manage band tightening position, tightening torque, or retightening operations.▪️The flat inner surface of the fitting and the absence of a rubber gasket minimize liquid pooling and facilitate cleaning.▪️Bandless design eliminates torque management, enabling standardized fitting installation.▪️Simply tighten the nut fully to uniformly attach the fitting to the hose. Brand Name: Esco Material: Rubber Thread Size (R)...1/2" Applications: Semiconductor equipment, FPD manufacturing equipment Compatible Hose...ID: 15mm OD: 22mm Maximum Working Pressure...1.0MPa Materials...Body, Ring, Nut: SUS304
Sleeve: POM
Size (mm)…A:50 B:φ13 HEX:32
Weight…153g
Applications…Piping fittings for machine tools, molding machines, factory equipment, etc.
4550061698211\ nB09SHPQYWQ
Esco R1/2x15-22mm Nut-Tightening Nipple, Octalock/Stainless Steel EA141A-12
(text created at , 2025-11-12)
▪️ Hygiene: The body and nipple are a single piece, creating a flat inner surface for hygienic operation.
▪️ Energy-saving design: The larger inner diameter compared to standard hose nipples reduces fluid pressure, contributing to energy savings.
▪️Field Installation: Hoses can be cut to any desired length on-site and assembled immediately.
▪️Reusable: All parts except the sleeve can be reused. When the hose deteriorates, replace only the hose and dedicated sleeve; the fitting itself can be reused.
▪️Standardized Installation: Anyone can uniformly attach the fitting to the hose simply by tightening the nut fully. Unlike bamboo nipples, there is no need to manage band tightening position, tightening torque, or retightening operations.▪️The flat inner surface of the fitting and the absence of a rubber gasket minimize liquid pooling and facilitate cleaning.▪️Bandless design eliminates torque management, enabling standardized fitting installation.▪️Simply tighten the nut fully to uniformly attach the fitting to the hose. Brand Name: Esco Material: Rubber Thread Size (R)...1/2" Applications: Semiconductor equipment, FPD manufacturing equipment Compatible Hose...ID: 15mm OD: 22mm Maximum Working Pressure...1.0MPa Materials...Body, Ring, Nut: SUS304
Sleeve: POM
Size (mm)…A:50 B:φ13 HEX:32
Weight…153g
Applications…Piping fittings for machine tools, molding machines, factory equipment, etc.
4550061698211\ nB09SHPQYWQ
Esco R1/2x15-22mm Nut-Tightening Nipple, Octalock/Stainless Steel EA141A-12
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
11,663 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
