Esco Extender HDMI-USB2.0 EA940PM-164
JAN
4550061706138
ASIN
B09SHXN4ZC
Maker
Model No.
EA940PM-164
Color
Size
90 × 55 × 24
Description

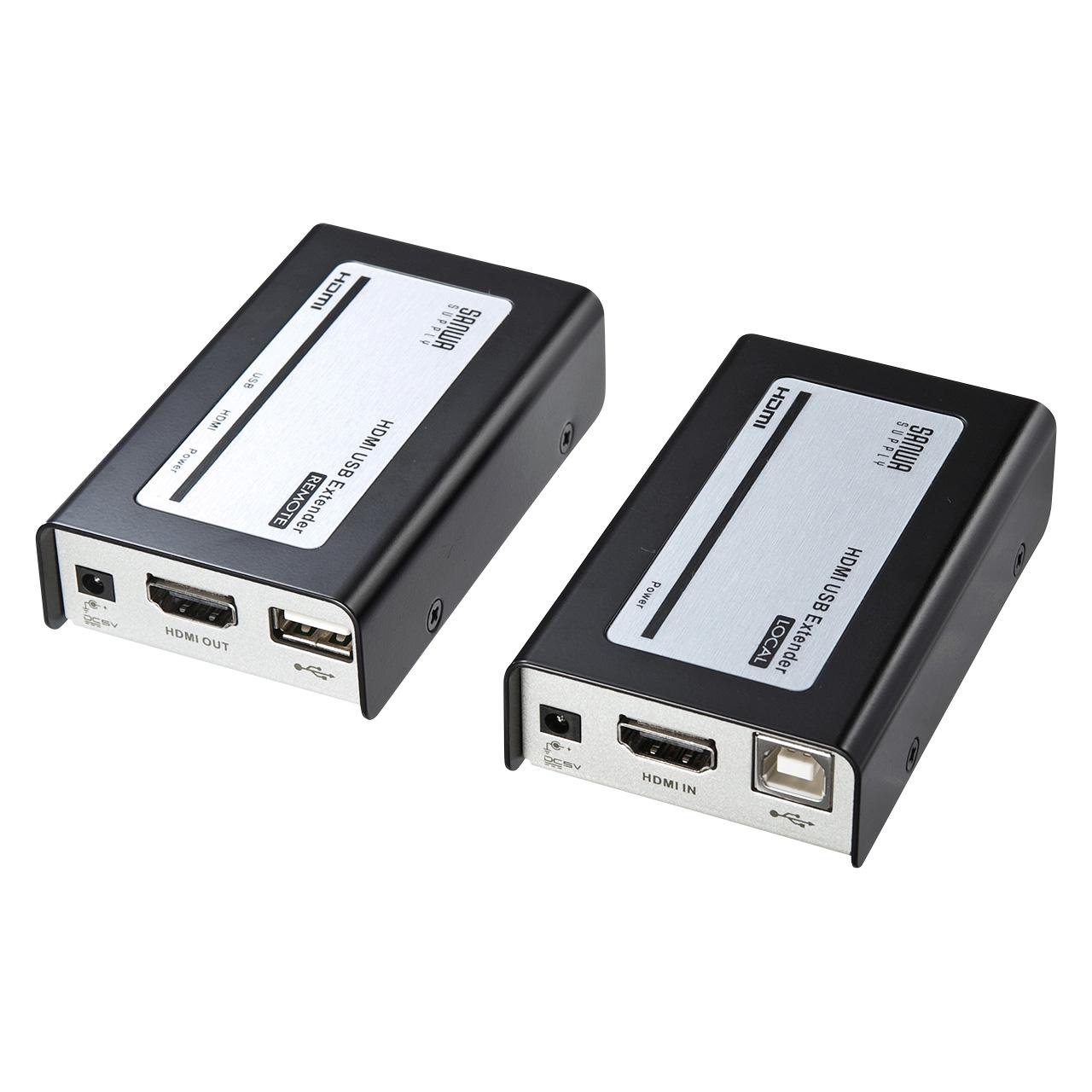

Esco Extender HDMI to USB 2.0 EA940PM-164
▪️Interface…Transmitter\
Input/HDMI Type A (19-pin) Female ×1, USB B Connector Female ×1\
Output/RJ-45 Female ×2\
Receiver\
Input/RJ-45 Female ×2\
Output/HDMI Type A (19-pin) Female ×1, USB A Connector Female ×1\
▪️Dimensions (W×D×H) mm…90×55×24\
▪️Weight (g)…160\
▪️USB Standard…USB 2.0 compatible ※Supports up to Full Speed mode; does not support High Speed mode\
▪️Bandwidth…Maximum 2.25Gbps\
▪️HDCP…Compatible ※The display must also support HDCP\
▪️Extension Cable Length…60m (Maximum) ※The extendable cable length varies depending on the resolution.\
▪️CEC…Not supported\
▪️This HDMI+USB 2.0 extender extends HDMI and USB signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.\
▪️It can receive high-quality HDMI video signals along with high-quality audio signals.\
▪️This product supports HDCP (High-bandwidth Digital Content Protection). *The display must also support HDCP.\
▪️It consists of a transmitter and receiver set, allowing extension between units using two Category 6 straight cables.\
▪️Ideal for extending touch panel signals (USB) over long distances alongside video signals, such as for touch panel displays.\
▪️USB 2.0 compatible (up to Full Speed), supporting connections to printers, HDDs, keyboards, and mice. ※Supports up to Full Speed mode. Maximum transfer speed with USB devices is Full Speed mode.\
▪️Uses Category 6 cable for easy handling and excellent cost performance. *This product requires two Category 6 straight cables. Please purchase them separately.\
▪️No software installation is needed; simply connect and use.\
▪️Includes a wall mount kit for wall-mounted installation.\
Brand Name: Esco\
Interfaces... Transmitter Input/HDMI Type A (19-pin) Female ×1, USB B Connector Female ×1 Output/RJ-45 Female ×2 Receiver Input/RJ-45 Female ×2 Output/HDMI Type A (19-pin) Female ×1, USB A Connector Female ×1
Receives high-quality HDMI video signals and high-fidelity audio signals simultaneously. Size (W×D×H) mm…90×55×24
Weight (g)…160
USB Standard…USB 2.0 compatible ※Supports up to Full Speed mode; does not support High Speed mode
Bandwidth…Maximum 2.25Gbps
HDCP…Compatible ※The display must also be HDCP compatible
Extension Cable Length…60m (Maximum) ※Cable extension distance varies depending on resolution.
▪️Interface…Transmitter\
Input/HDMI Type A (19-pin) Female ×1, USB B Connector Female ×1\
Output/RJ-45 Female ×2\
Receiver\
Input/RJ-45 Female ×2\
Output/HDMI Type A (19-pin) Female ×1, USB A Connector Female ×1\
▪️Dimensions (W×D×H) mm…90×55×24\
▪️Weight (g)…160\
▪️USB Standard…USB 2.0 compatible ※Supports up to Full Speed mode; does not support High Speed mode\
▪️Bandwidth…Maximum 2.25Gbps\
▪️HDCP…Compatible ※The display must also support HDCP\
▪️Extension Cable Length…60m (Maximum) ※The extendable cable length varies depending on the resolution.\
▪️CEC…Not supported\
▪️This HDMI+USB 2.0 extender extends HDMI and USB signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.\
▪️It can receive high-quality HDMI video signals along with high-quality audio signals.\
▪️This product supports HDCP (High-bandwidth Digital Content Protection). *The display must also support HDCP.\
▪️It consists of a transmitter and receiver set, allowing extension between units using two Category 6 straight cables.\
▪️Ideal for extending touch panel signals (USB) over long distances alongside video signals, such as for touch panel displays.\
▪️USB 2.0 compatible (up to Full Speed), supporting connections to printers, HDDs, keyboards, and mice. ※Supports up to Full Speed mode. Maximum transfer speed with USB devices is Full Speed mode.\
▪️Uses Category 6 cable for easy handling and excellent cost performance. *This product requires two Category 6 straight cables. Please purchase them separately.\
▪️No software installation is needed; simply connect and use.\
▪️Includes a wall mount kit for wall-mounted installation.\
Brand Name: Esco\
Interfaces... Transmitter Input/HDMI Type A (19-pin) Female ×1, USB B Connector Female ×1 Output/RJ-45 Female ×2 Receiver Input/RJ-45 Female ×2 Output/HDMI Type A (19-pin) Female ×1, USB A Connector Female ×1
Receives high-quality HDMI video signals and high-fidelity audio signals simultaneously. Size (W×D×H) mm…90×55×24
Weight (g)…160
USB Standard…USB 2.0 compatible ※Supports up to Full Speed mode; does not support High Speed mode
Bandwidth…Maximum 2.25Gbps
HDCP…Compatible ※The display must also be HDCP compatible
Extension Cable Length…60m (Maximum) ※Cable extension distance varies depending on resolution.
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
41,217 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
