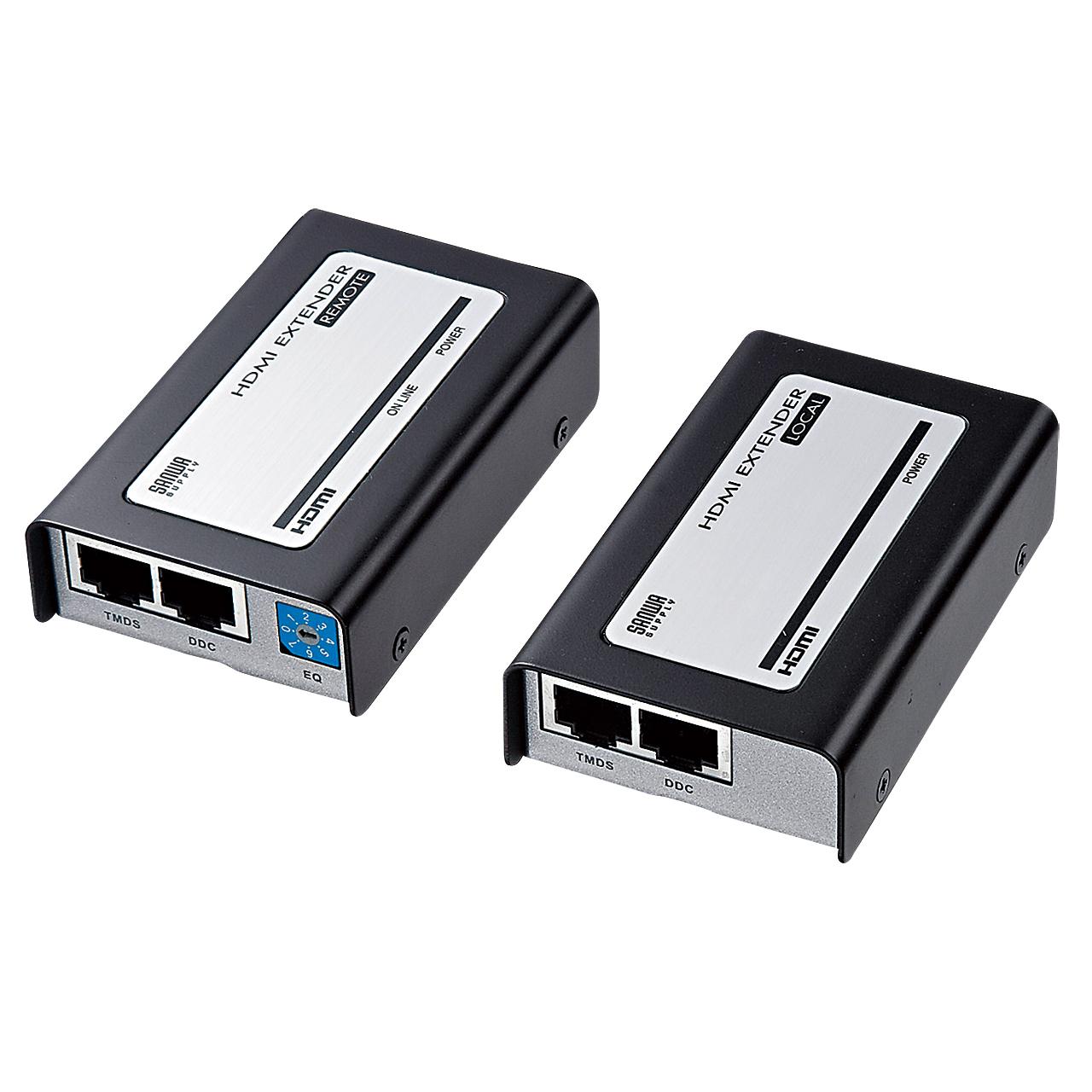

Esco Extender HDMI EA940PM-165
JAN
4550061706145
ASIN
B09SHX8XXK
Maker
Model No.
EA940PM-165
Color
Size
90 × 55 × 24
Description
Esco Extender HDMI EA940PM-165
▪️Interface…Transmitter\
Input/ HDMI Type A (19-pin) Female ×1\
Output/ RJ-45 Female ×2\
Receiver\
Input/ RJ-45 Female ×2\
Output/ HDMI Type A (19-pin) Female ×1\
▪️Dimensions (W×D×H) mm…90×55×24\
▪️Weight (g)…160\
▪️Standards…HDMI Ver.1.3b/DVI Ver.1.0\
▪️Power Consumption…Transmitter: 1.22W (Max)\
Receiver: 0.95W (Max)\
▪️Bandwidth…Max 2.25Gbps\
▪️HDCP…Supported* Display must also support HDCP.\
▪️Extension Cable Length…60m (Max)* Cable extension distance varies depending on resolution.\
▪️This HDMI extender extends HDMI signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.\
▪️Extends both high-quality HDMI video signals and high-fidelity audio signals simultaneously.\
▪️HDCP (High-bandwidth Digital Content Protection) compliant product. ※The display must also be HDCP compliant.\
▪️Comprises a transmitter and receiver set; extension is achieved using two LAN cables between units.\
▪️Using LAN cables (Category 6) with a transmission bandwidth of 250MHz enables long-distance transmission of high-quality HDMI signals with minimal signal loss.\
▪️Since it uses LAN cables (Category 6), it offers easy handling and excellent cost performance. ※This product requires two Category 6 LAN cables. (Not included. Please purchase separately.)\
▪️Compatible with HDMI Ver.1.3b, supporting Deep Color and Dolby TrueHD.\
▪️Ideal for environments where installing HDMI equipment is difficult, such as factories or construction sites. It allows placing the display at the extension point while positioning the HDMI output device in a more favorable, remote location.\
▪️Includes a wall mount kit for wall-mounted installation. Brand Name: Esco Interface... Transmitter Input/ HDMI Type A (19-pin) Female ×1 Output/ RJ-45 Female ×2 Receiver Input/ RJ-45 Female ×2 Output/ HDMI Type A (19-pin) Female ×1 Extends high-quality HDMI video signals and high-fidelity audio signals simultaneously. Size (W×D×H) mm...90×55×24 Weight (g)...160 Standards...HDMI Ver.1.3b/DVI Ver.1.0 Power Consumption...Transmitter: 1.22W (max) Receiver: 0.95W (max) Bandwidth... Maximum 2.25Gbps
HDCP…Supported ※The display must also support HDCP.
Extension Cable Length…60m (Maximum) ※The extendable cable length varies depending on the resolution.
This HDMI extender extends HDMI signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.
4550061706145\ nB09SHX8XXK
Esco Extender HDMI EA940P
▪️Interface…Transmitter\
Input/ HDMI Type A (19-pin) Female ×1\
Output/ RJ-45 Female ×2\
Receiver\
Input/ RJ-45 Female ×2\
Output/ HDMI Type A (19-pin) Female ×1\
▪️Dimensions (W×D×H) mm…90×55×24\
▪️Weight (g)…160\
▪️Standards…HDMI Ver.1.3b/DVI Ver.1.0\
▪️Power Consumption…Transmitter: 1.22W (Max)\
Receiver: 0.95W (Max)\
▪️Bandwidth…Max 2.25Gbps\
▪️HDCP…Supported* Display must also support HDCP.\
▪️Extension Cable Length…60m (Max)* Cable extension distance varies depending on resolution.\
▪️This HDMI extender extends HDMI signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.\
▪️Extends both high-quality HDMI video signals and high-fidelity audio signals simultaneously.\
▪️HDCP (High-bandwidth Digital Content Protection) compliant product. ※The display must also be HDCP compliant.\
▪️Comprises a transmitter and receiver set; extension is achieved using two LAN cables between units.\
▪️Using LAN cables (Category 6) with a transmission bandwidth of 250MHz enables long-distance transmission of high-quality HDMI signals with minimal signal loss.\
▪️Since it uses LAN cables (Category 6), it offers easy handling and excellent cost performance. ※This product requires two Category 6 LAN cables. (Not included. Please purchase separately.)\
▪️Compatible with HDMI Ver.1.3b, supporting Deep Color and Dolby TrueHD.\
▪️Ideal for environments where installing HDMI equipment is difficult, such as factories or construction sites. It allows placing the display at the extension point while positioning the HDMI output device in a more favorable, remote location.\
▪️Includes a wall mount kit for wall-mounted installation. Brand Name: Esco Interface... Transmitter Input/ HDMI Type A (19-pin) Female ×1 Output/ RJ-45 Female ×2 Receiver Input/ RJ-45 Female ×2 Output/ HDMI Type A (19-pin) Female ×1 Extends high-quality HDMI video signals and high-fidelity audio signals simultaneously. Size (W×D×H) mm...90×55×24 Weight (g)...160 Standards...HDMI Ver.1.3b/DVI Ver.1.0 Power Consumption...Transmitter: 1.22W (max) Receiver: 0.95W (max) Bandwidth... Maximum 2.25Gbps
HDCP…Supported ※The display must also support HDCP.
Extension Cable Length…60m (Maximum) ※The extendable cable length varies depending on the resolution.
This HDMI extender extends HDMI signals up to 40m at WUXGA (1920×1200 dots)/Full HD (1920×1080 dots) resolution, or up to 60m at 720p (1280×720 dots) resolution.
4550061706145\ nB09SHX8XXK
Esco Extender HDMI EA940P
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
27,742 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
