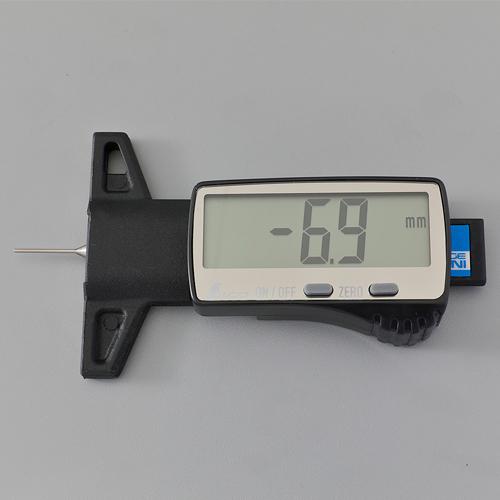

Esco 0-25mm Depth Gauge (Digital) EA725F-22

4550061749449

B09S5K1RH4

EA725F-22

Esco-0-25mm-Depth Gauge-EA725F-22

▪️ Measurement Range…25mm
▪️ Minimum Graduation…0.1mm
▪️ Base Width…60mm
▪️ Maximum Error…±0.2mm
▪️ Function…Auto Power Off (approx. 5 minutes without operation)
▪️Power source…CR2032 × 1 (included)
▪️Overall length…113mm
▪️Weight…46g
▪️Material…Body: Nylon resin (glass fiber reinforced)
Digital unit: ABS resin
Metal measuring tip: Stainless steel
Measuring guide: Polycarbonate resin
▪️Operating temperature…0~40℃
▪️Storage Temperature…-10~60℃
▪️Storage Humidity…80% or below
▪️Accessories…2 metal probes (cylindrical, needle-shaped), measurement guide, storage case
▪️You can swap the two included metal probes to suit your application.
▪️Needle-shaped: Can measure film thickness on urethane-based waterproofing materials, etc.
▪️Cylindrical (φ1mm): Enables depth measurement in confined spaces.
▪️Using the included measurement guide allows stable measurement without sinking into soft surfaces.
▪️Features a large, easy-to-read LCD with 15mm character height.
▪️Sliding the digital unit activates the device without pressing the ON/OFF button.
Brand Name: Esco
Material: Acrylonitrile Butadiene Styrene (ABS)
Measurement Range: 25mm
Operating Temperature: 0–40°C
Minimum Graduation: 0.1mm
Base Width: 60mm
Maximum Error: ±0.2mm
Function: Auto Power Off (approx. 5 minutes without operation)
Power Source: CR2032 × 1 (included)
Overall Length: 113mm
Weight...46g
Material...Body: Nylon resin (glass fiber reinforced) Digital unit: ABS resin Metal measuring tip: Stainless steel Measuring guide: Polycarbonate resin
4550061749449
Esco 0-25mm Depth Gauge (Digital) EA725F-22
