DC24V / φ100mm / 3600N Electromagnetic Magnet Holder

4550061753286

B09SHD3PY4

EA984CM-7

φ100×43

Esco Electromagnetic Magnet Holder EA984CM-37
▪️ Voltage/Current…DC24V/940mA
▪️ Maximum Holding Force…3600N
▪️Size (mm)…φ100×43\
▪️Backing Screw Diameter…d1: M10 (Depth 15mm)\
d2: M6 (Depth 10mm)\
▪️Weight (g)…2200\
▪️IP Rating…20\
▪️Material…Mild Steel (Nickel Plated)\
▪️Nickel Plated Finish\

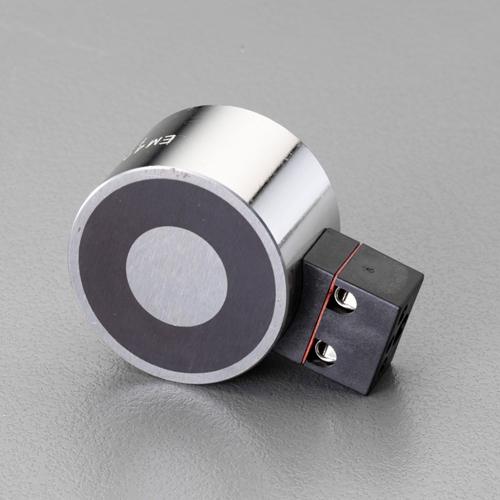

▪️The electromagnet's outer shell is a sturdy, glossy nickel-plated cylinder\
▪️This magnet adheres using 24VDC current.\
▪️Features mounting screw holes and anti-rotation screw holes on the back\
▪️For workpiece holding and transport, packaging machinery, office equipment, door locks, etc.\
▪️Combining with the separately sold contact plate (EA984CM-27) enables full performance as designed.\
▪️For holding workpieces in manufacturing processes.\
Brand Name: Esco\
Material: Nickel\
Voltage/Current: DC24V/940mA\
This magnet adheres with 24VDC current. Maximum holding force: 3600N
Size (mm): φ100 × 43
Back screw diameter: d1: M10 (depth 15mm) d2: M6 (depth 10mm)
Weight (g): 2200
IP rating: 20
Material: Mild steel (nickel plated)
Nickel plated finish
Electromagnet housing features a durable glossy nickel plating finish
2200
IP Rating…20
Material…Mild Steel (Nickel Plated)
Nickel Plated Finish
The electromagnet's outer shell is a sturdy, glossy nickel-plated cylinder
4550061753286\ nB09SHD3PY4
DC24V／φ100mm／3600N Electromagnetic Magnet Holder
