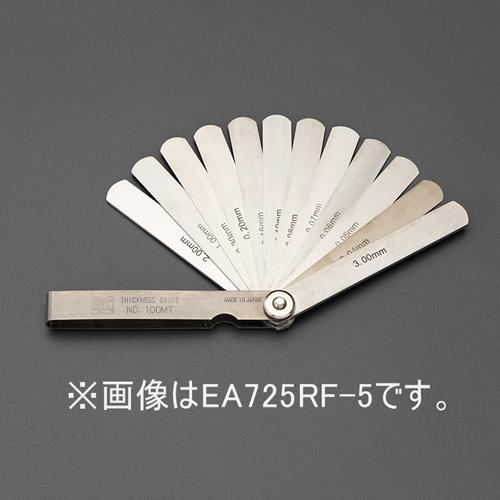

150mm / 13-piece thickness gauge set
JAN
4550061766583
ASIN
B09S5LD9ZD
Maker
Model No.
EA725RF-16
Color
Size
0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・2.00・3.00
Description
Brand Name: Esco
Number of Sheets...13
Leaf Length...150mm
Leaf Width…12.7mm
Size (mm)…0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・2.00・3.00
Accuracy…0.01–0.06: ±0.005mm, 0.07–0.10: ±0.01mm, 0.11–0.30: ±0.015mm, 0.40–0.60: ±0.02mm, 0.70–3.00: ±0.035mm
Material: Carbon tool steel
Weight: 140g
By inserting it into the fine gap between two planes that are difficult to measure with measuring instruments, accurate inspection is possible.
This is a measuring tool necessary for measuring the clearance between pistons and cylinder parts in automobiles and power generation machinery.
4550061766583
150mm / 13-piece set thickness gauge
(text created at , 2025-05-09)
Number of Sheets...13
Leaf Length...150mm
Leaf Width…12.7mm
Size (mm)…0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・2.00・3.00
Accuracy…0.01–0.06: ±0.005mm, 0.07–0.10: ±0.01mm, 0.11–0.30: ±0.015mm, 0.40–0.60: ±0.02mm, 0.70–3.00: ±0.035mm
Material: Carbon tool steel
Weight: 140g
By inserting it into the fine gap between two planes that are difficult to measure with measuring instruments, accurate inspection is possible.
This is a measuring tool necessary for measuring the clearance between pistons and cylinder parts in automobiles and power generation machinery.
4550061766583
150mm / 13-piece set thickness gauge
(text created at , 2025-05-09)
