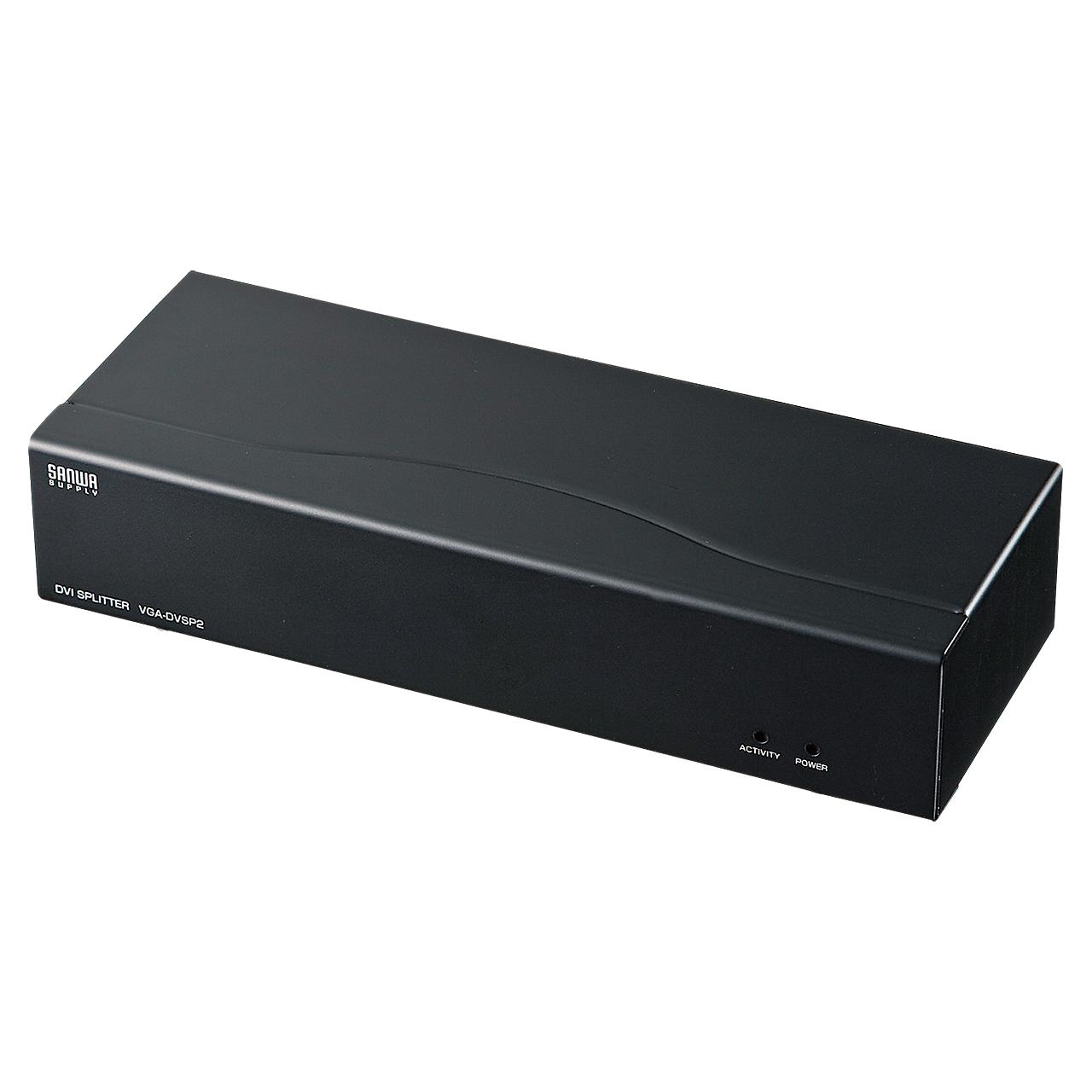

Esco Full HD DVI Display Splitter (2-Way) EA764AE-24

4550061804599

B09S5RVPHJ

EA764AE-24

200 × 75 × 42

Esco Full HD DVI Display Splitter - 2-Way - EA764AE-24
▪️ Number of Splits: 2
▪️ Dimensions (W×D×H) mm: 200×75×42
▪️ Weight (g): 584
▪️ Power Consumption: 2.8W / 69mA
▪️ Environmental Conditions: Operating Temperature: 0~50℃ Storage Temperature: -20~60℃ Storage Humidity: 0~80% (No condensation)
▪️ Maximum Display Resolution: 1920×1080
▪️Environmental Conditions…Operating Temp./0~50℃ Storage Temp./-20~60℃ Storage Humidity/0~80% (No condensation)\
▪️Maximum Display Resolution…1920×1200 dots (60Hz compatible)\
▪️HDCP…Compatible ※The display must also be HDCP compatible.\

▪️Supports 1080p (1920×1080 dots) Full HD video and WUXGA (1920×1200 dots).\
\
▪️HDCP (High-bandwidth Digital Content Protection) compliant product.\
▪️Supports DVI-I (29-pin) and DVI-D (24-pin).\
▪️Compares the EDID of displays connected to each port, determines the optimal maximum resolution viewable on all connected displays, and sends an output request to the PC.\
▪️Features a steel case that is resistant to electromagnetic waves and noise.\
▪️Supports cascade connections (up to 3 stages).\
※Since the distributed DVI output carries the same signal, the displays receiving the signal must support the same resolution and other signal specifications. Please note this in advance. ※For cascade connections, ensure the following distances are maintained: 1.8m between the DVI output device and the splitter, 1.8m between the splitter and the second-stage splitter, 1.8m between the second-stage splitter and the third-stage splitter, and 5m or less between the third-stage splitter and the display. (When set to maximum display resolution 1920×1200) ※Cascade connections are more susceptible to noise due to increased connection points. Minimize the total distance from the DVI output device to the farthest display. ※The included cable is a DVI-D (24-pin) cable. As it is for digital signals, if you need to convert analog signals for use, please prepare a separate DVI-I (29-pin) cable.\
▪️Connector Type…Input: DVI (24/29-pin) Female ×1, 3.5mm Stereo Mini Jack ×1\
Output: DVI (24/29-pin) Female ×2, 3.5mm Stereo Mini Jack ×2\
▪️Accessories... PC-to-splitter connection cable 1.8m × 1, AC adapter (DC5.3V 2.4A) × 1
Brand Name: Esco
Number of Splits... 2
Compatible with DVI-I (29-pin) and DVI-D (24-pin).
Dimensions (W×D×H) mm…200×75×42
Weight (g)…584
Power consumption…2.8W　69mA
Environmental conditions…Operating temperature／0～50℃　Storage temperature／－20～60℃　Storage humidity／0～80％　(No condensation) Maximum Display Resolution...1920×1200 dots (60Hz compatible) HDCP...Compatible ※The display must also be HDCP compatible. Supports 1080p (1920×1080 dots) Full HD video and WUXGA (1920×1200 dots).
HDCP (High-bandwidth Digital Content Protection) compliant product.
4550061804599
B09S5RVPHJ
Esco Full HD Compatible DVI Display Splitter (2-way) EA764AE-24
