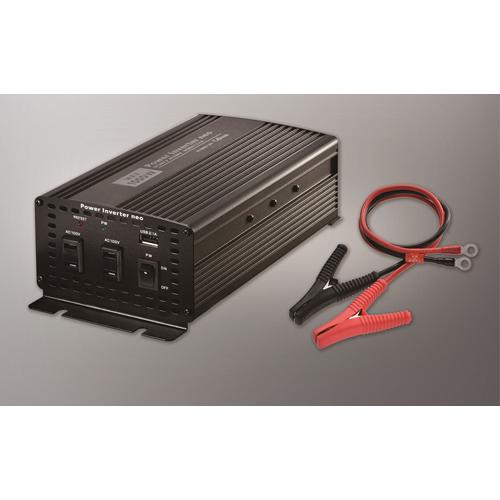

Esco DC24V to AC100V/800W DC-AC Inverter EA812JA-14C
JAN
4550061858813
ASIN
B09S5HNP6Y
Maker
Model No.
EA812JA-14C
Color
Size
120 × 212 × 76 (H) mm (excluding protrusions)
Description
Esco DC24V to AC100V DC-AC Inverter EA812JA-14C
▪️ Input Voltage…DC24V\
▪️ Output Voltage…AC100V\
▪️ Rated Output…800W\
▪️Maximum Output…1000W\
▪️Maximum Instantaneous Output (within 0.1 seconds)…2000W\
▪️Internal Fuses…20A × 3 (flat-type fuses)\
▪️Output Frequency…55Hz\
▪️Output Waveform…Square Wave\
▪️Conversion Efficiency…80% or higher\
▪️Circuit Type…P.W.M. Inverter\
▪️Input Method…Battery Connection\
▪️Operating Temperature Range…-20℃ to +40℃\
▪️Battery Connection Cable…70cm\
▪️Dimensions (W×D×H) mm…120×212×76 (excluding protrusions)\
▪️Weight (g)…1375\
▪️Features 6 protection circuits (output overload protection, output short circuit protection, abnormal temperature detection protection, input reverse connection protection, input undervoltage protection, input overvoltage protection)\
▪️Reliable 1000W power for travel, outdoor activities, and emergencies\
▪️Provides stable power via USB and AC outlets\
▪️Inverter suitable for large vehicles (trucks, buses)\
▪️AC100V×2 outlets, USB×1 port
Brand Name: Esco
Input Voltage…DC24V
Circuit Type…P.W.M. Inverter
Output Voltage…AC100V
Rated Output…800W
Maximum Output…1000W
Maximum Instantaneous Output (within 0.1 seconds)… 2000W
Internal Fuses…20A×3 (Flat Type) Built-in
Output Frequency…55Hz
Output Waveform…Square Wave
Conversion Efficiency…80% or Higher
4550061858813\ nB09S5HNP6Y
Esco DC24V→AC100V/800W DC-AC Inverter EA812JA-14C
(text created at , 2025-11-12)
▪️ Input Voltage…DC24V\
▪️ Output Voltage…AC100V\
▪️ Rated Output…800W\
▪️Maximum Output…1000W\
▪️Maximum Instantaneous Output (within 0.1 seconds)…2000W\
▪️Internal Fuses…20A × 3 (flat-type fuses)\
▪️Output Frequency…55Hz\
▪️Output Waveform…Square Wave\
▪️Conversion Efficiency…80% or higher\
▪️Circuit Type…P.W.M. Inverter\
▪️Input Method…Battery Connection\
▪️Operating Temperature Range…-20℃ to +40℃\
▪️Battery Connection Cable…70cm\
▪️Dimensions (W×D×H) mm…120×212×76 (excluding protrusions)\
▪️Weight (g)…1375\
▪️Features 6 protection circuits (output overload protection, output short circuit protection, abnormal temperature detection protection, input reverse connection protection, input undervoltage protection, input overvoltage protection)\
▪️Reliable 1000W power for travel, outdoor activities, and emergencies\
▪️Provides stable power via USB and AC outlets\
▪️Inverter suitable for large vehicles (trucks, buses)\
▪️AC100V×2 outlets, USB×1 port
Brand Name: Esco
Input Voltage…DC24V
Circuit Type…P.W.M. Inverter
Output Voltage…AC100V
Rated Output…800W
Maximum Output…1000W
Maximum Instantaneous Output (within 0.1 seconds)… 2000W
Internal Fuses…20A×3 (Flat Type) Built-in
Output Frequency…55Hz
Output Waveform…Square Wave
Conversion Efficiency…80% or Higher
4550061858813\ nB09S5HNP6Y
Esco DC24V→AC100V/800W DC-AC Inverter EA812JA-14C
(text created at , 2025-11-12)
