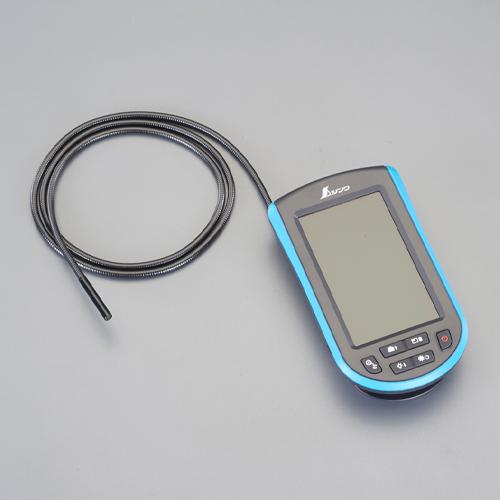

Shinwa Sokutei φ5.2mm x 1.0m Handheld Scope EA750FY-2
JAN
4550061867396
ASIN
B09S5WNZFB
Maker
Model No.
EA750FY-2
Color
Size
88 (W) × 32 (D) × 154 (H) mm
Description
Esco-φ5-2mmx1-0m-Handheld Scope-EA750FY-2
Features\
Saves videos and still images to a MicroSD card for transfer to a computer or other device.\
Features a zoom function with three magnification levels: 1x, 1.5x, and 2x.\
The camera head is φ5.2mm, allowing inspection in tight spaces. \
The cable is flexible and can be bent freely.\
Equipped with a high-brightness LED light with 8 adjustable brightness levels via a handheld switch.\
Capture images with the high-resolution camera and view them on the large color LCD screen.\
The cable can be wound for storage, allowing for compact storage.\
Transfer data to a computer via the USB Type-B cable.\
※The included batteries are test batteries; please purchase new batteries. \
\
Specifications\
Manufacturer: Shinwa Measuring\
Model Number: 74177\
Camera Head Diameter: φ5.2mm\
Cable Diameter: φ5mm\
Cable Length: 1m\
Monitor Size: 4.3 inches\
microSD Card Compatibility: Up to 32GB\
Side View: Yes (when side-view mirror is attached)\
Resolution: Camera Resolution/1,280×720 pixels LCD Resolution/480×272 pixels\
Light Source: High-brightness white LED (8-level brightness adjustment possible)\
Power Supply: Main unit/4 AA batteries (included)\
Continuous operating time: Approx. 4 hours\
Dimensions: 88(W)×32(D)×154(H)mm\
Weight: 375g (including batteries)\
Material: Main unit/ABS resin; Camera cable/Copper, aluminum, glass\
Interface: microUSB Type-B output (playback of recorded videos and still images)\
Recording function: Video/Still images\
Recording media: MicroSD card/Supports up to 32GB (sold separately)\
File formats: Still images/JPEG, Video/MP4\
Dustproof/Waterproof Rating: Camera head & cable/IP67 Main unit/Not dustproof or waterproof\
Lens Field of View: 40°\
Cable Type: Main unit storage interlock type\
Lens Focal Length: 30–80mm\
Zoom Function: 1x/1.5x/2x\\ nVideo output system: NTSC system\
Operating temperature range: -10 to 50°C (14 to 122°F)\
Operating humidity range: 15 to 85% (non-condensing)\
Accessories: ・Storage case ・USB cable ・16GB microSD card ・Tip tools (hook, magnet, side-view mirror)\
Applications: ・Inspecting and checking hard-to-see, confined spaces. ・Recording and saving videos and still images. Brand Name: Esco Storage Case, USB Cable, 16GB microSD Card, Tip Tools (Hook, Magnet, Side View Mirror) Quantity: 1 unit Size: 88(W) × 32(D) × 154(H) mm Accessories: ・Storage Case ・ USB cable ・16GB microSD card ・Tip tools (hook, magnet, side-view mirror)
Material: Body/ABS resin Camera cable/Copper・Aluminum・Glass
4550061867396\ nB09S5WNZFB
Shinwa Sokutei φ5.2mm x 1.0m Handy Scope EA750FY-2
(text created at , 2025-11-12)
Features\
Saves videos and still images to a MicroSD card for transfer to a computer or other device.\
Features a zoom function with three magnification levels: 1x, 1.5x, and 2x.\
The camera head is φ5.2mm, allowing inspection in tight spaces. \
The cable is flexible and can be bent freely.\
Equipped with a high-brightness LED light with 8 adjustable brightness levels via a handheld switch.\
Capture images with the high-resolution camera and view them on the large color LCD screen.\
The cable can be wound for storage, allowing for compact storage.\
Transfer data to a computer via the USB Type-B cable.\
※The included batteries are test batteries; please purchase new batteries. \
\
Specifications\
Manufacturer: Shinwa Measuring\
Model Number: 74177\
Camera Head Diameter: φ5.2mm\
Cable Diameter: φ5mm\
Cable Length: 1m\
Monitor Size: 4.3 inches\
microSD Card Compatibility: Up to 32GB\
Side View: Yes (when side-view mirror is attached)\
Resolution: Camera Resolution/1,280×720 pixels LCD Resolution/480×272 pixels\
Light Source: High-brightness white LED (8-level brightness adjustment possible)\
Power Supply: Main unit/4 AA batteries (included)\
Continuous operating time: Approx. 4 hours\
Dimensions: 88(W)×32(D)×154(H)mm\
Weight: 375g (including batteries)\
Material: Main unit/ABS resin; Camera cable/Copper, aluminum, glass\
Interface: microUSB Type-B output (playback of recorded videos and still images)\
Recording function: Video/Still images\
Recording media: MicroSD card/Supports up to 32GB (sold separately)\
File formats: Still images/JPEG, Video/MP4\
Dustproof/Waterproof Rating: Camera head & cable/IP67 Main unit/Not dustproof or waterproof\
Lens Field of View: 40°\
Cable Type: Main unit storage interlock type\
Lens Focal Length: 30–80mm\
Zoom Function: 1x/1.5x/2x\\ nVideo output system: NTSC system\
Operating temperature range: -10 to 50°C (14 to 122°F)\
Operating humidity range: 15 to 85% (non-condensing)\
Accessories: ・Storage case ・USB cable ・16GB microSD card ・Tip tools (hook, magnet, side-view mirror)\
Applications: ・Inspecting and checking hard-to-see, confined spaces. ・Recording and saving videos and still images. Brand Name: Esco Storage Case, USB Cable, 16GB microSD Card, Tip Tools (Hook, Magnet, Side View Mirror) Quantity: 1 unit Size: 88(W) × 32(D) × 154(H) mm Accessories: ・Storage Case ・ USB cable ・16GB microSD card ・Tip tools (hook, magnet, side-view mirror)
Material: Body/ABS resin Camera cable/Copper・Aluminum・Glass
4550061867396\ nB09S5WNZFB
Shinwa Sokutei φ5.2mm x 1.0m Handy Scope EA750FY-2
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
159x48x188 mm
Package
Weight (Approx.):
Weight (Approx.):
580 g
18,748 JPY (Including Tax)
Stock :
6
Scheduled Shipping:
2026-07-13
