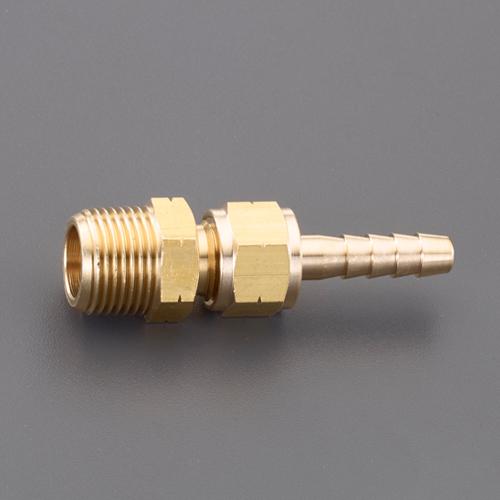

ESCO Male Thread Stem R1/2" x φ14.0mm EA141A-52

4550061977613

B0BWR3C531

EA141A-52

ESCO-Male Thread Stem-R1-xφ14-0mm-EA141A-52

▪️Working Pressure: 3.45MPa or less
▪️Working Temperature: -50~150℃
▪️Overall Length (mm): 73
▪️Thread Diameter (R): 1/2" (PT)
▪️Sleeve Outer Diameter (mm): 14
▪️Sleeve Inner Diameter (mm): 10
▪️Body Hexagon Diagonal (mm): 22
▪️Nut Hexagon Diagonal (mm): 24
▪️Compatible Hose Inner Diameter*: 14mm
▪️Weight (g): 106
▪️Material: C3604 (cd75ppm or less)
▪️RoHS Directive Compliant
▪️*Compatible hose inner diameter may vary slightly depending on hose material.
※※For business use only※※
Brand Name: Esco
Working Pressure: 3.45MPa or less
Working Temperature: -50 to 150°C
Overall Length (mm): 73
Thread Size (R): 1/2" (PT)
Socket Outer Diameter (mm): 14
Socket Inner Diameter (mm): 10
Body Hexagon Diagonal (mm): 22
Nut Hexagon Diagonal (mm): 24
Compatible Hose Inner Diameter*: 14mm
Weight (g): 106
4550061977613
ESCO Male Threaded Stem R1/2" x φ14.0mm EA141A-52
