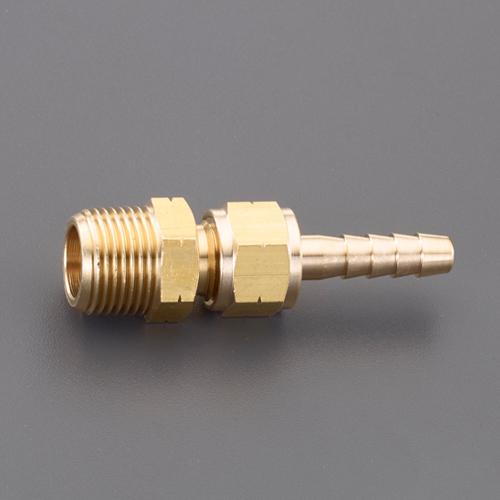

ESCO Male Thread Stem R1/8" x φ7.0mm EA141A-31

4550061978122

B0BWR3JBSY

EA141A-31

ESCO-Male Thread Stem-R1-xφ7-0mm-EA141A-31

▪️Working Pressure: 3.45MPa or less
▪️Working Temperature: -50~150℃
▪️Overall Length (mm): 43
▪️Thread Diameter (R): 1/8" (PT)
▪️Sleeve Outer Diameter (mm): 7
▪️Sleeve Inner Diameter (mm): 4
▪️Body Hexagon Diagonal (mm): 12
▪️Nut Hexagon Diagonal (mm): 12
▪️Compatible Hose Inner Diameter*: 6mm
▪️Weight (g): 20
▪️Material: C3604 (cd75ppm or less)
▪️RoHS Directive Compliant
▪️*Compatible hose inner diameter may vary slightly depending on hose material.
※※For business use only※※
Brand Name: Esco
Working Pressure: 3.45MPa or less
Working Temperature: -50 to 150°C
Overall Length (mm): 43
Thread Size (R): 1/8" (PT)
Sleeve Outer Diameter (mm): 7
Sleeve Inner Diameter (mm): 4
Body Hexagon Diagonal (mm): 12
Nut Hexagon Diagonal (mm): 12
Compatible Hose Inner Diameter*: 6mm
Weight (g): 20
4550061978122
ESCO Male Threaded Stem R1/8" x φ7.0mm EA141A-31
