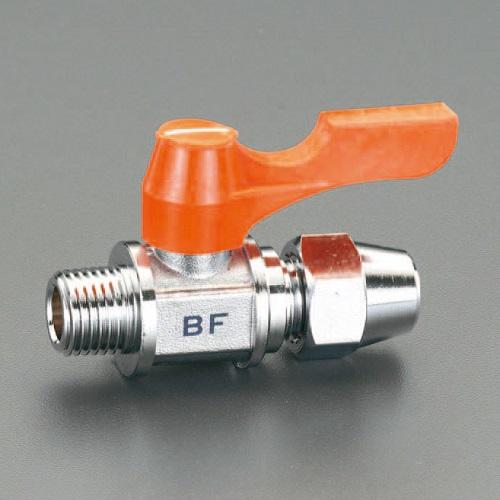

ESCO Ball Valve, Flare Type, Miniature R1/4" x 6.0mm EA425BF-20
JAN
4550061995693
ASIN
B0BWR46GR1
Maker
Model No.
EA425BF-20
Color
Size
Description
ESCO-Ball Valve-Flare Type・Miniature-x6-0mm-EA425BF-20
▪️Material: Brass
▪️Maximum Working Pressure: 0.98MPa or less
▪️Working Fluid: Air・Water・Oil
▪️Temperature: -10~80℃ (Excluding freezing locations)
▪️Mounting Thread Size: R1/4" (PT)
▪️Bore Diameter: 6mm
▪️Compatible Copper Tube: φ6mm
▪️Weight (g): 82
▪️Flare Type for Copper Tubing
▪️Developed as a copper tube fixing fitting with a tapered (PT) external thread on the primary side and a flare connection on the secondary side.
▪️Enables easy connection to copper tubing and annealed aluminum tubing.
※※For Business Use Only※※
Brand Name: Esco
Material: Brass
Maximum Working Pressure: 0.98MPa or less
Fluids: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Mounting Thread Size: R1/4" (PT)
Bore Diameter: 6mm
Compatible Copper Tube: φ6mm
Weight (g): 82
Flare-type for copper tubing
Developed as a copper tubing fixing fitting with a tapered (PT) external thread on the primary side and a flare connection on the secondary side.
4550061995693
ESCO Ball Valve Flare-type Miniature R1/4" x 6.0mm EA425BF-20
(text created at , 2025-05-10)
▪️Material: Brass
▪️Maximum Working Pressure: 0.98MPa or less
▪️Working Fluid: Air・Water・Oil
▪️Temperature: -10~80℃ (Excluding freezing locations)
▪️Mounting Thread Size: R1/4" (PT)
▪️Bore Diameter: 6mm
▪️Compatible Copper Tube: φ6mm
▪️Weight (g): 82
▪️Flare Type for Copper Tubing
▪️Developed as a copper tube fixing fitting with a tapered (PT) external thread on the primary side and a flare connection on the secondary side.
▪️Enables easy connection to copper tubing and annealed aluminum tubing.
※※For Business Use Only※※
Brand Name: Esco
Material: Brass
Maximum Working Pressure: 0.98MPa or less
Fluids: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Mounting Thread Size: R1/4" (PT)
Bore Diameter: 6mm
Compatible Copper Tube: φ6mm
Weight (g): 82
Flare-type for copper tubing
Developed as a copper tubing fixing fitting with a tapered (PT) external thread on the primary side and a flare connection on the secondary side.
4550061995693
ESCO Ball Valve Flare-type Miniature R1/4" x 6.0mm EA425BF-20
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
2,530 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
