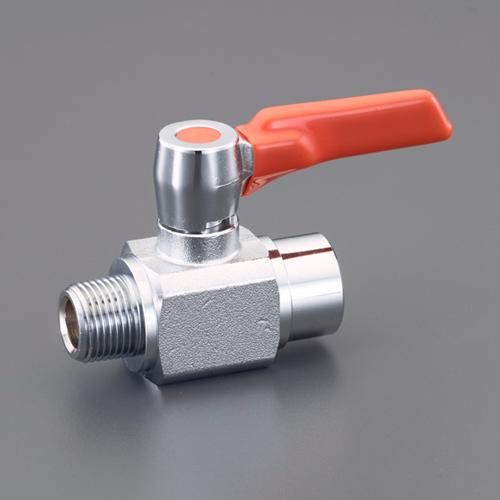

ESCO Ball Valve Brass Rc3/4“ x Rc3/4” EA425BM-266
JAN
4550061998694
ASIN
B0BWR4K4Q4
Maker
Model No.
EA425BM-266
Color
Size
Description
Brand Name: Esco
Mounting Screw (Female): Rc3/4" (PF)
Mounting Screw (Male): R3/4" (PT)
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluid: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Weight (g): 292
This is a piping valve with a tapered (PT) external thread on the primary side and a parallel (PF) internal thread on the secondary side.
Although the secondary side has a parallel thread, piping is possible without leakage by applying sealant.
It is convenient for connecting to bite-type fittings or fittings for other piping methods.
4550061998694
ESCO Ball Valve Brass Rc3/4“ x Rc3/4” EA425BM-266
(text created at , 2025-05-11)
Mounting Screw (Female): Rc3/4" (PF)
Mounting Screw (Male): R3/4" (PT)
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluid: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing locations)
Weight (g): 292
This is a piping valve with a tapered (PT) external thread on the primary side and a parallel (PF) internal thread on the secondary side.
Although the secondary side has a parallel thread, piping is possible without leakage by applying sealant.
It is convenient for connecting to bite-type fittings or fittings for other piping methods.
4550061998694
ESCO Ball Valve Brass Rc3/4“ x Rc3/4” EA425BM-266
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
5,629 JPY (Including Tax)
