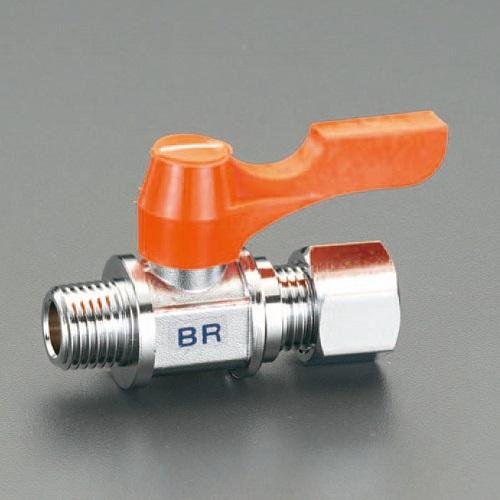

ESCO Mini Ball Valve R3/8" x 10.0mm EA425BR-34
JAN
4550061998700
ASIN
B0BWR56QGN
Maker
Model No.
EA425BR-34
Color
Size
Description
ESCO-Mini Ball Valve-R3-x10-0mm-EA425BR-34
▪️Mounting Screw: R3/8" (PT)
▪️Compatible Copper Tube: φ10mm
▪️Material: Body／C3771BD, Socket／C3604BD, Seat／PTFE, O-Ring／NBR70-1
▪️ Pressure: 0.98MPa or less
▪️ Fluid: Air, Water, Oil
▪️ Temperature: -10~80℃ (excluding freezing points)
▪️ Weight (g): 101
▪️ Straight ring-type for copper tubing
▪️ Developed as a copper tube fixing fitting with a tapered (PT) external thread on the primary side and a ring-type connection on the secondary side.
▪️Enables easy connection of copper tubing and annealed aluminum tubing.
※※For business use only※※
Brand Name: Esco
Mounting Screw: R3/8" (PT)
Compatible Copper Tubing: φ10mm
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluids: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing points)
Weight (g): 101
Ring-type straight connector for copper tubing
Developed as a ring-type copper tube fixing fitting with a tapered (PT) external thread on the primary side and a ring-type connection on the secondary side.
Enables easy connection of copper tubing and annealed aluminum tubing.
4550061998700
ESCO Mini Ball Valve R3/8" x 10.0mm EA425BR-34
(text created at , 2025-05-10)
▪️Mounting Screw: R3/8" (PT)
▪️Compatible Copper Tube: φ10mm
▪️Material: Body／C3771BD, Socket／C3604BD, Seat／PTFE, O-Ring／NBR70-1
▪️ Pressure: 0.98MPa or less
▪️ Fluid: Air, Water, Oil
▪️ Temperature: -10~80℃ (excluding freezing points)
▪️ Weight (g): 101
▪️ Straight ring-type for copper tubing
▪️ Developed as a copper tube fixing fitting with a tapered (PT) external thread on the primary side and a ring-type connection on the secondary side.
▪️Enables easy connection of copper tubing and annealed aluminum tubing.
※※For business use only※※
Brand Name: Esco
Mounting Screw: R3/8" (PT)
Compatible Copper Tubing: φ10mm
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluids: Air, Water, Oil
Temperature: -10 to 80°C (excluding freezing points)
Weight (g): 101
Ring-type straight connector for copper tubing
Developed as a ring-type copper tube fixing fitting with a tapered (PT) external thread on the primary side and a ring-type connection on the secondary side.
Enables easy connection of copper tubing and annealed aluminum tubing.
4550061998700
ESCO Mini Ball Valve R3/8" x 10.0mm EA425BR-34
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
2,530 JPY (Including Tax)
