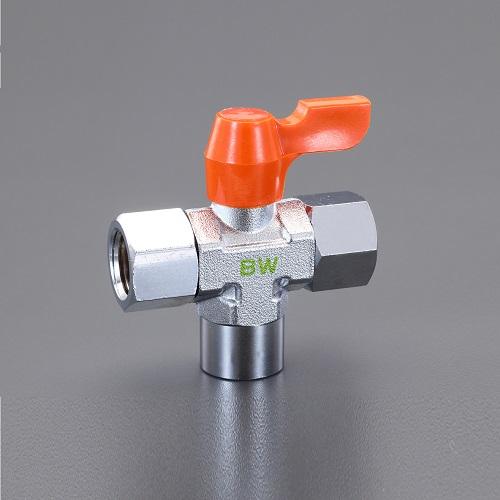

ESCO Mini Ball Valve, 3-Way, Rc1/8", EA425BW-1
JAN
4550061999554
ASIN
B0BWR3ST3L
Maker
Model No.
EA425BW-1
Color
Size
Description
Brand Name: Esco
Mounting Screw: Rc1/8" (PT)
Bore Diameter (mm): 6
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluid for Use: Air, Water, Oil
Operating Temperature: -10 to 80°C
Weight (g): 105
RoHS Compliant
Vertical Three-Way Female Thread Type
This is a piping valve with tapered (PT) female threads on both the primary and secondary sides, featuring a vertical three-way female thread configuration.
4550061999554
ESCO Mini Ball Valve 3-Way Rc1/8" EA425BW-1
(text created at , 2025-05-10)
Mounting Screw: Rc1/8" (PT)
Bore Diameter (mm): 6
Material: Body/C3771BD, Socket/C3604BD, Seat/PTFE, O-Ring/NBR70-1
Pressure: 0.98MPa or less
Fluid for Use: Air, Water, Oil
Operating Temperature: -10 to 80°C
Weight (g): 105
RoHS Compliant
Vertical Three-Way Female Thread Type
This is a piping valve with tapered (PT) female threads on both the primary and secondary sides, featuring a vertical three-way female thread configuration.
4550061999554
ESCO Mini Ball Valve 3-Way Rc1/8" EA425BW-1
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
3,725 JPY (Including Tax)
