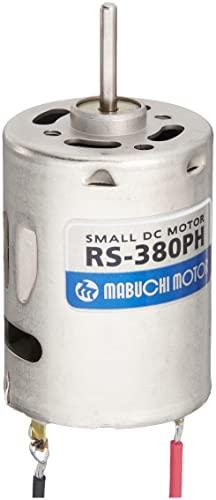

Mabuchi RS-380PH Motor RS380PH44011C
JAN
4580265063829
ASIN
B092JRV5SV
Maker
Model No.
06380
Color
Size
Description
Mabuchi Motor-RS380PH44011C-RS-380PH
A motor suitable for radio-controlled models and other applications requiring strong force.
Operating voltage range: 4.5~9.6V.
Optimal voltage: 7.2V.
Optimal load: 9.8 mN·m (100 gf·cm). No-load speed: 15,100 rpm. Speed at rated voltage and load: 13,400 rpm. Current consumption at rated voltage and load: 2.9A. Shaft diameter: 2.3mm. Weight: 75g. External Dimensions: 37.8 × 27.7 mm.
*A power source is required to operate this product. Batteries, power packs, chargers, etc., are not included.
*This product does not use fuel. Fuel is not included.
*This product does not include paint, adhesive, oil, or grease.
Brand Name: Mabuchi Motor
Material: Metal
A motor suitable for RC models and models requiring strong power.
Model Motor
Country of Origin: China
4580265063829
Mabuchi RS-380PH Motor RS380PH44011C
(text created at , 2025-05-11)
A motor suitable for radio-controlled models and other applications requiring strong force.
Operating voltage range: 4.5~9.6V.
Optimal voltage: 7.2V.
Optimal load: 9.8 mN·m (100 gf·cm). No-load speed: 15,100 rpm. Speed at rated voltage and load: 13,400 rpm. Current consumption at rated voltage and load: 2.9A. Shaft diameter: 2.3mm. Weight: 75g. External Dimensions: 37.8 × 27.7 mm.
*A power source is required to operate this product. Batteries, power packs, chargers, etc., are not included.
*This product does not use fuel. Fuel is not included.
*This product does not include paint, adhesive, oil, or grease.
Brand Name: Mabuchi Motor
Material: Metal
A motor suitable for RC models and models requiring strong power.
Model Motor
Country of Origin: China
4580265063829
Mabuchi RS-380PH Motor RS380PH44011C
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
53x38x147 mm
Package
Weight (Approx.):
Weight (Approx.):
90 g
1,011 JPY (Including Tax)
Stock :
75
Scheduled Shipping:
2026-07-09
Quantity :
Reference Price from Other Stores
