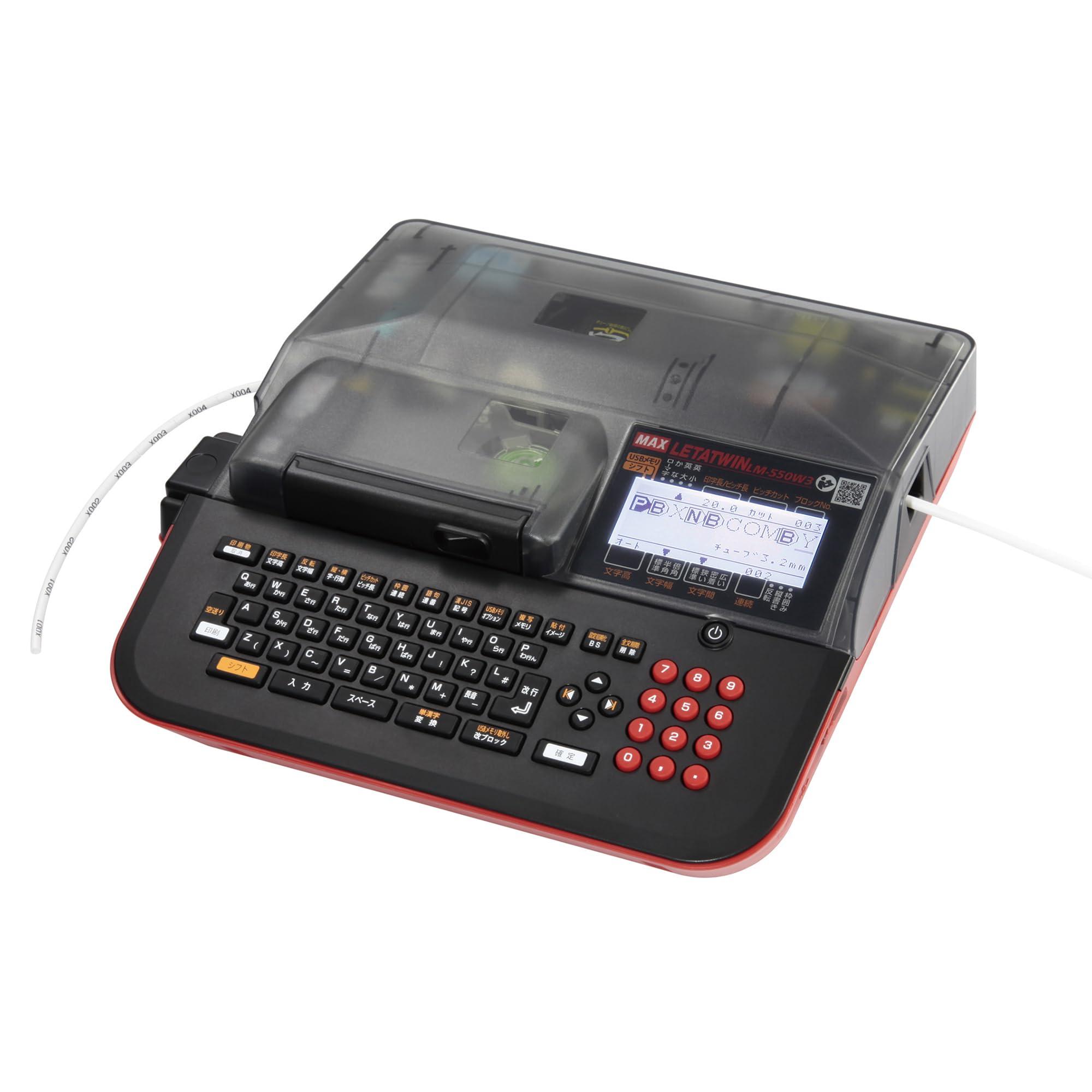

MAX Tube Marker Letter Twin (Main Unit) LM-550W3
JAN
4902870882174
ASIN
B0CP7TMSVJ
Maker
Model No.
48959
Color
Size
Description
Max-Tube Marker-Letter Twin-LM-550W3-LM90237
▪️Quantity (units): 1\
▪️Product Name: LM-550W3\
▪️Model: Nameplate/Device Label Printing/Built-in Tube Warmer/PC Link Model\
▪️Input Methods: Alphanumeric input / Romaji input / Kana scroll input / Kana input\
▪️Maximum Input Characters: Up to 5,000 characters (999 blocks)\
▪️Kanji Conversion: Phrase-based kanji conversion / Single kanji conversion / JIS code input\
▪️Dictionary Function: Approx. 50,000 words\
▪️Character Types: JIS Level 1/Level 2, Other JIS-compliant (Kana, Roman characters, alphanumeric, etc.), Original symbols (Electrical symbols, units, circled alphanumeric)\
▪️Fonts: Max Original Fonts (Standard font/Bold font/Clear font/Square font) “Zero” and “Zero Slash” selectable\
▪️Character size (height): 1.3/2/3/4/6mm; 2.4mm also selectable for alphanumeric characters (and some symbols) only\
▪️Printing method: Thermal transfer method (300dpi)\
▪️Printing Speed: 40mm/sec (Tube Production: 52 pcs/min) (For φ3.2mm ID tube, 20mm pitch, 7-character printing)\
▪️Maximum Print Length: (Single-part printing) Tube 100m, Tape 5m; (Multi-part printing) Tube 100m, Tape 7m\
▪️Display: Backlit graphic LCD (64×160 dot monochrome) (Genuine Tubes) Inner Diameter φ3.2 to φ5.2mm, (Genuine Drum-Type Tubes) Inner Diameter φ2.5 to φ8.0mm, (Commercial Tubes) Inner Diameter φ1.5 to φ8.0mm, (Commercial Heat-Shrink Tubes) Inner Diameter φ2.0 to φ6.4mm\
▪️ Compatible Printing Materials (Tape): Dedicated Tape Cassettes (5/9/12mm width)
▪️Compatible printable materials (nameplates): (Genuine nameplates) 8.5/9.5/10.0/10.7mm (0.5mm thick), (Commercially available nameplates) 8.0/8.5/9.5/10.0/10.7/12.0mm (0.5mm thick)
▪️Compatible print media (device labels): (Genuine device labels) 6×17/6×20/6×23mm (※Attachment sold separately (commercially available) width 5–10mm, length 7.3–40mm, label spacing 0–10mm)\
▪️Tube cutting method: Half cut (automatic), Full cut (manual)\
▪️Internal Memory: Up to 50 files, 5,000 characters/file\
▪️External Memory: USB memory (Security-enabled types cannot be used.)\
▪️Letter Twin PC Editor: Available via download\
▪️Tube Warmer: Built-in\
▪️Interface: USB (A), USB (B)\
▪️ Operating Environment (Temperature): 5–35°C (※5–15°C when using tube warmer)
▪️ Operating Environment (Humidity): 20–80% (※No condensation)
▪️ Power Supply: Dedicated AC Adapter (DC12V) or eneloop Standard (4 AA batteries), 50/60Hz
▪️ Power Consumption: 40W or less (with tube warmer), 30W or less (without tube warmer)
▪️Power Consumption: 40W or less (when using tube warmer), 30W or less (without tube warmer)\
▪️Dimensions (mm): H94 × W295 × D293\
▪️Weight (kg): Approx. 2.4 (excluding AC adapter, consumables, and accessories)\
▪️Accessories: Ink ribbon (LM-IR500B), AC adapter, power cord, thin-diameter tube attachment, ring attachment, nameplate attachment, instruction manual, carrying case\
▪️Operating environment for this unit and included software (computer): DOS/V compatible\
▪️Operating environment for this unit and included software (OS)
▪️Quantity (units): 1\
▪️Product Name: LM-550W3\
▪️Model: Nameplate/Device Label Printing/Built-in Tube Warmer/PC Link Model\
▪️Input Methods: Alphanumeric input / Romaji input / Kana scroll input / Kana input\
▪️Maximum Input Characters: Up to 5,000 characters (999 blocks)\
▪️Kanji Conversion: Phrase-based kanji conversion / Single kanji conversion / JIS code input\
▪️Dictionary Function: Approx. 50,000 words\
▪️Character Types: JIS Level 1/Level 2, Other JIS-compliant (Kana, Roman characters, alphanumeric, etc.), Original symbols (Electrical symbols, units, circled alphanumeric)\
▪️Fonts: Max Original Fonts (Standard font/Bold font/Clear font/Square font) “Zero” and “Zero Slash” selectable\
▪️Character size (height): 1.3/2/3/4/6mm; 2.4mm also selectable for alphanumeric characters (and some symbols) only\
▪️Printing method: Thermal transfer method (300dpi)\
▪️Printing Speed: 40mm/sec (Tube Production: 52 pcs/min) (For φ3.2mm ID tube, 20mm pitch, 7-character printing)\
▪️Maximum Print Length: (Single-part printing) Tube 100m, Tape 5m; (Multi-part printing) Tube 100m, Tape 7m\
▪️Display: Backlit graphic LCD (64×160 dot monochrome) (Genuine Tubes) Inner Diameter φ3.2 to φ5.2mm, (Genuine Drum-Type Tubes) Inner Diameter φ2.5 to φ8.0mm, (Commercial Tubes) Inner Diameter φ1.5 to φ8.0mm, (Commercial Heat-Shrink Tubes) Inner Diameter φ2.0 to φ6.4mm\
▪️ Compatible Printing Materials (Tape): Dedicated Tape Cassettes (5/9/12mm width)
▪️Compatible printable materials (nameplates): (Genuine nameplates) 8.5/9.5/10.0/10.7mm (0.5mm thick), (Commercially available nameplates) 8.0/8.5/9.5/10.0/10.7/12.0mm (0.5mm thick)
▪️Compatible print media (device labels): (Genuine device labels) 6×17/6×20/6×23mm (※Attachment sold separately (commercially available) width 5–10mm, length 7.3–40mm, label spacing 0–10mm)\
▪️Tube cutting method: Half cut (automatic), Full cut (manual)\
▪️Internal Memory: Up to 50 files, 5,000 characters/file\
▪️External Memory: USB memory (Security-enabled types cannot be used.)\
▪️Letter Twin PC Editor: Available via download\
▪️Tube Warmer: Built-in\
▪️Interface: USB (A), USB (B)\
▪️ Operating Environment (Temperature): 5–35°C (※5–15°C when using tube warmer)
▪️ Operating Environment (Humidity): 20–80% (※No condensation)
▪️ Power Supply: Dedicated AC Adapter (DC12V) or eneloop Standard (4 AA batteries), 50/60Hz
▪️ Power Consumption: 40W or less (with tube warmer), 30W or less (without tube warmer)
▪️Power Consumption: 40W or less (when using tube warmer), 30W or less (without tube warmer)\
▪️Dimensions (mm): H94 × W295 × D293\
▪️Weight (kg): Approx. 2.4 (excluding AC adapter, consumables, and accessories)\
▪️Accessories: Ink ribbon (LM-IR500B), AC adapter, power cord, thin-diameter tube attachment, ring attachment, nameplate attachment, instruction manual, carrying case\
▪️Operating environment for this unit and included software (computer): DOS/V compatible\
▪️Operating environment for this unit and included software (OS)
Package
Size (Approx.):
Size (Approx.):
430x150x460 mm
Package
Weight (Approx.):
Weight (Approx.):
2350 g
173,250 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
