Marby/KD-Type Drafting Instrument SK4 Set
JAN
4907951821660
ASIN
B0D86RT433
Maker
Model No.
26917
Color
Size
Description
Uchida Drafting Instruments - SK Type Drafting Instrument - SK Set - 010-0013
Features a Delrin resin double pinion mechanism in the compass center stabilizer.\
Offers excellent wear resistance and maintains high precision.\
The legs open and close more smoothly with use. \
The needle tip features a highly durable black anti-rust coating, making it easy to mark points on white paper.\
The crow's beak-shaped tip can be attached to either the compass or the replacement shaft. \
The connection between the compass/replacement handle and the nib is securely fixed with a taper nut. It will not loosen due to wear.\
The connection diameter is the standard Japanese 3.5mm Φ, compatible with attachments like separately sold sharp nibs. \
\

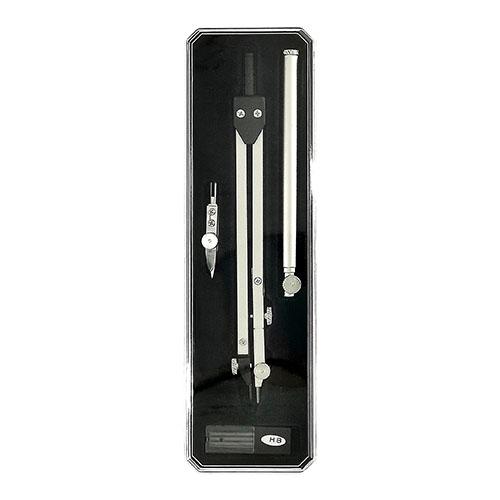

Set Contents: Large Compass with Replaceable Point, Crow's Beak, Replacement Handle, Replacement Lead
Brand Name: UCHIDA
Material: Stainless Steel
Compass: Total Length 150mm, Recommended Radius 10-170mm, Connection Diameter 3.5mmΦ
Crow's Beak: Effective length 32mm・Connection diameter 3.5mmΦ・Side-opening mechanism・Stainless steel
Replacement Handle Size: Total length 102.5mm・Connection diameter 3.5mmΦ・Made of special alloy rolled material
Compass Point: 2mm diameter・Hardness HB・3 points in plastic case
4907951821660\ nB0D86RT433
Marby/KD Type Drafting Instrument SK4 Set
(text created at , 2026-01-20)
Features a Delrin resin double pinion mechanism in the compass center stabilizer.\
Offers excellent wear resistance and maintains high precision.\
The legs open and close more smoothly with use. \
The needle tip features a highly durable black anti-rust coating, making it easy to mark points on white paper.\
The crow's beak-shaped tip can be attached to either the compass or the replacement shaft. \
The connection between the compass/replacement handle and the nib is securely fixed with a taper nut. It will not loosen due to wear.\
The connection diameter is the standard Japanese 3.5mm Φ, compatible with attachments like separately sold sharp nibs. \
\
Set Contents: Large Compass with Replaceable Point, Crow's Beak, Replacement Handle, Replacement Lead
Brand Name: UCHIDA
Material: Stainless Steel
Compass: Total Length 150mm, Recommended Radius 10-170mm, Connection Diameter 3.5mmΦ
Crow's Beak: Effective length 32mm・Connection diameter 3.5mmΦ・Side-opening mechanism・Stainless steel
Replacement Handle Size: Total length 102.5mm・Connection diameter 3.5mmΦ・Made of special alloy rolled material
Compass Point: 2mm diameter・Hardness HB・3 points in plastic case
4907951821660\ nB0D86RT433
Marby/KD Type Drafting Instrument SK4 Set
(text created at , 2026-01-20)
Package
Size (Approx.):
Size (Approx.):
65x19x188 mm
Package
Weight (Approx.):
Weight (Approx.):
110 g
3,933 JPY (Including Tax)
