Kondo Science MD-1 (Neutral Brake Specification) 40452
JAN
4945984404528
ASIN
B07X3RLVBW
Maker
Model No.
40452
Color
Size
Description

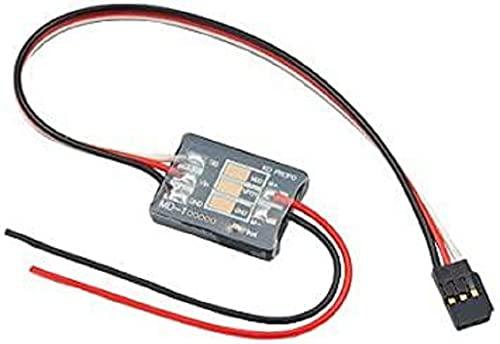

Kondo Science-40452-MD-1-Neutral Brake Specification
This ESC is designed specifically for small motors. It supports brushed motors up to size 370. Its compact, lightweight, and flat design makes it easy to mount on robots; it can be easily secured using commercially available double-sided tape.
The MD-1 lineup includes two variants: the ‘RC Car ESC Specification’ with brake & reverse functions, similar to standard RC ESCs, and the ‘Neutral Brake Specification’ ideal for robotics, DIY projects, and modifications.
The Neutral Brake Specification is recommended for robots, caterpillar construction kits, and similar applications.
Standard ESCs engage the brake when reversing after forward operation. In contrast, the Neutral Brake specification allows direct reverse operation after forward movement. Braking is activated by returning the control to the neutral position. Size: 27.0×20.5×4.4mm Weight: 3.0g Compatible Motors: Small model DC motors up to 370 size (Brushed motors with lock current ≤4A) Control Method: PWM Control Recommended Supply Voltage: 3.0~6.6V (2-4 AA batteries, 3-5 Ni-Cd/Ni-MH cells, 1-2 LiFe cells, 1 LiPO cell)
Drive Frequency: Approx. 4KHz
※Fuel, batteries, and chargers are not included with this product.
Brand Name: Carson
Product Model Number: 500906278
Product Size: 1.1 x 8.7 x 15.5 cm
4945984404528
Kondo Kagaku MD-1 (Neutral Brake Specification) 40452
(text created at , 2025-07-01)
This ESC is designed specifically for small motors. It supports brushed motors up to size 370. Its compact, lightweight, and flat design makes it easy to mount on robots; it can be easily secured using commercially available double-sided tape.
The MD-1 lineup includes two variants: the ‘RC Car ESC Specification’ with brake & reverse functions, similar to standard RC ESCs, and the ‘Neutral Brake Specification’ ideal for robotics, DIY projects, and modifications.
The Neutral Brake Specification is recommended for robots, caterpillar construction kits, and similar applications.
Standard ESCs engage the brake when reversing after forward operation. In contrast, the Neutral Brake specification allows direct reverse operation after forward movement. Braking is activated by returning the control to the neutral position. Size: 27.0×20.5×4.4mm Weight: 3.0g Compatible Motors: Small model DC motors up to 370 size (Brushed motors with lock current ≤4A) Control Method: PWM Control Recommended Supply Voltage: 3.0~6.6V (2-4 AA batteries, 3-5 Ni-Cd/Ni-MH cells, 1-2 LiFe cells, 1 LiPO cell)
Drive Frequency: Approx. 4KHz
※Fuel, batteries, and chargers are not included with this product.
Brand Name: Carson
Product Model Number: 500906278
Product Size: 1.1 x 8.7 x 15.5 cm
4945984404528
Kondo Kagaku MD-1 (Neutral Brake Specification) 40452
(text created at , 2025-07-01)
