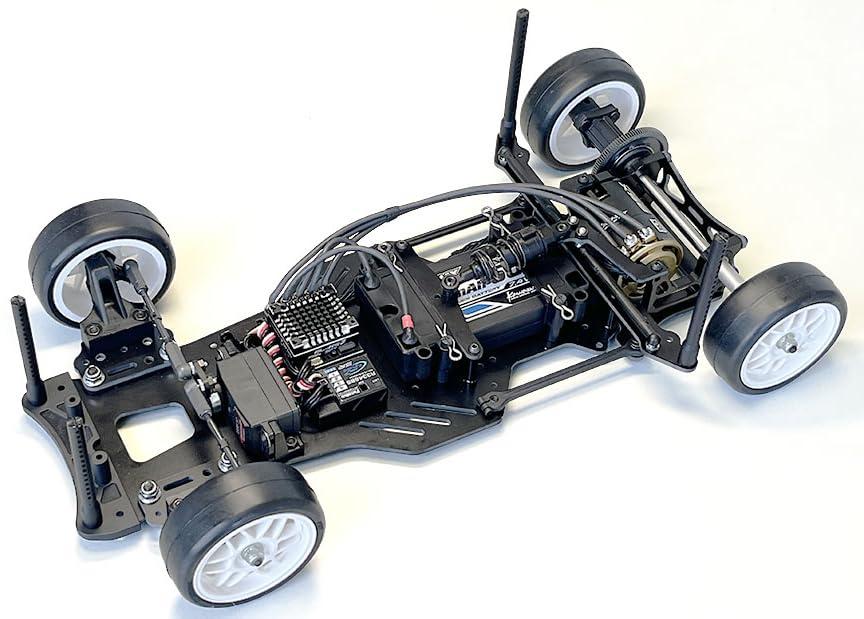

Kawada Mokei M500GT3 Chassis Kit M5103
JAN
4946649045971
ASIN
B0FLV89D6K
Maker
Model No.
M5103
Color
Size
Description
Kawada Model-Kawada-Mokei-M500GT3 Chassis Kit-M5103
Simpler.. Easier to handle.. The new M500GT3 model joins the M500GT series, where you can easily enjoy the nimble running of a direct drive car with TC rubber tires..\\ The front suspension uses a simple Elliott suspension that requires no troublesome settings. The rear suspension uses a link suspension with excellent road-following performance, just like the previous model, but now features a new long-hole type ball seat. This eliminates the need for the tricky link suspension adjustments required until now, allowing anyone to easily assemble it for smooth movement. \
The previous model used glass tape to secure the battery, but the new model comes standard with a resin battery holder, making battery installation easier and more secure. \
Try the M500GT3, which has evolved to be simpler and easier to handle.\
\
FRP chassis, Elliott suspension, resin oil dampers (pitching), tube dampers (roll control), machined aluminum motor mount, quick-adjust ball differential, full ball bearings, hex socket screws. \
1/10 scale, overall length/320mm, overall width/188mm, wheelbase/260mm, fully loaded running weight/1050g (with 1S size Li-Po battery installed), Differential type: Ball differential, Drive type: Direct drive, Suspension type: Front: Elliott suspension, Rear: Link suspension, Motor: 540 type (sold separately). \
2-channel radio set (transmitter, receiver, speed controller, servo, transmitter battery), running battery (thickness 20mm or less*), battery charger, 540 size motor, 1/10 scale touring car tires and wheels, running body (1/10 scale 190mm width), silicone oil (approx. #500, approx. #30 000), ball differential lubricant\
*The standard kit assumes the installation of a battery with a thickness of 20mm or less, but it is possible to install a thicker battery by adjusting the height of the shims. \
1.5mm, 2.0mm, 2.5mm hex wrenches, Phillips screwdrivers (large/small), hobby wrench (5.5mm, 7mm box wrench), nippers, needle-nose pliers, utility knife, φ3mm drill bit, calipers, cleaner spray\
※A power source is required to operate this product. Batteries, cells, chargers, etc., are not included. \
Additionally, the transmitter, RC mechanism, motor, gears, body, tires, inner tubes, wheels, silicone oil, paint, tools, etc., are not included. Additional parts purchase, assembly, and painting are required before driving.\
※This product does not use fuel.\
※Fuel is not included with this product.\
※Paint, adhesive, oil, grease, tools, etc., are not included with this product. Brand Name: Kawada Mokei Product Instruction Manual Material: Plastic Simpler.. Easier to handle.. The new model ‘M500GT3’ joins the M500GT series, featuring TC rubber tires for easy enjoyment of the nimble running of direct drive cars.. n4946649045971
B0FLV89D6K
Kawada Mokei M500GT3 Chassis Kit M5103
(text created at , 2025-10-27)
Simpler.. Easier to handle.. The new M500GT3 model joins the M500GT series, where you can easily enjoy the nimble running of a direct drive car with TC rubber tires..\\ The front suspension uses a simple Elliott suspension that requires no troublesome settings. The rear suspension uses a link suspension with excellent road-following performance, just like the previous model, but now features a new long-hole type ball seat. This eliminates the need for the tricky link suspension adjustments required until now, allowing anyone to easily assemble it for smooth movement. \
The previous model used glass tape to secure the battery, but the new model comes standard with a resin battery holder, making battery installation easier and more secure. \
Try the M500GT3, which has evolved to be simpler and easier to handle.\
\
FRP chassis, Elliott suspension, resin oil dampers (pitching), tube dampers (roll control), machined aluminum motor mount, quick-adjust ball differential, full ball bearings, hex socket screws. \
1/10 scale, overall length/320mm, overall width/188mm, wheelbase/260mm, fully loaded running weight/1050g (with 1S size Li-Po battery installed), Differential type: Ball differential, Drive type: Direct drive, Suspension type: Front: Elliott suspension, Rear: Link suspension, Motor: 540 type (sold separately). \
2-channel radio set (transmitter, receiver, speed controller, servo, transmitter battery), running battery (thickness 20mm or less*), battery charger, 540 size motor, 1/10 scale touring car tires and wheels, running body (1/10 scale 190mm width), silicone oil (approx. #500, approx. #30 000), ball differential lubricant\
*The standard kit assumes the installation of a battery with a thickness of 20mm or less, but it is possible to install a thicker battery by adjusting the height of the shims. \
1.5mm, 2.0mm, 2.5mm hex wrenches, Phillips screwdrivers (large/small), hobby wrench (5.5mm, 7mm box wrench), nippers, needle-nose pliers, utility knife, φ3mm drill bit, calipers, cleaner spray\
※A power source is required to operate this product. Batteries, cells, chargers, etc., are not included. \
Additionally, the transmitter, RC mechanism, motor, gears, body, tires, inner tubes, wheels, silicone oil, paint, tools, etc., are not included. Additional parts purchase, assembly, and painting are required before driving.\
※This product does not use fuel.\
※Fuel is not included with this product.\
※Paint, adhesive, oil, grease, tools, etc., are not included with this product. Brand Name: Kawada Mokei Product Instruction Manual Material: Plastic Simpler.. Easier to handle.. The new model ‘M500GT3’ joins the M500GT series, featuring TC rubber tires for easy enjoyment of the nimble running of direct drive cars.. n4946649045971
B0FLV89D6K
Kawada Mokei M500GT3 Chassis Kit M5103
(text created at , 2025-10-27)
Package
Size (Approx.):
Size (Approx.):
260x60x287 mm
Package
Weight (Approx.):
Weight (Approx.):
560 g
29,700 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-09
