TAMIYA 1/16 RC Tank Series No.48 1/16 RC M4 Sherman (105mm Howitzer Mounted) Mechanical Steering System Electric Radio Control 56048
JAN
4950344560486
ASIN
B0F7GZXTN8
Maker
Model No.
56048/2.4
Color
Size
Description
TAMIYA Mechanical Steering System Electric Radio Control 56048 Product Description This is an assembly kit for an electric radio control tank, faithfully recreating the M4 Sherman 105mm Howitzer variant at 1/16 scale. \
Features a “controlled differential steering” system identical to the real vehicle.\
Drive sprocket, suspension arms, and idler wheel bases are metal.\
The HVSS (Horizontal Volute Spring Suspension System) uses metal coil springs and is fully movable.\
Tracks are made of hard plastic. Link pins and connectors are metal and pre-assembled. \
\
The RC M4 Sherman features a steering mechanism that operates on the same basic principle as the real vehicle's controlled differential steering system.\
Power from the 540 motor is transmitted to the left and right sprockets via the differential unit mounted in the front of the hull.\
Straight-line movement is achieved by rotating both tracks at the same speed, while turning is accomplished by creating a speed differential. \
Steering is achieved by the steering servo, which brakes one side of the brake discs on either side of the differential unit.\
Braking the right side turns right; braking the left side turns left.\
Furthermore, a pair of planetary gearboxes built into the differential unit function as differential gears, slowing one side while speeding up the other. \
Overall Length: 376mm, Overall Width: 183mm, Overall Height: 205mm.\
Includes one 540-class motor for driving.\
Speed Controller = ESC Specification (sold separately). \
Fine Spec 2.4G Electric RC Drive Set, Transmitter requires 4 AA batteries.\

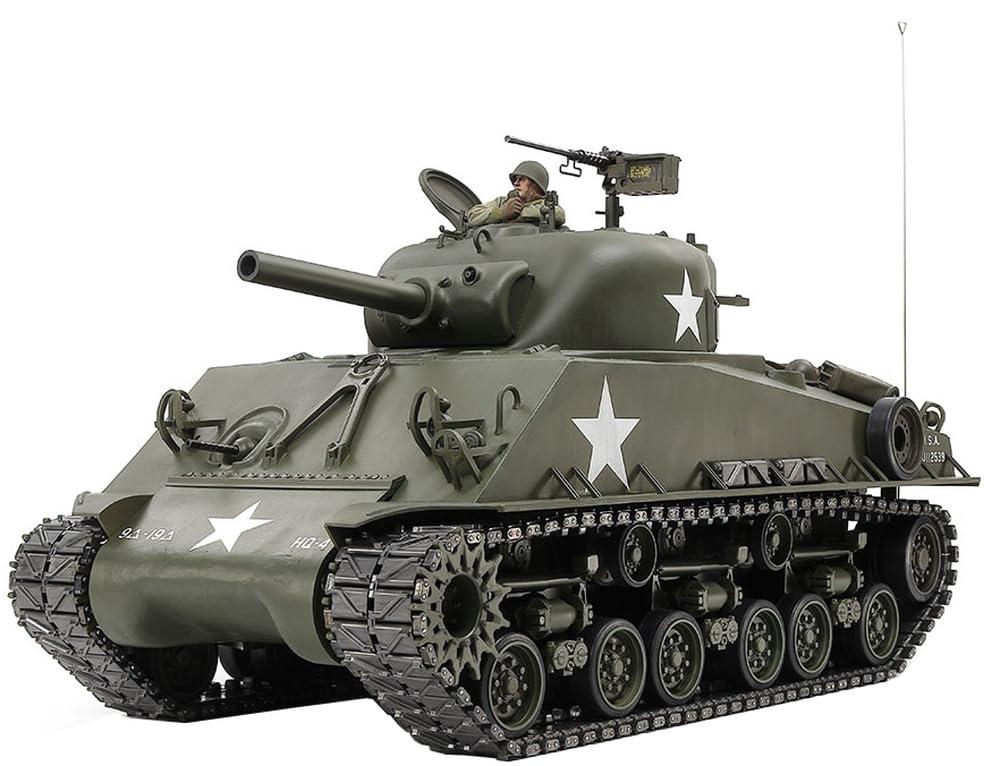

Photo shows assembled and painted kit.\
※A power source is required to operate this product. Batteries, charger, etc. are not included.\
Transmitter, RC mechanism, etc. are also not included. Additional parts purchase, assembly, and painting are required before operation.\
※This product does not use fuel.\
※Fuel is not included with this product.\
※Paint, adhesive, oil, grease, tools, etc., are not included with this product.\
Safety Warning\
Operate only on dedicated RC car circuits or other wide, safe areas. \
Never operate on public roads.\
Do not operate in crowded areas, parks, or near small children.\
Do not operate in confined spaces or indoors.\
Do not operate in places where it may disturb others, such as schools, hospitals, or residential areas. Do not operate at night or early morning. Brand Name: TAMIYA Unisex Product Instruction Manual Material: Plastic This is an assembly kit for an electric radio-controlled tank, a 1/16 scale replica of the M4 Sherman 105mm Howitzer. Features a “controlled differential steering” system, just like the real vehicle. Drive sprocket, suspension arms, and idler wheel base are metal. The HVSS (Horizontal Volute Spring Suspension System) uses metal coil springs and is fully movable.
Features a “controlled differential steering” system identical to the real vehicle.\
Drive sprocket, suspension arms, and idler wheel bases are metal.\
The HVSS (Horizontal Volute Spring Suspension System) uses metal coil springs and is fully movable.\
Tracks are made of hard plastic. Link pins and connectors are metal and pre-assembled. \
\
The RC M4 Sherman features a steering mechanism that operates on the same basic principle as the real vehicle's controlled differential steering system.\
Power from the 540 motor is transmitted to the left and right sprockets via the differential unit mounted in the front of the hull.\
Straight-line movement is achieved by rotating both tracks at the same speed, while turning is accomplished by creating a speed differential. \
Steering is achieved by the steering servo, which brakes one side of the brake discs on either side of the differential unit.\
Braking the right side turns right; braking the left side turns left.\
Furthermore, a pair of planetary gearboxes built into the differential unit function as differential gears, slowing one side while speeding up the other. \
Overall Length: 376mm, Overall Width: 183mm, Overall Height: 205mm.\
Includes one 540-class motor for driving.\
Speed Controller = ESC Specification (sold separately). \
Fine Spec 2.4G Electric RC Drive Set, Transmitter requires 4 AA batteries.\
Photo shows assembled and painted kit.\
※A power source is required to operate this product. Batteries, charger, etc. are not included.\
Transmitter, RC mechanism, etc. are also not included. Additional parts purchase, assembly, and painting are required before operation.\
※This product does not use fuel.\
※Fuel is not included with this product.\
※Paint, adhesive, oil, grease, tools, etc., are not included with this product.\
Safety Warning\
Operate only on dedicated RC car circuits or other wide, safe areas. \
Never operate on public roads.\
Do not operate in crowded areas, parks, or near small children.\
Do not operate in confined spaces or indoors.\
Do not operate in places where it may disturb others, such as schools, hospitals, or residential areas. Do not operate at night or early morning. Brand Name: TAMIYA Unisex Product Instruction Manual Material: Plastic This is an assembly kit for an electric radio-controlled tank, a 1/16 scale replica of the M4 Sherman 105mm Howitzer. Features a “controlled differential steering” system, just like the real vehicle. Drive sprocket, suspension arms, and idler wheel base are metal. The HVSS (Horizontal Volute Spring Suspension System) uses metal coil springs and is fully movable.
Package
Size (Approx.):
Size (Approx.):
258x252x549 mm
Package
Weight (Approx.):
Weight (Approx.):
4110 g
77,000 JPY (Including Tax)
