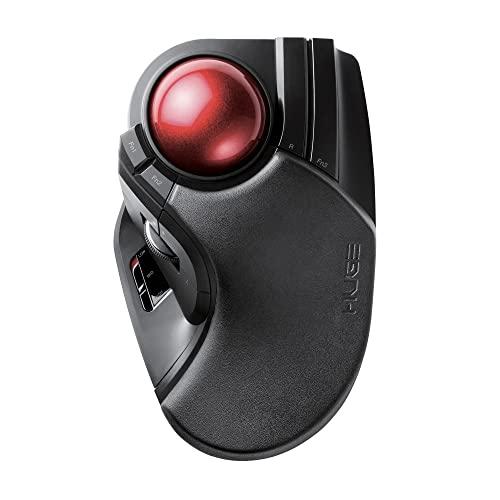

ELECOM Trackball Mouse Wireless Large Ball 8-Button Tilt Function Black M-HT1DRBK

4953103308152

B0735584RM

M-HT1DRBK

ELECOM - Trackball Mouse - Wireless - Tilt Function - M-HT1DRBK


■Interface: USB


■Connector shape: USB (A) male


■Compatible models: Windows OS and macOS devices equipped with a USB port


■Compatible OS: Windows 11/10/RT8.1/8.1/7/Vista/XP, macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12 *OS updates and service pack installation may be required.

■Resolution: 500/1000/1500 counts (switchable)

■Communication method: GFSK

■Radio frequency: 2.4GHz band

■Radio wave range: When used on a magnetic surface (such as an iron desk): 3m, When used on a non-magnetic surface (such as a wooden desk): 10m

■Reading method: Optical sensor

■Emitted light type: Invisible wavelength range

■Number of buttons: 8 (including wheel button)

■Number of wheels: 1

■Ball diameter: Approximately 52mm

■Horizontal scrolling function: Yes

■Receiver storage: Yes

■Continuous operating time: Low energy mode: Approximately 235 hours, High speed mode: Approximately 137 hours

■Continuous standby time: Low energy mode: Approximately 1,851 days, High speed mode: Approximately 1,851 days

■Estimated battery life: Low energy mode: Approximately 534 days, High speed mode: Approximately 325 days *Assuming 5% of the 8 hours of PC operation per day is allocated to mouse operation. Power Source (Main Unit): Two AA alkaline batteries, two AA manganese batteries, or two AA nickel-metal hydride batteries. Rated Voltage (Main Unit): 1.5V. Color: Black. Dimensions (Mouse Main Unit): 114.7mm W x 181.9mm D x 57.2mm H. Size Classification: LL Size. Weight (Mouse Main Unit): Approximately 260g. *Batteries not included. Dimensions (receiver): 13.1mm W x 18.2mm D x 5.0mm H Weight (receiver): Approximately 2g Accessories: Two AA alkaline batteries for operation verification, one user manual VCCI Class B Compliant: Yes Warranty: 6 months The "HUGE" wireless trackball mouse features a large 52mm diameter ball, allowing for greater pointer movement with a single touch. The top of the mouse features a low-resilience palm rest that supports the entire palm, reducing wrist strain during extended PC use. Features a gaming-grade, high-performance optical sensor for detecting trackball movement. We thoroughly analyzed the trackball's color and coating thickness to optimize it for the optical sensor, and completely redesigned the trackball to achieve ultimate pointer tracking performance. The mouse features a large, 2.5mm-diameter artificial ruby support ball, carefully selected for its smooth surface, for superior quality and superior feel. The large support ball also reduces the risk of finger grime and other debris becoming embedded in the support ball, reducing maintenance frequency. The left and right buttons use OMRON switches, known for their durability and reliable click feel. The mouse features "forward" and "back" buttons for efficient web browsing. The tilt wheel allows you to scroll left and right by simply tilting the wheel, making it convenient for navigating long screens like Excel. You can assign your favorite functions to a total of 10 buttons, including eight buttons and two left and right scroll directions. Button function assignments can be changed using the free downloadable "ELECOM Mouse Assistant." The mouse features a speed change switch that allows you to adjust the pointer movement speed to three levels: 500, 1000, and 1500 counts. The ball can be easily removed from the hole on the back, facilitating maintenance of the ball and the internal ball holder. The 2.4GHz wireless band provides a range of approximately 10m on non-magnetic surfaces and approximately 3m on magnetic surfaces such as steel desks (according to our research). The coin-sized micro-receiver can be carried around without being obscured when connected to a laptop's USB port. The receiver can be stored inside the mouse, making it convenient to carry and reducing the risk of losing it. The power switch on the back of the mouse prevents battery drain when not in use. The battery level indicator light notifies you when it's time to replace the battery. Replacement balls are not available. Clean the ball and mouse before use. Dirt can cause the ball to become sluggish, so regular maintenance is recommended. Maintenance: Use a cleaning cloth. ELECOM General Information Center TEL: 0570-084-465 FAX: 0570-050-012 Business Hours: 10:00 AM - 7:00 PM, Open 365 Days a Year Brand Name: ELECOM The large 52mm diameter trackball delivers an unimaginable feel. The HUGE wireless trackball mouse features a palm rest that reduces wrist strain during extended PC work. The HUGE wireless trackball mouse features a large 52mm diameter ball, allowing for greater pointer movement with a single touch. The palm rest, made of low-resilience material on the top of the mouse, allows for support of the entire palm from the wrist, reducing wrist strain during extended PC work. The trackball movement sensor is a gaming-grade, high-performance optical sensor. By thoroughly analyzing the trackball color and coating thickness to suit the optical sensor and completely redesigning the trackball, we achieved the ultimate in pointer tracking performance. (Product ID: 4953103308152) ELECOM Trackball Mouse, Wireless, Large, 8 Buttons, Tilt Function, Black, M-HT1DRBK (text created at , 2025-08-11)

153x68x211 mm

449 g
