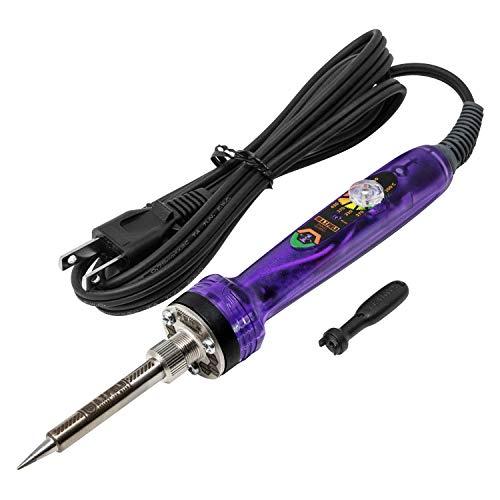

A.T.FIELD Dial-Type Temperature Control Soldering Iron Prototype Model ATF-1001
JAN
4969402888486
ASIN
B08FBZK1R3
Maker
Model No.
ATF-1001
Color
Size
Description
A.T.FIELD-A-T-FIELD-Dial-Type Temperature Control Soldering Iron-ATF-1001
▪️A collaboration between Evangelion's work brand “A.T.FIELD EVANGELION WORK” and Hakko, a soldering iron manufacturer offering tools ranging from professional to hobbyist use. This soldering iron is modeled after the Evangelion Unit-01.
A model that condenses professional-grade performance, including temperature control, into a single grip.
▪️Lightweight and quick to heat, making it ideal for soldering electronic components like ICs, LEDs, and printed circuit boards.
▪️The mechanical clear color, allowing the board to show through, and laser markings on the metal parts express the Evangelion worldview. During use, the unit number logo on the grip illuminates via LED.
▪️Temperature adjustment from 200~500℃ is possible simply by turning the dial (no separate thermostat required). Easily adjust to the optimal temperature for your task. An LED lamp indicates temperature changes (lit during heating, flashing when target temperature is reached, off during cooling).
▪️Ceramic heater type reaches set temperature quickly for speedy work. Excellent insulation makes it suitable for soldering delicate electronic components like ICs. Its short length from grip to tip allows pencil-like handling.
▪️Features a redesigned tip with superior thermal conductivity, achieving powerful heat recovery without increasing power consumption (watts).
▪️Uses a “lead-free tip” that does not contain lead, harmful to the environment and human health. Can also be used with lead-free solder.
▪️Equipped with a lock function that prevents temperature changes by removing the dial. A lock key is included to change the temperature while locked.
▪️ Compatible with over 30 types of replacement tips made by Hakko.
Brand Name: A.T.Field
Lock Key
Material: Grip/Polycarbonate, Metal Parts/Stainless Steel
Size: Approx. 30×233×30mm (With tip attached, excluding power cord)
Weight: Approx. 61g (with tip attached, excluding power cord)
Power: AC 100V 50/60Hz, Power Consumption: 50W, Setting Temperature Range: 200~500℃
Temperature Ripple: ±1℃ no load, Heater: Ceramic Heater
Plug Type: Flat Plug, Included Tip Shape: Length 14.5mm/Tip R0.5 (Manufacturer Part No.: T18-B), Replacement Tips: Hakko T18 Series Tips (Manufacturer Part No.: T18~)
4969402888486
A.T.FIELD Dial-Type Temperature Control Soldering Iron First Model ATF-1001
(text created at , 2025-05-10)
▪️A collaboration between Evangelion's work brand “A.T.FIELD EVANGELION WORK” and Hakko, a soldering iron manufacturer offering tools ranging from professional to hobbyist use. This soldering iron is modeled after the Evangelion Unit-01.
A model that condenses professional-grade performance, including temperature control, into a single grip.
▪️Lightweight and quick to heat, making it ideal for soldering electronic components like ICs, LEDs, and printed circuit boards.
▪️The mechanical clear color, allowing the board to show through, and laser markings on the metal parts express the Evangelion worldview. During use, the unit number logo on the grip illuminates via LED.
▪️Temperature adjustment from 200~500℃ is possible simply by turning the dial (no separate thermostat required). Easily adjust to the optimal temperature for your task. An LED lamp indicates temperature changes (lit during heating, flashing when target temperature is reached, off during cooling).
▪️Ceramic heater type reaches set temperature quickly for speedy work. Excellent insulation makes it suitable for soldering delicate electronic components like ICs. Its short length from grip to tip allows pencil-like handling.
▪️Features a redesigned tip with superior thermal conductivity, achieving powerful heat recovery without increasing power consumption (watts).
▪️Uses a “lead-free tip” that does not contain lead, harmful to the environment and human health. Can also be used with lead-free solder.
▪️Equipped with a lock function that prevents temperature changes by removing the dial. A lock key is included to change the temperature while locked.
▪️ Compatible with over 30 types of replacement tips made by Hakko.
Brand Name: A.T.Field
Lock Key
Material: Grip/Polycarbonate, Metal Parts/Stainless Steel
Size: Approx. 30×233×30mm (With tip attached, excluding power cord)
Weight: Approx. 61g (with tip attached, excluding power cord)
Power: AC 100V 50/60Hz, Power Consumption: 50W, Setting Temperature Range: 200~500℃
Temperature Ripple: ±1℃ no load, Heater: Ceramic Heater
Plug Type: Flat Plug, Included Tip Shape: Length 14.5mm/Tip R0.5 (Manufacturer Part No.: T18-B), Replacement Tips: Hakko T18 Series Tips (Manufacturer Part No.: T18~)
4969402888486
A.T.FIELD Dial-Type Temperature Control Soldering Iron First Model ATF-1001
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
106x32x266 mm
Package
Weight (Approx.):
Weight (Approx.):
180 g
8,088 JPY (Including Tax)
