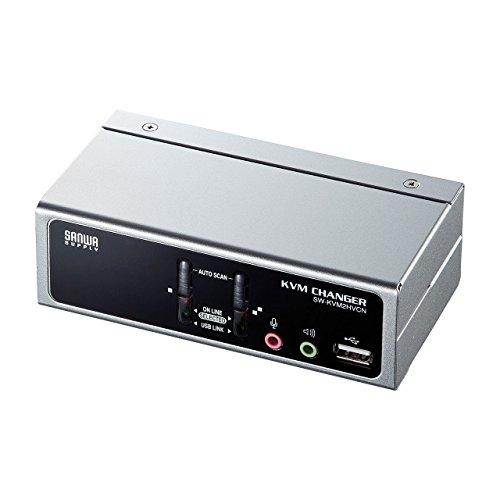

Sanwa Supply USB/PS/2 Console Compatible PC Auto Switch (2:1) SW-KVM2HVCN
JAN
4969887593288
ASIN
B013SYUWDY
Maker
Model No.
SW-KVM2HVCN
Color
Size
Description
Sanwa Supply - SW-KVM2HVCN - USB/PS/2 Dual-Interface Computer Auto-Switching Unit
・Allows switching between two computers using a single set of keyboard, mouse, and display.\
・The included USB-PS/2 conversion cable enables compatibility with both USB and PS/2 keyboards and mice. Cross-interface connections (e.g., USB mouse with PS/2 keyboard) are also possible.\
・Equipped with a 2-port USB 2.0 hub, enabling sharing of USB printers and other devices between multiple computers. Individual port switching is also possible, allowing you to operate USB devices on one computer while working on another.\
・Features display emulation (EDID readout circuitry). It reads the display's EDID and stores it in the KVM. By responding to each port during DDC communication, it prevents issues like screen resolution or size changes occurring during a hot boot.\
・Speaker and microphone sharing is also possible. Individual switching is supported, allowing separate switching of the console device and the speakers/microphone. You can play music from another computer or verbally check work status while working on one PC.\
・Speaker and microphone ports are also located on the front panel. Easy connection and disconnection make it convenient for IP phone use like Skype.\
・Keyboard port emulation enables full startup without needing to switch ports during reboot.\
・Equipped with mouse emulation functionality. It supports a wide range of mice with multi-function buttons and multi-function capabilities.\
・It features an OSD (On-Screen Display) function, allowing easy individual switching of each device, total switching, and confirmation of the switching status.\
・It supports resolutions up to 2048×1536. It also supports wide screen resolutions.\
・It is compatible with Windows OS, Mac OS, and Linux. Can be used in environments with multiple operating systems.\
・Supports three switching methods: hotkeys, physical switch buttons, and OSD switching.\
・Can also be used with only a mouse and keyboard connected. (The display connects directly to the computer.)\
・Features an all-in-one connector that combines keyboard, mouse, and display signals into one. Connections are simple, and cables can be neatly organized.\
・No software installation is required; all functions are available immediately upon connection.\
・Equipped with an auto-scan function that can monitor all connected computers.\
※Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported. \
\
・Supported Resolution: Displays up to 2048×1536 dots (DDC2B compatible)\
・Interfaces:\
All-in-One Connector/SPHD 15-pin (female) ×2\
※Integrated VGA/USB signal lines\
Speaker/3.5mm stereo mini jack ×2\\ Microphone/3.5mm stereo mini jack ×2\
Display/Mini D-Sub (HD) 15-pin female ×1\
Keyboard/USB A connector female ×1\
Mouse/USB A connector female ×1\
Speaker/3.5mm stereo mini jack ×2\
Microphone/3.5mm stereo mini jack ×2
・Allows switching between two computers using a single set of keyboard, mouse, and display.\
・The included USB-PS/2 conversion cable enables compatibility with both USB and PS/2 keyboards and mice. Cross-interface connections (e.g., USB mouse with PS/2 keyboard) are also possible.\
・Equipped with a 2-port USB 2.0 hub, enabling sharing of USB printers and other devices between multiple computers. Individual port switching is also possible, allowing you to operate USB devices on one computer while working on another.\
・Features display emulation (EDID readout circuitry). It reads the display's EDID and stores it in the KVM. By responding to each port during DDC communication, it prevents issues like screen resolution or size changes occurring during a hot boot.\
・Speaker and microphone sharing is also possible. Individual switching is supported, allowing separate switching of the console device and the speakers/microphone. You can play music from another computer or verbally check work status while working on one PC.\
・Speaker and microphone ports are also located on the front panel. Easy connection and disconnection make it convenient for IP phone use like Skype.\
・Keyboard port emulation enables full startup without needing to switch ports during reboot.\
・Equipped with mouse emulation functionality. It supports a wide range of mice with multi-function buttons and multi-function capabilities.\
・It features an OSD (On-Screen Display) function, allowing easy individual switching of each device, total switching, and confirmation of the switching status.\
・It supports resolutions up to 2048×1536. It also supports wide screen resolutions.\
・It is compatible with Windows OS, Mac OS, and Linux. Can be used in environments with multiple operating systems.\
・Supports three switching methods: hotkeys, physical switch buttons, and OSD switching.\
・Can also be used with only a mouse and keyboard connected. (The display connects directly to the computer.)\
・Features an all-in-one connector that combines keyboard, mouse, and display signals into one. Connections are simple, and cables can be neatly organized.\
・No software installation is required; all functions are available immediately upon connection.\
・Equipped with an auto-scan function that can monitor all connected computers.
※Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported. \
\
・Supported Resolution: Displays up to 2048×1536 dots (DDC2B compatible)\
・Interfaces:\
All-in-One Connector/SPHD 15-pin (female) ×2\
※Integrated VGA/USB signal lines\
Speaker/3.5mm stereo mini jack ×2\\ Microphone/3.5mm stereo mini jack ×2\
Display/Mini D-Sub (HD) 15-pin female ×1\
Keyboard/USB A connector female ×1\
Mouse/USB A connector female ×1\
Speaker/3.5mm stereo mini jack ×2\
Microphone/3.5mm stereo mini jack ×2
Package
Size (Approx.):
Size (Approx.):
179x67x287 mm
Package
Weight (Approx.):
Weight (Approx.):
1110 g
32,974 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-21
Quantity :
Reference Price from Other Stores
