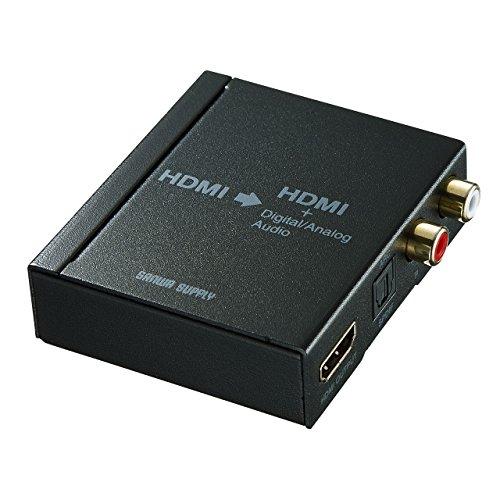

Sanwa Supply HDMI Signal Audio Splitter (Optical Digital/Analog Compatible) VGA-CVHD5
JAN
4969887593554
ASIN
B06XGT4WMR
Maker
Model No.
VGA-CVHD5
Color
Size
Description
Sanwa Supply - HDMI Signal Audio Separator - Optical Digital to Analog Compatible - VGA-CVHD5 Product Description
・This HDMI signal audio separator separates the audio signal from the HDMI signal from a computer or HDMI video device and converts it to an optical digital signal and analog audio signal for output.
・Enables you to enjoy powerful sound by separating the HDMI audio signal and outputting it to an AV amplifier or speakers while outputting the original HDMI signal (video and audio) directly to a display or projector.
・Ideal for use with displays without audio output and wanting to output audio through external speakers.
・Supports optical digital (square) output, allowing you to output high-quality digital audio to an AV amplifier or other device.
・Supports ARC mode, allowing you to output TV broadcast audio through this product to an AV amplifier or speakers.
・Supports resolutions up to 4K2K (4096 x 2160) at 30Hz, allowing you to pass-through beautiful, high-definition HDMI signals. Compatible with video equipment, home game consoles, and PCs with HDMI output terminals. HDMI side: TVs, projectors, and PC displays with HDMI input terminals. Audio side: Devices with optical digital (square) input, devices with analog audio input.
■ Interface Input: 1 x HDMI Type A (19-pin) female. Output: 1 x HDMI Type A (19-pin) female, 1 x Toslink, 1 x RCA pin jack (red and white).
■ HDCP: HDCP 1.4 compliant.
■ Supported resolutions: 4K2K (4096 x 2160) @ 30Hz. Main supported resolutions: 4096 x 2160 @ 30Hz (4:4:4), 3840 x 2160 @ 30Hz (4:4:4), 3840 x 2160 @ 30Hz. (4:2:2)
1920×1200@60Hz
1920×1080@60Hz
■Supported audio formats:
HDMI input/output:Dolby Digital 2.0ch/5.1ch, Dolby Digital Plus 2.0ch/5.1ch/7.1ch
Dolby TrueHD 2.0ch/5.1ch/7.1ch, DTS 5.1ch, DTS HD 5.1ch, LPCM 2ch (maximum 24-bit 192KHz)
Optical digital output:Dolby Digital 2.0ch/5.1ch, DTS 5.1ch, LPCM 2ch (maximum 24-bit 192KHz)
Analog output:LPCM 2ch (maximum 24-bit 48KHz)
■Device-to-device control (CEC):Supported *Operation is not guaranteed with all devices. Power Consumption: 1W Operating Temperature/Humidity: 0-40°C, 80% or less (non-condensing) Storage Temperature/Humidity: -20-60°C, 80% or less (non-condensing) Material: Steel Dimensions: 60mm W x 70mm D x 20mm H Weight: Approx. 125g Accessories: AC Adapter x 1, Instruction Manual Note: Operation with all HDMI and AV devices is not guaranteed. Disclaimer: Please Read Before Use Brand: Sanwa Supply Material: Steel Optical digital output (square) is possible, allowing high-quality digital audio to be output to an AV amplifier, etc. Input: 1 x HDMI Type-A (19-pin) female; Output: 1 x HDMI Type-A (19-pin) female, 1 x Toslink, 1 x RCA pin jack (red and white): 4K2K (4096 x 2160) @ 30Hz. Supports ARC mode, allowing you to output TV broadcast audio to an AV amplifier or speakers via this product. While outputting the original HDMI signal (video and audio) to a display or projector, you can separate the HDMI audio and output it to an AV amplifier or speakers for powerful sound. This is also ideal for use with displays without audio output and for outputting audio through external speakers. Supports resolutions up to 4K2K (4096 x 2160) @ 30Hz, allowing for beautiful, high-definition HDMI signal pass-through. This HDMI signal audio separator separates the audio signal from the HDMI signal (video and audio) and converts it to optical digital output or analog audio output. Device-to-Device Control (CEC) is supported. *Operation is not guaranteed with all devices. 4969887593554 Sanwa Supply HDMI Signal Audio Separator (Optical Digital/Analog Compatible) VGA-CVHD5 (text created at , 2025-08-11)
・This HDMI signal audio separator separates the audio signal from the HDMI signal from a computer or HDMI video device and converts it to an optical digital signal and analog audio signal for output.
・Enables you to enjoy powerful sound by separating the HDMI audio signal and outputting it to an AV amplifier or speakers while outputting the original HDMI signal (video and audio) directly to a display or projector.
・Ideal for use with displays without audio output and wanting to output audio through external speakers.
・Supports optical digital (square) output, allowing you to output high-quality digital audio to an AV amplifier or other device.
・Supports ARC mode, allowing you to output TV broadcast audio through this product to an AV amplifier or speakers.
・Supports resolutions up to 4K2K (4096 x 2160) at 30Hz, allowing you to pass-through beautiful, high-definition HDMI signals. Compatible with video equipment, home game consoles, and PCs with HDMI output terminals. HDMI side: TVs, projectors, and PC displays with HDMI input terminals. Audio side: Devices with optical digital (square) input, devices with analog audio input.
■ Interface Input: 1 x HDMI Type A (19-pin) female. Output: 1 x HDMI Type A (19-pin) female, 1 x Toslink, 1 x RCA pin jack (red and white).
■ HDCP: HDCP 1.4 compliant.
■ Supported resolutions: 4K2K (4096 x 2160) @ 30Hz. Main supported resolutions: 4096 x 2160 @ 30Hz (4:4:4), 3840 x 2160 @ 30Hz (4:4:4), 3840 x 2160 @ 30Hz. (4:2:2)
1920×1200@60Hz
1920×1080@60Hz
■Supported audio formats:
HDMI input/output:Dolby Digital 2.0ch/5.1ch, Dolby Digital Plus 2.0ch/5.1ch/7.1ch
Dolby TrueHD 2.0ch/5.1ch/7.1ch, DTS 5.1ch, DTS HD 5.1ch, LPCM 2ch (maximum 24-bit 192KHz)
Optical digital output:Dolby Digital 2.0ch/5.1ch, DTS 5.1ch, LPCM 2ch (maximum 24-bit 192KHz)
Analog output:LPCM 2ch (maximum 24-bit 48KHz)
■Device-to-device control (CEC):Supported *Operation is not guaranteed with all devices. Power Consumption: 1W Operating Temperature/Humidity: 0-40°C, 80% or less (non-condensing) Storage Temperature/Humidity: -20-60°C, 80% or less (non-condensing) Material: Steel Dimensions: 60mm W x 70mm D x 20mm H Weight: Approx. 125g Accessories: AC Adapter x 1, Instruction Manual Note: Operation with all HDMI and AV devices is not guaranteed. Disclaimer: Please Read Before Use Brand: Sanwa Supply Material: Steel Optical digital output (square) is possible, allowing high-quality digital audio to be output to an AV amplifier, etc. Input: 1 x HDMI Type-A (19-pin) female; Output: 1 x HDMI Type-A (19-pin) female, 1 x Toslink, 1 x RCA pin jack (red and white): 4K2K (4096 x 2160) @ 30Hz. Supports ARC mode, allowing you to output TV broadcast audio to an AV amplifier or speakers via this product. While outputting the original HDMI signal (video and audio) to a display or projector, you can separate the HDMI audio and output it to an AV amplifier or speakers for powerful sound. This is also ideal for use with displays without audio output and for outputting audio through external speakers. Supports resolutions up to 4K2K (4096 x 2160) @ 30Hz, allowing for beautiful, high-definition HDMI signal pass-through. This HDMI signal audio separator separates the audio signal from the HDMI signal (video and audio) and converts it to optical digital output or analog audio output. Device-to-Device Control (CEC) is supported. *Operation is not guaranteed with all devices. 4969887593554 Sanwa Supply HDMI Signal Audio Separator (Optical Digital/Analog Compatible) VGA-CVHD5 (text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
112x44x194 mm
Package
Weight (Approx.):
Weight (Approx.):
270 g
11,028 JPY (Including Tax)
