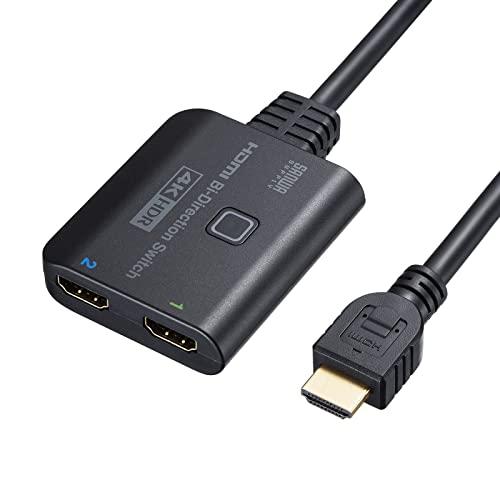

Sanwa Supply 4K/HDR/HDCP 2.2 Compatible HDMI Switch (2 Inputs/1 Output or 1 Input/2 Outputs) SW-HDR21BD

4969887595299

B0BTLVDYLV

SW-HDR21BD

Sanwa Supply SW-HDR21BD - 4K, HDR, and HDCP2.2 Compatible HDMI Switch (2 Inputs/1 Output or 1 Input/2 Outputs) This bidirectional HDMI switch can switch two HDMI devices to output to one TV, or one HDMI device to output to two TVs or projectors. *No split output function. (Simultaneous split output not available.) *Supports 4K/4096x2160 (60Hz, 4:4:4, 24-bit (max)), enabling beautiful, high-definition HDMI output for games and other applications. (4K/60Hz output: Only when the cable length between the switch and monitor is 1.5m or less.) (4K/30Hz output: Only when the cable length between the switch and monitor is 4m or less.) *Supports high-brightness HDR (High Dynamic Range) and HDCP2.2. *Fully manual switch, switching is performed with just the touch of a button. Highly visible LED indicators let you know at a glance which device is selected. Supports Dolby True HD and DTS HD Master Audio. Compatible with PlayStation 5®. Notes: PlayStation, PLAYSTATION, PS5, and PS4 are registered trademarks of Sony Interactive Entertainment Inc. Nintendo Switch is a trademark or registered trademark of Nintendo. Compatible with all HDMI devices is not guaranteed. To play 4K/HDR video, all equipment, cables, and software must be 4K/HDR compatible. Screen Display Time When Switching Ports: It usually takes 3 to 5 seconds for the image to appear when switching ports. This is not a symptom of this product, but rather the time it takes for the HDMI device (such as a recorder) to recognize the display and begin video output, and is dependent on the performance of the HDMI device. The port switching on this product is completed the instant the switch button is pressed.

■Interface: Input/Output: HDMI Type A (19PIN) Female x 2 nInput/Output: HDMI Type A (19PIN) Male x 1 n

■Switching: HDMI Input 2/HDMI Output 1 or HDMI Input 1/HDMI Output 2 n

■Switching Method: Main Unit Switching Button n

■HDMI Standard: HDMI Ver. 2.0b n

■HDCP: HDCP 1.4, HDCP 2.2 n

■Data Rate: 18Gbit/s (Max.) n

■Pixel Clock: 600MHz (Max.) n

■Maximum Resolution: 4K/60Hz n

■Main Supported Resolutions: 4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) *Only 8-bit color depth is supported when outputting 4K/4096x2160 (60Hz, 4:4:4). 3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) 1920x1080p (60/50/30/24Hz) 1920x1080i (60/50/30/24Hz) 1280x720p (60/50Hz) 640x480p (60/50Hz) *Depending on the resolution of the connected TV or monitor. HDR: Supported Supported Audio Formats: LPCM 2/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS Input DDC Signal: 5V Device-to-Device Control (CEC): Supported *Operation is not guaranteed with all devices.

■ Cable Length: Approx. 50cm

■ Power Consumption (Maximum): 5W

■ Operating Temperature/Humidity: 0°C to 50°C, 80% or less (non-condensing)

■ Storage Temperature/Humidity: -20°C to 60°C, 80% or less (non-condensing)

■ Product Dimensions: W65 x D54.5 x H20.5mm

■ Weight: Approx. 92g

■ Package Contents: Main unit, instruction manual, warranty card Brand Name: Sanwa Supply This bidirectional HDMI switch can switch two HDMI devices to output to one TV, or one HDMI device to output to two TVs or projectors. *This product does not have a splitter output function. *This product cannot split two outputs simultaneously. It supports 4K/4096x2160 (60Hz, 4:4:4, 24-bit (max)), enabling beautiful, high-definition HDMI signal output for games and other applications. (4K/60Hz output/Only when the cable length between the switch and monitor is 1.5m or less) (4K/30Hz output/Only when the cable length between the switch and monitor is 4m or less) Supports high brightness HDR (High Dynamic Range) and HDCP2.2. This is a fully manual switch that switches with just a button. The highly visible LED display lets you see which device is selected at a glance. 4969887595299 Sanwa Supply 4K, HDR, HDCP2.2 Compatible HDMI Switch (2 Inputs, 1 Output or 1 Input, 2 Outputs) SW-HDR21BD (text created at , 2025-05-11)

142x32x198 mm

170 g
