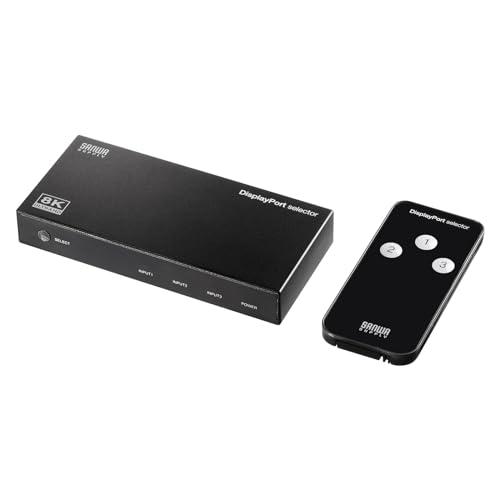

Sanwa Supply 3-Input 1-Output DisplayPort Switch 8K/30Hz Compatible with Remote Control SW-DP31R
JAN
4969887595459
ASIN
B0CKKTK5CY
Maker
Model No.
SW-DP31R
Color
Size
Description
Sanwa Supply - Sanwa Supply - SW-DP31R - 3 Input 1 Output DisplayPort Switch (8K
▪️This DisplayPort switch can switch the DisplayPort output (video and audio) from three computers to one DisplayPort-equipped display.
▪️It supports resolutions up to 7680x4320 (8K/30Hz), outputting beautiful, high-definition DisplayPort signals.
*Does not support HDR (high brightness).
▪️It comes with a remote control, allowing you to easily switch from a distance.
▪️Switching can also be performed using the buttons on the main unit, and this is a fully manual switching type that does not automatically switch when other DisplayPort devices are started or shut down.
*Depending on the DisplayPort device, it may be necessary to recognize the display at start-up. In that case, you will need to switch ports before starting up the DisplayPort device.
▪️All cables can be arranged in the same direction, allowing for a neat installation.
▪️This product is HDCP1.4 (High-bandwidth Digital Content Protection) compliant.
▪️All DisplayPort terminals are gold-plated. This makes it resistant to rust and prevents signal degradation.
▪️Dolby True Supports HD and DTS HD Master Audio.
【Caution】
*We recommend connecting and using a USB power supply cable for stable operation. This product is bus-powered, meaning it runs on power supplied from a DisplayPort device. However, symptoms such as the screen temporarily going dark or the video cutting out may occur when starting up the device. In such cases, connecting a USB power supply cable and providing a stable power supply to this product may resolve the issue.
【About the screen display time when switching ports】
When switching ports, it usually takes about 3 to 5 seconds for the video to appear. This is not a symptom of this product, but a D This is the time it takes for a DisplayPort device to recognize the display and begin video output, and is dependent on the performance of the DisplayPort device. This product completes port switching the moment you press the switch button. Supported resolutions: 8K/7680x4320 (30Hz) 3840x2160 (144Hz, 4:4:4) 3840x2160 (120Hz, 4:4:4) 3840x2160 (60Hz, 4:4:4) 3840x2160 (30Hz, 4:4:4) 2560x1440 (60Hz) 2048x1080 (60Hz) 192 0x1200 (60Hz)
1920x1080 (60Hz)
1680x1050 (60Hz)
1600x1200 (60Hz)
1280x1024 (60Hz)
1280x800 (60Hz)
1024x768 (60Hz)
800x600 (60Hz)
■Maximum resolution: 8K/7680x4320 (30Hz)
■Interface:
Input: DisplayPort female x 3
Output: DisplayPort female x 1
■Input DDC signal: 5V
■Data rate: 8.1Gbps
■Pixel clock: 810MHz (maximum)
■HDCP: HDCP 1.4: The display must also support HDCP. DisplayPort standard: DisplayPort 1.4 compatible Switching method: Main unit switch button, remote control Power consumption: 1.2W (max) Environmental conditions: Operating temperature: 0-50°C, humidity 80% or less (no condensation) Storage temperature: -20-60°C, humidity 80% or less (no condensation) Dimensions: W116 x D54.6 x H17.8mm Weight: Approx. 101g Package contents: Main unit, remote control (includes CR2025 battery), USB cable (for power supply), instruction manual, warranty card This Sanwa Supply DisplayPort switch allows you to switch the DisplayPort output (video and audio) from three computers to a single DisplayPort-equipped display. It supports resolutions up to 7680x4320 (8K/30Hz), outputting beautiful, high-definition DisplayPort signals. *Does not support HDR (high brightness). It comes with a remote control, allowing for easy switching even from a distance. Switching can also be performed using the buttons on the unit, and it is a fully manual switching type that does not automatically switch when other DisplayPort devices are started or shut down. *Some DisplayPort devices may need to recognize the display upon startup. In this case, you will need to switch ports before starting the DisplayPort device.
▪️This DisplayPort switch can switch the DisplayPort output (video and audio) from three computers to one DisplayPort-equipped display.
▪️It supports resolutions up to 7680x4320 (8K/30Hz), outputting beautiful, high-definition DisplayPort signals.
*Does not support HDR (high brightness).
▪️It comes with a remote control, allowing you to easily switch from a distance.
▪️Switching can also be performed using the buttons on the main unit, and this is a fully manual switching type that does not automatically switch when other DisplayPort devices are started or shut down.
*Depending on the DisplayPort device, it may be necessary to recognize the display at start-up. In that case, you will need to switch ports before starting up the DisplayPort device.
▪️All cables can be arranged in the same direction, allowing for a neat installation.
▪️This product is HDCP1.4 (High-bandwidth Digital Content Protection) compliant.
▪️All DisplayPort terminals are gold-plated. This makes it resistant to rust and prevents signal degradation.
▪️Dolby True Supports HD and DTS HD Master Audio.
【Caution】
*We recommend connecting and using a USB power supply cable for stable operation. This product is bus-powered, meaning it runs on power supplied from a DisplayPort device. However, symptoms such as the screen temporarily going dark or the video cutting out may occur when starting up the device. In such cases, connecting a USB power supply cable and providing a stable power supply to this product may resolve the issue.
【About the screen display time when switching ports】
When switching ports, it usually takes about 3 to 5 seconds for the video to appear. This is not a symptom of this product, but a D This is the time it takes for a DisplayPort device to recognize the display and begin video output, and is dependent on the performance of the DisplayPort device. This product completes port switching the moment you press the switch button. Supported resolutions: 8K/7680x4320 (30Hz) 3840x2160 (144Hz, 4:4:4) 3840x2160 (120Hz, 4:4:4) 3840x2160 (60Hz, 4:4:4) 3840x2160 (30Hz, 4:4:4) 2560x1440 (60Hz) 2048x1080 (60Hz) 192 0x1200 (60Hz)
1920x1080 (60Hz)
1680x1050 (60Hz)
1600x1200 (60Hz)
1280x1024 (60Hz)
1280x800 (60Hz)
1024x768 (60Hz)
800x600 (60Hz)
■Maximum resolution: 8K/7680x4320 (30Hz)
■Interface:
Input: DisplayPort female x 3
Output: DisplayPort female x 1
■Input DDC signal: 5V
■Data rate: 8.1Gbps
■Pixel clock: 810MHz (maximum)
■HDCP: HDCP 1.4: The display must also support HDCP. DisplayPort standard: DisplayPort 1.4 compatible Switching method: Main unit switch button, remote control Power consumption: 1.2W (max) Environmental conditions: Operating temperature: 0-50°C, humidity 80% or less (no condensation) Storage temperature: -20-60°C, humidity 80% or less (no condensation) Dimensions: W116 x D54.6 x H17.8mm Weight: Approx. 101g Package contents: Main unit, remote control (includes CR2025 battery), USB cable (for power supply), instruction manual, warranty card This Sanwa Supply DisplayPort switch allows you to switch the DisplayPort output (video and audio) from three computers to a single DisplayPort-equipped display. It supports resolutions up to 7680x4320 (8K/30Hz), outputting beautiful, high-definition DisplayPort signals. *Does not support HDR (high brightness). It comes with a remote control, allowing for easy switching even from a distance. Switching can also be performed using the buttons on the unit, and it is a fully manual switching type that does not automatically switch when other DisplayPort devices are started or shut down. *Some DisplayPort devices may need to recognize the display upon startup. In this case, you will need to switch ports before starting the DisplayPort device.
Package
Size (Approx.):
Size (Approx.):
142x35x193 mm
Package
Weight (Approx.):
Weight (Approx.):
220 g
