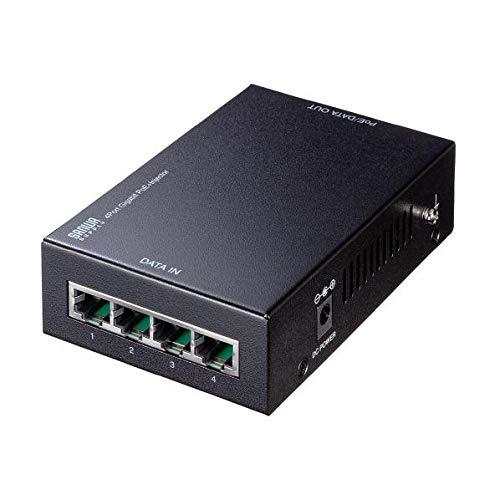

Sanwa Supply PoE Injector (Built-in Power Supply, IEEE802.3at (30W), 4-Port Compatible) LAN-GIHINJ3
JAN
4969887754580
ASIN
B086WX2RPW
Maker
Model No.
LAN-GIHINJ3
Color
Size
Description
Sanwa Supply - PoE Injector - 4-Port Compatible - LAN - GIHINJ3
▪️This PoE injector supports IEEE 802.3af/at.\
▪️Simply add this product to your existing network without modification to create a PoE-enabled network environment.\
※For PoE power delivery, select Category 5e/6 straight cables (cable thickness 24AWG/23AWG or higher). \
Sanwa Supply Recommended Cables\
・KB-T6POE Series (22AWG)\
・KB-T6TS Series (23AWG)\
・KB-T5T Series (24AWG Solid Wire)\
※PoE power supply must only be used with PoE-compatible devices (PDs). \
※Verify the required power consumption before using with a PD.\
▪️This single unit can enable PoE power delivery on all four LAN ports.\
▪️ Since PoE power delivery is controlled per port, mixed connections of IEEE802.3af devices and IEEE802.3at devices are possible.\
▪️ Supports high-speed Gigabit communication, maximizing the performance of existing networks and PoE devices.\
▪️ Uses a metal housing with excellent heat dissipation properties.\
■Standards: IEEE802.3 (10BASE-T)\
IEEE802.3u (100BASE-TX)\
IEEE802.3ab (1000BASE-T)\
IEEE802.3af/at\
■Switching Method: Store & Forward\
■ Transmission Mode: 100Mbps/10Mbps (Full Duplex, Half Duplex), 1000Mbps (Full Duplex)\
■ Port Configuration: Data Port (Input)/4 ports,\
PoE/Data Port (Output)/4 ports\
■PoE-Supported Port Output:\
at standard 1 port (max)/30W\
af standard 1 port (max)/15.4W\
Total across all ports up to 120W\
■Compatible LAN Cables:\
Data Communication/UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)\\ nPoE communication: UTP Category 5e/6/6a straight cable with 24AWG or thicker\
*Use PoE-compatible LAN cables.\
■Power consumption: 120.4W (max)\
■Operating environment: Temperature/0 to 40°C, Humidity/20 to 95% (non-condensing)\
■Storage Conditions: Temperature/-20 to 70°C, Humidity/20 to 95% (non-condensing)\
■Dimensions: W120 × D78 × H32mm\
■Weight: 280g\
■Accessories: AC Adapter ×1, Rubber Feet ×4, Power Cable (1.5m) ×1, Ground Wire ×1, Instruction manual ×1
Brand Name: Sanwa Supply
AC adapter ×1, Rubber feet ×4, Power cable (1.5m) ×1, Ground wire ×1, Instruction manual ×1
Material: Metal
This is an IEEE802.3af/at compliant PoE injector.
Simply adding this product to your existing network enables a PoE-powered network environment without modifying the existing network. *For PoE power delivery, use Category 5e/6 straight cables (24AWG/23AWG or thicker). Sanwa Supply Recommended Cables: ・KB-T6POE Series (22AWG) ・KB-T6TS Series (23AWG) ・KB-T5T Series (24AWG Single)
▪️This PoE injector supports IEEE 802.3af/at.\
▪️Simply add this product to your existing network without modification to create a PoE-enabled network environment.\
※For PoE power delivery, select Category 5e/6 straight cables (cable thickness 24AWG/23AWG or higher). \
Sanwa Supply Recommended Cables\
・KB-T6POE Series (22AWG)\
・KB-T6TS Series (23AWG)\
・KB-T5T Series (24AWG Solid Wire)\
※PoE power supply must only be used with PoE-compatible devices (PDs). \
※Verify the required power consumption before using with a PD.\
▪️This single unit can enable PoE power delivery on all four LAN ports.\
▪️ Since PoE power delivery is controlled per port, mixed connections of IEEE802.3af devices and IEEE802.3at devices are possible.\
▪️ Supports high-speed Gigabit communication, maximizing the performance of existing networks and PoE devices.\
▪️ Uses a metal housing with excellent heat dissipation properties.\
■Standards: IEEE802.3 (10BASE-T)\
IEEE802.3u (100BASE-TX)\
IEEE802.3ab (1000BASE-T)\
IEEE802.3af/at\
■Switching Method: Store & Forward\
■ Transmission Mode: 100Mbps/10Mbps (Full Duplex, Half Duplex), 1000Mbps (Full Duplex)\
■ Port Configuration: Data Port (Input)/4 ports,\
PoE/Data Port (Output)/4 ports\
■PoE-Supported Port Output:\
at standard 1 port (max)/30W\
af standard 1 port (max)/15.4W\
Total across all ports up to 120W\
■Compatible LAN Cables:\
Data Communication/UTP Category 5e or higher (1000BASE-T), UTP Category 5 or higher (100BASE-TX), UTP Category 3 or higher (10BASE-T)\\ nPoE communication: UTP Category 5e/6/6a straight cable with 24AWG or thicker\
*Use PoE-compatible LAN cables.\
■Power consumption: 120.4W (max)\
■Operating environment: Temperature/0 to 40°C, Humidity/20 to 95% (non-condensing)\
■Storage Conditions: Temperature/-20 to 70°C, Humidity/20 to 95% (non-condensing)\
■Dimensions: W120 × D78 × H32mm\
■Weight: 280g\
■Accessories: AC Adapter ×1, Rubber Feet ×4, Power Cable (1.5m) ×1, Ground Wire ×1, Instruction manual ×1
Brand Name: Sanwa Supply
AC adapter ×1, Rubber feet ×4, Power cable (1.5m) ×1, Ground wire ×1, Instruction manual ×1
Material: Metal
This is an IEEE802.3af/at compliant PoE injector.
Simply adding this product to your existing network enables a PoE-powered network environment without modifying the existing network. *For PoE power delivery, use Category 5e/6 straight cables (24AWG/23AWG or thicker). Sanwa Supply Recommended Cables: ・KB-T6POE Series (22AWG) ・KB-T6TS Series (23AWG) ・KB-T5T Series (24AWG Single)
Package
Size (Approx.):
Size (Approx.):
145x83x230 mm
Package
Weight (Approx.):
Weight (Approx.):
1200 g
