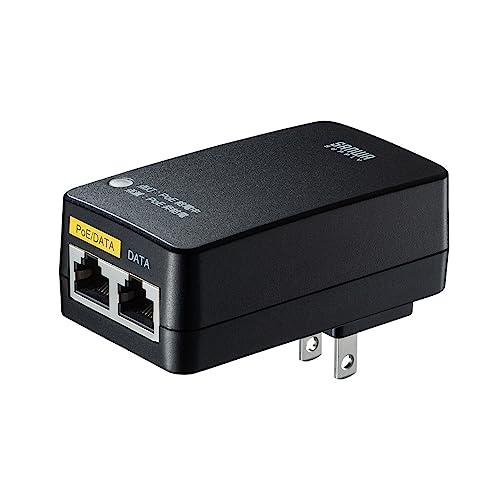

Sanwa Supply PoE Injector (Adapter Type) LAN-GIHINJ4
JAN
4969887754597
ASIN
B08B184JN1
Maker
Model No.
LAN-GIHINJ4
Color
Size
Description
Sanwa Supply - PoE Injector - 2-Port - Adapter Type - LAN - GIHINJ4
▪️ This PoE injector supports IEEE 802.3af (up to 15.4W).
▪️ Simply add this product to your existing network without modification to create a PoE-enabled network environment.
▪️ Its adapter design allows for space-saving installation.
▪️Supports high-speed Gigabit communication, maximizing the performance of both your existing network and PoE devices. ※For PoE power delivery, use Category 5e/6 straight cables or cables with 24AWG/23AWG or thicker gauge.
Recommended Cables (Sanwa Supply)
・KB-T6POE Series (AWG22)
・KB-T6L Series (AWG23)
・KB-T5T Series (AWG24 Solid Wire)
※PoE power supply must only be used with PoE-compatible devices (PDs).
※Verify the required power before using with PD devices.
※This product (PoE injector) is exempt from the Electrical Appliance and Material Safety Law (PSE Law), but it has passed tests conforming to PSE Law standards to ensure safety.
■Standards: IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3af
■Switching Method: Store & Forward
■ Transmission Mode: 100Mbps/10Mbps (Full-duplex, Half-duplex),
1000Mbps (Full-duplex)
■ Port Configuration: Data Port (Input)/1 port
PoE/Data Port (Output)/1 port
■ PoE Supported Port Output: af standard/15.4W/1 port (Maximum)
■ Dimensions: W83 × D47 × H38 mm
■ Weight: 100 g
■ Power Consumption: Approx. 21 W (Max)
■ Operating Environment Conditions:
Operating Temperature/0°C to 40°C
Operating Humidity/10% to 90% (Non-condensing)
■Storage Environment Conditions:
Storage Temperature/-20°C to 70°C
Storage Humidity/5% to 90% (non-condensing)
■Accessories: Instruction Manual
■Certification Standards: VCCI Class B
■Color: Black
Brand Name: Sanwa Supply
This PoE injector supports IEEE802.3af (up to 15.4W).
Simply add this product to your existing network without modification to create a PoE-enabled network environment.
Its compact adapter design allows for space-saving installation.
Supports high-speed Gigabit communication, maximizing the performance of both your existing network and PoE devices.
Important Notes When Using PoE Ports: Use Category 6 straight-through cables or cables with 24AWG/23AWG or thicker gauge for PoE power delivery. Only use PoE power delivery with PoE-compatible devices (PDs). Verify the required power consumption before connecting to a PD device.
4969887754597
Sanwa Supply PoE Injector (Adapter Type) LAN-GIHINJ4
(text created at , 2025-05-10)
▪️ This PoE injector supports IEEE 802.3af (up to 15.4W).
▪️ Simply add this product to your existing network without modification to create a PoE-enabled network environment.
▪️ Its adapter design allows for space-saving installation.
▪️Supports high-speed Gigabit communication, maximizing the performance of both your existing network and PoE devices.
Recommended Cables (Sanwa Supply)
・KB-T6POE Series (AWG22)
・KB-T6L Series (AWG23)
・KB-T5T Series (AWG24 Solid Wire)
※PoE power supply must only be used with PoE-compatible devices (PDs).
※Verify the required power before using with PD devices.
※This product (PoE injector) is exempt from the Electrical Appliance and Material Safety Law (PSE Law), but it has passed tests conforming to PSE Law standards to ensure safety.
■Standards: IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3af
■Switching Method: Store & Forward
■ Transmission Mode: 100Mbps/10Mbps (Full-duplex, Half-duplex),
1000Mbps (Full-duplex)
■ Port Configuration: Data Port (Input)/1 port
PoE/Data Port (Output)/1 port
■ PoE Supported Port Output: af standard/15.4W/1 port (Maximum)
■ Dimensions: W83 × D47 × H38 mm
■ Weight: 100 g
■ Power Consumption: Approx. 21 W (Max)
■ Operating Environment Conditions:
Operating Temperature/0°C to 40°C
Operating Humidity/10% to 90% (Non-condensing)
■Storage Environment Conditions:
Storage Temperature/-20°C to 70°C
Storage Humidity/5% to 90% (non-condensing)
■Accessories: Instruction Manual
■Certification Standards: VCCI Class B
■Color: Black
Brand Name: Sanwa Supply
This PoE injector supports IEEE802.3af (up to 15.4W).
Simply add this product to your existing network without modification to create a PoE-enabled network environment.
Its compact adapter design allows for space-saving installation.
Supports high-speed Gigabit communication, maximizing the performance of both your existing network and PoE devices.
Important Notes When Using PoE Ports: Use Category 6 straight-through cables or cables with 24AWG/23AWG or thicker gauge for PoE power delivery. Only use PoE power delivery with PoE-compatible devices (PDs). Verify the required power consumption before connecting to a PD device.
4969887754597
Sanwa Supply PoE Injector (Adapter Type) LAN-GIHINJ4
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
98x67x144 mm
Package
Weight (Approx.):
Weight (Approx.):
160 g
