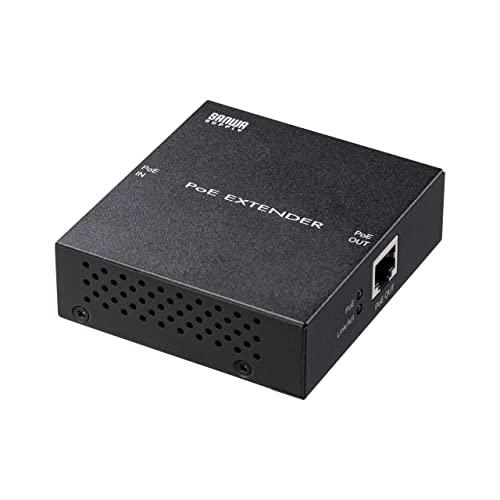

Sanwa Supply PoE Extender with Magnet, Up to 100m Extension, Auto-MDIX Function, Gigabit LAN-EXPOE2

4969887757451

B0B311QBT8

LAN-EXPOE2

Sanwa Supply - PoE Extender - Up to 100m Extension - Auto-MDIX Function - LAN-EXPOE2
▪️This PoE extender operates via PoE power and extends LAN cables up to 100m. ※1▪️The unit supports operation via PoE power, eliminating the need for power cables during relaying or extension.
▪️Extends both LAN signals and PoE power. ※2▪️By cascading up to 5 units, LAN cable length can be extended up to approximately 600m. ※3, ※4, ※5▪️Equipped with LEDs to indicate communication and power supply status.▪️Compact size for space-saving installation; supports wall-mounting and magnetic mounting.
▪️ This product is for indoor use only. ※1 Theoretical value based on LAN cable specifications. ※2 PoE power supplied through this product decreases due to power loss over the LAN cable and power consumption by the unit itself. ※3 The maximum number of extendable units may vary depending on the specifications of the PoE-supplying device and cable length, as the supplied power differs. ※4 PoE output is possible from this product when the PoE-powered device complies with IEEE802.3at. (Compliant with IEEE802.3af/Max 15.4W per port) ※5 PoE output from this product is not supported when the PoE-powered device complies with IEEE802.3af. (Power is supplied, but voltage and power output do not comply with the PoE standard) ※6 For PoE power supply, select a Category 5e/6/6a straight cable or a cable with a gauge of 24AWG or thicker. Recommended cables (Sanwa Supply): ・KB-T6POE series (22 AWG) ・KB-T6TS series (23 AWG) ・KB-T5T series (24 AWG solid wire)

■Color: Black

■Dimensions: W86.8 × D79.3 × H25.8 mm

■Weight: 196 g

■Maximum Transmission Speed: 1000 Mbps (1000BASE-T)

■Compliant Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3x (Flow control for Full-Duplex) PoE Recipient Port: IEEE802.3af/at PoE Sending Port: IEEE802.3af *The available power supply is reduced due to the power consumption of this product itself. Therefore, it cannot supply the IEEE802.3at standard value (30W).

■Access Method: CSMA/CD

■Switching Method: Store & Forward

■Communication Mode: Full Duplex/Half Duplex

■Port Configuration: 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX PoE Port (PSE) × 1 Port PoE Port (PD) × 1 Port

■PoE Support: Supported

■PoE Port Output: af standard 15.4W/1 port (Maximum)

■PoE Power Delivery Method: Alternative A, Alternative B

■Power Consumption (Maximum): 0.88W

■Operating Environment Conditions: Temperature/10~40℃ Humidity/10~90% (non-condensing)

■Storage Environment Conditions: Temperature/-40~70℃ Humidity/5~90% (non-condensing)

■Housing Material: Metal

■Magnetic Mounting: Yes

■Set Contents: Main Unit ×1, Instruction Manual (Warranty Card) ×1, Wall Mounting Screws ×2, Anchors ×2
Brand Name: Sanwa Supply
This PoE extender operates via PoE power reception and can extend LAN cables up to 100m. ※1
The main unit supports operation via PoE power reception.

90x47x95 mm

240 g
