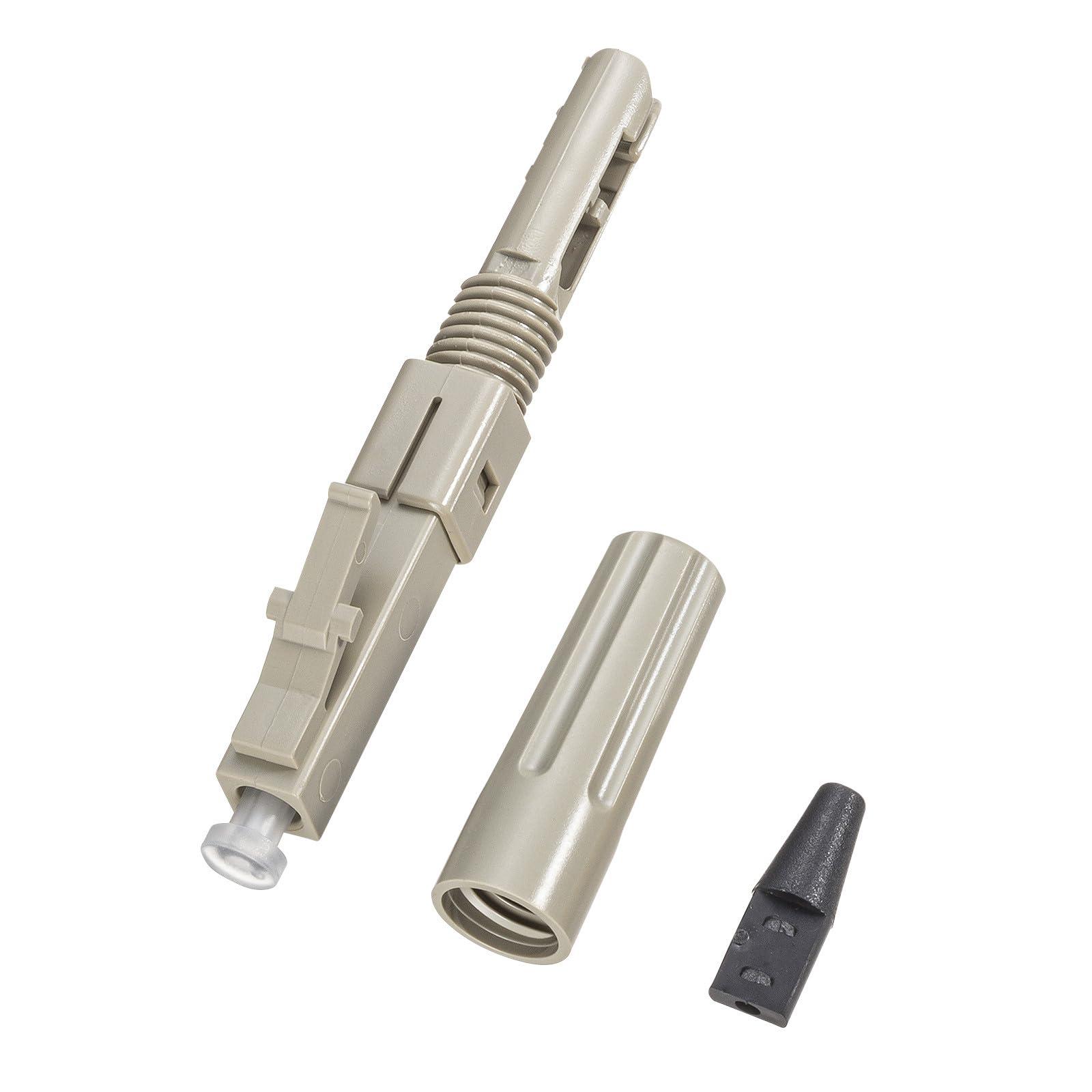

Sanwa Supply Fiber Optic Fast LC Connector (Multimode, 50μm) HKB-AC-FLCMM
JAN
4969887770641
ASIN
B0DBZHX2BL
Maker
Model No.
HKB-AC-FLCMM
Color
Size
Description
Sanwa Supply-HKB-AC-FLCMM-Fiber Optic Fast LC Connector (Multimode, 50μm)
▪️ No end-face polishing required, no adhesive work needed. This field-terminatable optical fast connector simply secures the fiber optic cord by inserting it into the connector.
▪️ The end-face is pre-polished with UPC finish, eliminating the need for tedious polishing work.
▪️ Features an internal mechanical splice structure, enabling easy connector attachment to the tip of the fiber optic cord.
▪️A wedge unit is included with the product, eliminating the need for specialized tools for connector assembly.
(Stripping tools and fiber wire tools for cleavers/cutters are required.)
▪️Compatible with fiber cords featuring 0.9mm core diameter and 2.0mm or 3.0mm outer diameter.
■Optical Fiber Core Diameter: 50μm
■Fiber Type: Multimode
■Connector Type: LC Connector
■Operating Environment: Indoor Use
■Compatible Cables: 0.9mm Core, 2.0mm Outer Sheath Fiber Cord, 3.0mm Outer Sheath Fiber Cord
■Compatible Modes: Multimode (OM3/OM4)
■Polishing: UPC
■Quantity: 4 Pieces
■Related Tools:
HKB-TL36 Fiber Optic Cleaver
HKB-TL37 Fiber Optic Stripper
HKB-AC-CL5 Cleaning Sheet
Brand Name: Sanwa Supply
This field-terminatable optical fast connector requires no end-face polishing or adhesive work. Simply insert and secure the fiber optic cord into the connector.
The end face is pre-polished with UPC, eliminating the need for tedious polishing.
The connector incorporates a mechanical splice structure internally, allowing easy attachment of the connector to the tip of the fiber optic cord.
A wedge unit is included with the product, so no special tools are required for connector assembly. (Fiber stripping tools and fiber cleaver (cutter) tools are required.)
Compatible with fiber cords featuring 0.9mm core, 2.0mm outer jacket, and 3.0mm outer jacket.
4969887770641
Sanwa Supply Fiber Optic Fast LC Connector (Multimode, 50μm) HKB-AC-FLCMM
(text created at , 2025-05-10)
▪️ No end-face polishing required, no adhesive work needed. This field-terminatable optical fast connector simply secures the fiber optic cord by inserting it into the connector.
▪️ The end-face is pre-polished with UPC finish, eliminating the need for tedious polishing work.
▪️ Features an internal mechanical splice structure, enabling easy connector attachment to the tip of the fiber optic cord.
▪️A wedge unit is included with the product, eliminating the need for specialized tools for connector assembly.
(Stripping tools and fiber wire tools for cleavers/cutters are required.)
▪️Compatible with fiber cords featuring 0.9mm core diameter and 2.0mm or 3.0mm outer diameter.
■Optical Fiber Core Diameter: 50μm
■Fiber Type: Multimode
■Connector Type: LC Connector
■Operating Environment: Indoor Use
■Compatible Cables: 0.9mm Core, 2.0mm Outer Sheath Fiber Cord, 3.0mm Outer Sheath Fiber Cord
■Compatible Modes: Multimode (OM3/OM4)
■Polishing: UPC
■Quantity: 4 Pieces
■Related Tools:
HKB-TL36 Fiber Optic Cleaver
HKB-TL37 Fiber Optic Stripper
HKB-AC-CL5 Cleaning Sheet
Brand Name: Sanwa Supply
This field-terminatable optical fast connector requires no end-face polishing or adhesive work. Simply insert and secure the fiber optic cord into the connector.
The end face is pre-polished with UPC, eliminating the need for tedious polishing.
The connector incorporates a mechanical splice structure internally, allowing easy attachment of the connector to the tip of the fiber optic cord.
A wedge unit is included with the product, so no special tools are required for connector assembly. (Fiber stripping tools and fiber cleaver (cutter) tools are required.)
Compatible with fiber cords featuring 0.9mm core, 2.0mm outer jacket, and 3.0mm outer jacket.
4969887770641
Sanwa Supply Fiber Optic Fast LC Connector (Multimode, 50μm) HKB-AC-FLCMM
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
90x10x150 mm
Package
Weight (Approx.):
Weight (Approx.):
10 g
7,447 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-22
