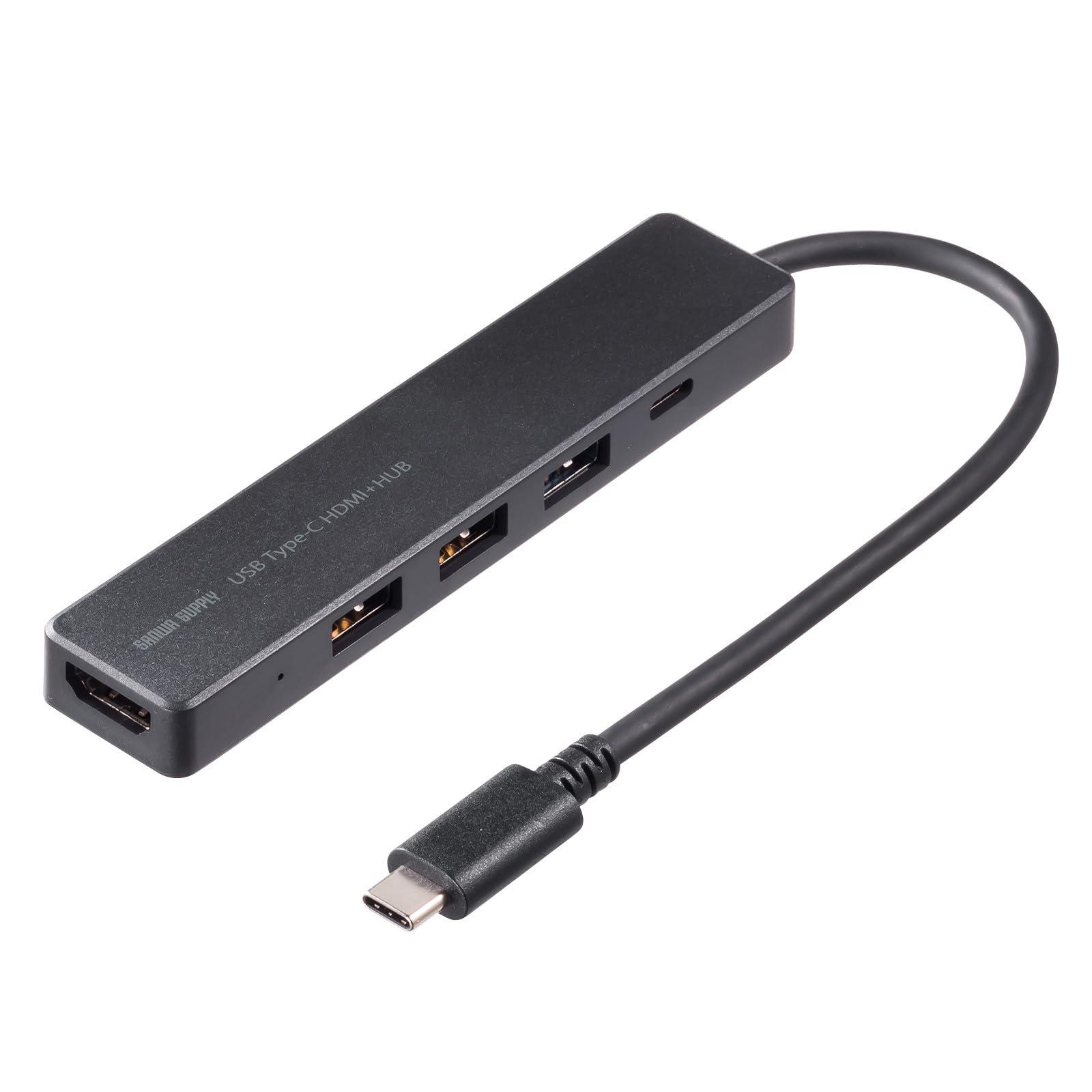

Sanwa Supply USB Type-C Hub with HDMI Port USB-5TCH15BK
JAN
4969887783573
ASIN
B0CZXJVDLJ
Maker
Model No.
USB-5TCH15BK
Color
Size
Description
SANWA SUPPLY - USB-Type-C Hub with HDMI Port - USB-5TCH15BK
▪️This is a slim USB Type-C hub with an HDMI output port. Supports 4K/30Hz HDMI output, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software. The USB Type-C connector allows compatibility with computers equipped with a Type-C port. Features a USB 2.0 port that is resistant to noise from USB 5Gbps ports and is ideal for connecting input devices. Restrictions: This product must be connected directly to the computer's Type-C port. It cannot be used with a USB hub or an additional USB port. While this product is generally plug-and-play compatible, there may be rare cases where the display does not work properly due to a timing error in USB recognition. Please try disconnecting and reconnecting it. This is not a malfunction or defect in the product. This product is intended for use with Windows or Mac OS. It does not function (display) during system startup or at the BIOS screen. *Even if the model, connected device, and environment are compatible, the product may not function properly. *Please note that when connecting a USB 2.0/1.1 standard product, the maximum transfer speed will be that of the slower standard. *Connection and operation of all USB Type-C devices cannot be guaranteed. *This product is compatible with the USB 5Gbps (3.2 Gen1) standard, but the USB 5Gbps (3.2 Gen1) standard value (5Gbps) transfer speed is the standard value. <PC connection terminal>
■Connector shape: USB Type-C
■Compatible standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Cable length: 15cm
■Cable type: Integrated type
<Video output port>
■Connector: HDMI Type A (19-pin) female x 1
*DisplayPort Alt mode compatible
■HDCP: 1.4
■Supported resolution: Maximum 3840 x 2160 (4K/30Hz)
<USB hub>
■Number of ports: 4 ports
■Maximum data transfer rate: 5Gbps (theoretical value)
■Connector shape:
USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) A connector female x 1 (downstream),
USB 2.0 A connector female x 2 (downstream),
USB 2.0 Type-C connector female x 1 (downstream),
USB 5Gbps Type-C connector 1 Male (Upstream) Power Supply: 1500mA Power Supply: Bus Powered General Specifications: Size: Approx. 24.9mm W x 11.5mm D x 120.5mm H Weight: Approx. 37g Package Contents: Instruction Manual Brand: Sanwa Supply This slim USB Type-C hub with an HDMI output port supports 4K/30Hz HDMI output, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software. The USB Type-C connector allows it to be used with computers equipped with a Type-C port. It features a USB 2.0 port that is resistant to noise from USB 5Gbps ports and is ideal for connecting input devices. Restrictions: This product must be connected directly to the computer's Type-C port. It cannot be used with USB hubs or additional USB ports. While this product is generally plug-and-play compatible, there may be rare cases where the display or operation may not work properly due to a timing error in USB recognition. Please try disconnecting and reconnecting it. This is not a malfunction or defect of the product. *This product is intended for use with Windows OS or Mac OS. It does not function (display) during system startup or on the BIOS screen. *It may not function properly even with compatible models, connected devices, and environments. *When connecting a USB 2.0/1.1 standard product, please note that the maximum transfer speed will be the slower standard. *We cannot guarantee connection or operation with all USB Type-C devices. *This product is compatible with the USB 5Gbps (3.2 Gen1) standard, but the USB 5Gbps (3.2 Gen1) standard (5Gbps) transfer speed is the standard value. 4969887783573 Sanwa Supply USB Type-C Hub with HDMI Port USB-5TCH15BK (text created at , 2025-05-10)
▪️This is a slim USB Type-C hub with an HDMI output port. Supports 4K/30Hz HDMI output, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software. The USB Type-C connector allows compatibility with computers equipped with a Type-C port. Features a USB 2.0 port that is resistant to noise from USB 5Gbps ports and is ideal for connecting input devices. Restrictions: This product must be connected directly to the computer's Type-C port. It cannot be used with a USB hub or an additional USB port. While this product is generally plug-and-play compatible, there may be rare cases where the display does not work properly due to a timing error in USB recognition. Please try disconnecting and reconnecting it. This is not a malfunction or defect in the product. This product is intended for use with Windows or Mac OS. It does not function (display) during system startup or at the BIOS screen. *Even if the model, connected device, and environment are compatible, the product may not function properly. *Please note that when connecting a USB 2.0/1.1 standard product, the maximum transfer speed will be that of the slower standard. *Connection and operation of all USB Type-C devices cannot be guaranteed. *This product is compatible with the USB 5Gbps (3.2 Gen1) standard, but the USB 5Gbps (3.2 Gen1) standard value (5Gbps) transfer speed is the standard value. <PC connection terminal>
■Connector shape: USB Type-C
■Compatible standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Cable length: 15cm
■Cable type: Integrated type
<Video output port>
■Connector: HDMI Type A (19-pin) female x 1
*DisplayPort Alt mode compatible
■HDCP: 1.4
■Supported resolution: Maximum 3840 x 2160 (4K/30Hz)
<USB hub>
■Number of ports: 4 ports
■Maximum data transfer rate: 5Gbps (theoretical value)
■Connector shape:
USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) A connector female x 1 (downstream),
USB 2.0 A connector female x 2 (downstream),
USB 2.0 Type-C connector female x 1 (downstream),
USB 5Gbps Type-C connector 1 Male (Upstream) Power Supply: 1500mA Power Supply: Bus Powered General Specifications: Size: Approx. 24.9mm W x 11.5mm D x 120.5mm H Weight: Approx. 37g Package Contents: Instruction Manual Brand: Sanwa Supply This slim USB Type-C hub with an HDMI output port supports 4K/30Hz HDMI output, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software. The USB Type-C connector allows it to be used with computers equipped with a Type-C port. It features a USB 2.0 port that is resistant to noise from USB 5Gbps ports and is ideal for connecting input devices. Restrictions: This product must be connected directly to the computer's Type-C port. It cannot be used with USB hubs or additional USB ports. While this product is generally plug-and-play compatible, there may be rare cases where the display or operation may not work properly due to a timing error in USB recognition. Please try disconnecting and reconnecting it. This is not a malfunction or defect of the product. *This product is intended for use with Windows OS or Mac OS. It does not function (display) during system startup or on the BIOS screen. *It may not function properly even with compatible models, connected devices, and environments. *When connecting a USB 2.0/1.1 standard product, please note that the maximum transfer speed will be the slower standard. *We cannot guarantee connection or operation with all USB Type-C devices. *This product is compatible with the USB 5Gbps (3.2 Gen1) standard, but the USB 5Gbps (3.2 Gen1) standard (5Gbps) transfer speed is the standard value. 4969887783573 Sanwa Supply USB Type-C Hub with HDMI Port USB-5TCH15BK (text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
110x22x179 mm
Package
Weight (Approx.):
Weight (Approx.):
70 g
3,875 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-21
Quantity :
