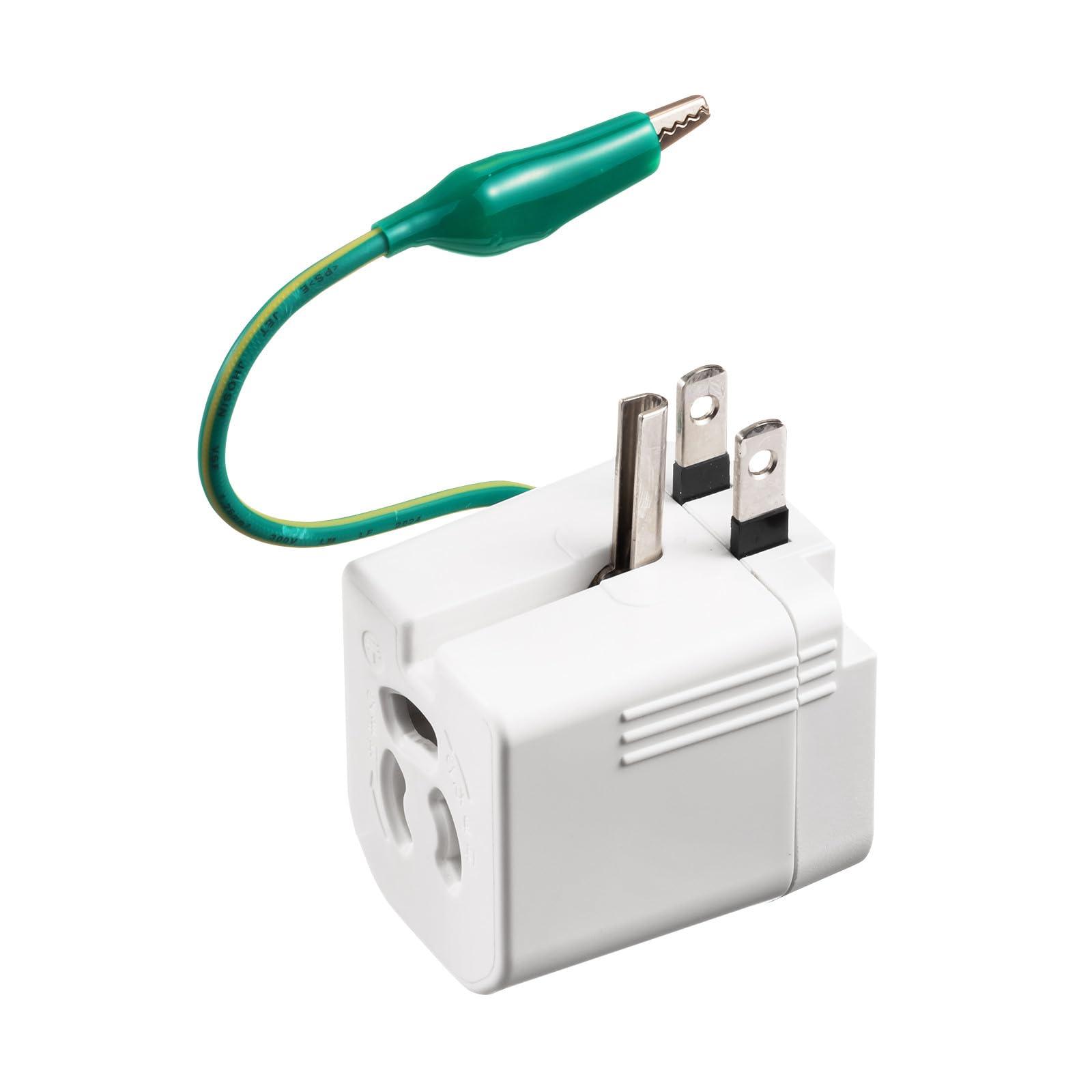

Sanwa Supply Temperature & Current Fuse Built-in Adapter TAP-AD16W
JAN
4969887828700
ASIN
B0DTK1DSMJ
Maker
Model No.
TAP-AD16W
Color
Size
Description
Sanwa Supply-Sanwa-Supply-TAP-AD16W-Temperature & Current Fuse Built-in Adapter
▪️ Features built-in temperature and current fuses for double protection. If overheating occurs, it detects the temperature and safely cuts power to the device. In case of overcurrent, the current fuse cuts power to prevent accidents. The LED indicates the operating status.
▪️ The ground pin can be folded down, allowing use as a 2-pin plug.
▪️ The receptacle features a lock-in mechanism to prevent accidental plug disconnection.
▪️ When plugging in, insert the plug from the “disconnect” position and rotate it firmly until it clicks into the ‘locked’ position.
▪️ To unplug, rotate the plug to the “disconnect” position, then pull straight up.
▪️ Includes a clip-on grounding pin for easy grounding. 【Important Notes】
※ When using as a grounded 2-pin plug, always connect the grounding wire.
※ Grounding is mandatory.
※ The thermal fuse is non-resettable. It cannot be replaced.
※ Use only up to 1500W.
※ Do not use in areas exposed to water. Replace with a new one if it becomes soaked in water, detergent, insecticide, etc.
※Do not pour toilet liquid cleaner onto the power plug.
※Do not insert or remove the plug with wet hands.
※Do not insert the plug halfway. This may cause electric shock or fire. ※Always disconnect power from the wall outlet. ※In dusty or humid areas, periodically clean around the adapter/plug and the plug insertion point.
■Rated Capacity: 15A・125V (up to 1500W)
■PSE Compliance: Compliant
■Plug Type: 3P
■Plug Type: 3P & 2P
■Plug Specification: Foldable
■Insulation Cap: Yes
■Socket Type: Locking Type
■Number of Sockets: 1 Outlet
■Grounding Cord Length: 10cm
■Grounding Terminal: Yes
■Dimensions: W40 × D47 × H48mm
■Weight: 100g
■Operating Temperature Range: 60°C or below
※Using in environments above 60°C may cause the thermal fuse to activate even below the rated capacity (1500W).
■Thermal Fuse: Operating Precision 108°C
■Current Fuse: 20A
■Compatible Regions: For Japan only. Not for use outside Japan.
■Design Registration: Registered
Brand Name: Sanwa Supply Built-in temperature and current fuses provide double protection. In case of overheating, it detects the temperature and safely cuts off the device's power. During overcurrent, the current fuse cuts off the power, preventing accidents. The LED indicates the operational status.
The earth pin can be folded down, allowing use as a 2-pin plug.
The socket features a lock-in mechanism to prevent accidental plug disconnection.
When using, insert the plug from the “release” position and rotate it firmly until it clicks into the “locked” position.
To remove the plug, rotate it to the “release” position, then pull straight up.
4969887828700
Sanwa Supply Built-in Temperature & Current Fuse Adapter TAP-AD16W
(text created at , 2025-06-30)
▪️ Features built-in temperature and current fuses for double protection. If overheating occurs, it detects the temperature and safely cuts power to the device. In case of overcurrent, the current fuse cuts power to prevent accidents. The LED indicates the operating status.
▪️ The ground pin can be folded down, allowing use as a 2-pin plug.
▪️ The receptacle features a lock-in mechanism to prevent accidental plug disconnection.
▪️ When plugging in, insert the plug from the “disconnect” position and rotate it firmly until it clicks into the ‘locked’ position.
▪️ To unplug, rotate the plug to the “disconnect” position, then pull straight up.
▪️ Includes a clip-on grounding pin for easy grounding. 【Important Notes】
※ When using as a grounded 2-pin plug, always connect the grounding wire.
※ Grounding is mandatory.
※ The thermal fuse is non-resettable. It cannot be replaced.
※ Use only up to 1500W.
※ Do not use in areas exposed to water. Replace with a new one if it becomes soaked in water, detergent, insecticide, etc.
※Do not pour toilet liquid cleaner onto the power plug.
※Do not insert or remove the plug with wet hands.
※Do not insert the plug halfway. This may cause electric shock or fire. ※Always disconnect power from the wall outlet. ※In dusty or humid areas, periodically clean around the adapter/plug and the plug insertion point.
■Rated Capacity: 15A・125V (up to 1500W)
■PSE Compliance: Compliant
■Plug Type: 3P
■Plug Type: 3P & 2P
■Plug Specification: Foldable
■Insulation Cap: Yes
■Socket Type: Locking Type
■Number of Sockets: 1 Outlet
■Grounding Cord Length: 10cm
■Grounding Terminal: Yes
■Dimensions: W40 × D47 × H48mm
■Weight: 100g
■Operating Temperature Range: 60°C or below
※Using in environments above 60°C may cause the thermal fuse to activate even below the rated capacity (1500W).
■Thermal Fuse: Operating Precision 108°C
■Current Fuse: 20A
■Compatible Regions: For Japan only. Not for use outside Japan.
■Design Registration: Registered
Brand Name: Sanwa Supply Built-in temperature and current fuses provide double protection. In case of overheating, it detects the temperature and safely cuts off the device's power. During overcurrent, the current fuse cuts off the power, preventing accidents. The LED indicates the operational status.
The earth pin can be folded down, allowing use as a 2-pin plug.
The socket features a lock-in mechanism to prevent accidental plug disconnection.
When using, insert the plug from the “release” position and rotate it firmly until it clicks into the “locked” position.
To remove the plug, rotate it to the “release” position, then pull straight up.
4969887828700
Sanwa Supply Built-in Temperature & Current Fuse Adapter TAP-AD16W
(text created at , 2025-06-30)
Package
Size (Approx.):
Size (Approx.):
79x49x128 mm
Package
Weight (Approx.):
Weight (Approx.):
90 g
2,005 JPY (Including Tax)
