Carmate Jimny Dedicated Additional Power Unit Suzuki Jimny JB64 Jimny Sierra JB74 Car Accessory Socket USB Power suzuki jimny carmate NZ587
JAN
4973007525875
ASIN
B07YKT1FYK
Maker
Model No.
NZ587
Color
Size
Description

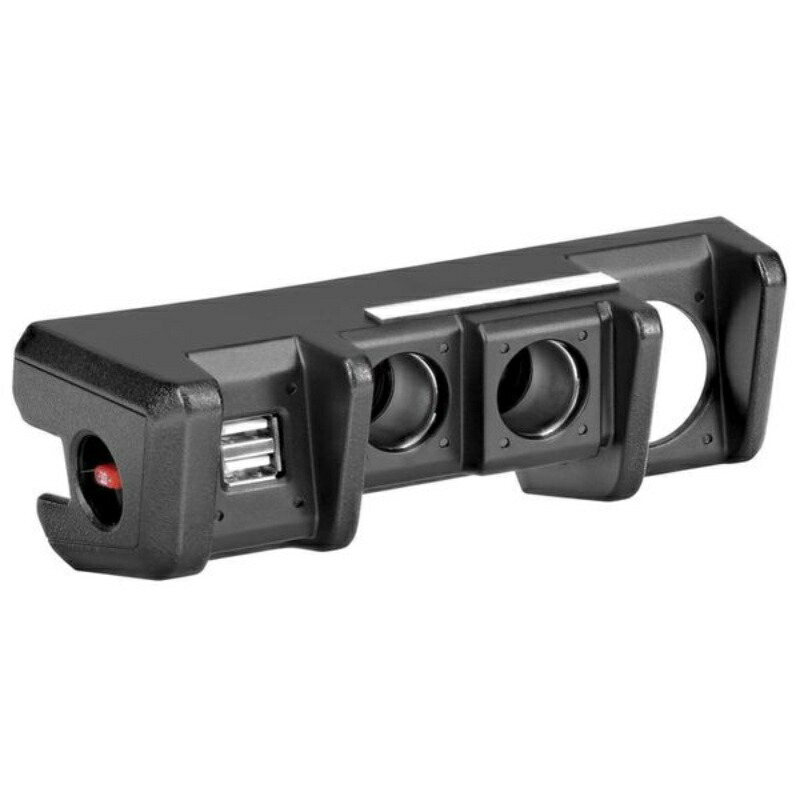

Carmate - Power Supply Unit - Jimny - Jimny Sierra - NZ587
▪️Like an OEM Part
This product is specifically designed to plug into the accessory socket of the Jimny (JB64) or Jimny Sierra (JB74) and install using adhesive tape.
*For automatic transmission vehicles, the clearance between this product and the center console at its narrowest point is approximately 25mm.
▪️Sophisticated, Custom Design
Since it's specifically designed for the Jimny, it uses a color-matched resin instead of the typical black resin, matching the Jimny's interior color. The body surface is treated to match the Jimny's interior, creating a genuine-looking finish that enhances the design and blends seamlessly with the Jimny.
▪️Easy Installation
Simply insert this product into the OEM accessory socket and attach it with the adhesive tape to complete the installation. The adhesive tape has been selected to provide excellent adhesion in harsh vehicle environments, both hot and cold, while leaving no residue or marks upon removal, making it ideal for use inside the vehicle.
*This product is designed to be compatible with optional USB sockets.
▪️1 Socket → 2 Sockets + 2 USB Ports
By installing this product, you can expand your factory accessory socket from a single port. The dual socket + 2 USB ports are useful for a variety of applications, such as charging electronic devices and connecting a dashcam.
▪️Large Capacity with a Total Output of 7A (84W)
The socket and USB ports together allow you to use electrical devices with a combined output of 7A.
You can use electrical devices with a total output of up to 7A (84W), such as smartphones, tablets, heated tobacco products, FM transmitters, and dashcams.
*Do not insert a cigarette lighter into the socket. Doing so will cause a short circuit.
▪️Built-in Auto-Charge IC: USB Port with a Maximum Rated Output of 3A
With a maximum total USB output of 3A, you can comfortably charge a variety of electrical devices. In addition, the built-in auto-charge IC automatically determines the optimal current for each connected device. Designed to output a maximum rated power of 3A, it provides more than enough power to meet the power requirements of connected devices.
▪️ Difference between maximum amperage and maximum rated amperage
Maximum 3A: If 3A is output even for 1 second, it is a maximum of 3A.
Maximum rated 3A: If the connected device requires 3A, it will always output 3A.
This product has a maximum rated 3A.
▪️Includes a downlight that provides soft illumination in dark interiors
When this product is installed and powered on, the downlight (LED) lights up. The downlight (LED) color is orange, similar to the color of the LEDs on the Jimny's climate control panel.
This downlight softly illuminates the Jimny's center console tray. Small items like smartphones and coins are easy to see even in dark interiors.
▪️Equipped with a fuse-based safety device
This product includes a fuse that will blow if the output exceeds the allowable amperage. This is to protect the vehicle's fuses and your electrical equipment.
If the fuse blows, it may be due to the electrical equipment's amperage exceeding the allowable amperage or a malfunction in the connected electrical equipment.
▪️ Fuse pocket for easy fuse replacement In the unlikely event that the fuse in this product blows, the fuse is located in a position that allows it to be replaced without removing the unit. Since the fuse can be replaced from the fuse pocket, it is easy to replace the fuse. (When replacing the fuse, please use a 10A mini flat fuse.) Additionally, the use of the original socket cover gives it a genuine look and prevents the original socket cover from getting in the way. Specifications: Power Supply Voltage: DC 12V; Output Capacity: DC 12V socket up to 7A (total of 2 ports), DC 5V USB up to 3A (total of 2 ports), total for the entire unit up to 7A; Operating Temperature Range: 0°C to +45°C; Fuse: 10A mini flat fuse (replaceable). Brand: Carmate. Power Supply Voltage: DC 12V. Output Capacity: DC 12V socket up to 7A (total of 2 ports), DC 5V USB up to 3A (total of 2 ports), total for the entire unit up to 7A. Operating Temperature Range: 0°C to +45°C. Fuse: 10A mini flat fuse (replaceable). Downlight for soft illumination in dark interiors. Fuse-based safety feature. Fuse pocket for easy fuse replacement. Product Code: 4973007525875. Carmate Jimny-Specific Power Supply Unit for Suzuki Jimny JB64 and Jimny Sierra. JB74 Car Accessory Socket USB Power Supply for Suzuki Jimny Carmate NZ587 (text created at , 2025-05-11)
▪️Like an OEM Part
This product is specifically designed to plug into the accessory socket of the Jimny (JB64) or Jimny Sierra (JB74) and install using adhesive tape.
*For automatic transmission vehicles, the clearance between this product and the center console at its narrowest point is approximately 25mm.
▪️Sophisticated, Custom Design
Since it's specifically designed for the Jimny, it uses a color-matched resin instead of the typical black resin, matching the Jimny's interior color. The body surface is treated to match the Jimny's interior, creating a genuine-looking finish that enhances the design and blends seamlessly with the Jimny.
▪️Easy Installation
Simply insert this product into the OEM accessory socket and attach it with the adhesive tape to complete the installation. The adhesive tape has been selected to provide excellent adhesion in harsh vehicle environments, both hot and cold, while leaving no residue or marks upon removal, making it ideal for use inside the vehicle.
*This product is designed to be compatible with optional USB sockets.
▪️1 Socket → 2 Sockets + 2 USB Ports
By installing this product, you can expand your factory accessory socket from a single port. The dual socket + 2 USB ports are useful for a variety of applications, such as charging electronic devices and connecting a dashcam.
▪️Large Capacity with a Total Output of 7A (84W)
The socket and USB ports together allow you to use electrical devices with a combined output of 7A.
You can use electrical devices with a total output of up to 7A (84W), such as smartphones, tablets, heated tobacco products, FM transmitters, and dashcams.
*Do not insert a cigarette lighter into the socket. Doing so will cause a short circuit.
▪️Built-in Auto-Charge IC: USB Port with a Maximum Rated Output of 3A
With a maximum total USB output of 3A, you can comfortably charge a variety of electrical devices. In addition, the built-in auto-charge IC automatically determines the optimal current for each connected device. Designed to output a maximum rated power of 3A, it provides more than enough power to meet the power requirements of connected devices.
▪️ Difference between maximum amperage and maximum rated amperage
Maximum 3A: If 3A is output even for 1 second, it is a maximum of 3A.
Maximum rated 3A: If the connected device requires 3A, it will always output 3A.
This product has a maximum rated 3A.
▪️Includes a downlight that provides soft illumination in dark interiors
When this product is installed and powered on, the downlight (LED) lights up. The downlight (LED) color is orange, similar to the color of the LEDs on the Jimny's climate control panel.
This downlight softly illuminates the Jimny's center console tray. Small items like smartphones and coins are easy to see even in dark interiors.
▪️Equipped with a fuse-based safety device
This product includes a fuse that will blow if the output exceeds the allowable amperage. This is to protect the vehicle's fuses and your electrical equipment.
If the fuse blows, it may be due to the electrical equipment's amperage exceeding the allowable amperage or a malfunction in the connected electrical equipment.
▪️ Fuse pocket for easy fuse replacement In the unlikely event that the fuse in this product blows, the fuse is located in a position that allows it to be replaced without removing the unit. Since the fuse can be replaced from the fuse pocket, it is easy to replace the fuse. (When replacing the fuse, please use a 10A mini flat fuse.) Additionally, the use of the original socket cover gives it a genuine look and prevents the original socket cover from getting in the way. Specifications: Power Supply Voltage: DC 12V; Output Capacity: DC 12V socket up to 7A (total of 2 ports), DC 5V USB up to 3A (total of 2 ports), total for the entire unit up to 7A; Operating Temperature Range: 0°C to +45°C; Fuse: 10A mini flat fuse (replaceable). Brand: Carmate. Power Supply Voltage: DC 12V. Output Capacity: DC 12V socket up to 7A (total of 2 ports), DC 5V USB up to 3A (total of 2 ports), total for the entire unit up to 7A. Operating Temperature Range: 0°C to +45°C. Fuse: 10A mini flat fuse (replaceable). Downlight for soft illumination in dark interiors. Fuse-based safety feature. Fuse pocket for easy fuse replacement. Product Code: 4973007525875. Carmate Jimny-Specific Power Supply Unit for Suzuki Jimny JB64 and Jimny Sierra. JB74 Car Accessory Socket USB Power Supply for Suzuki Jimny Carmate NZ587 (text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
170x82x206 mm
Package
Weight (Approx.):
Weight (Approx.):
480 g
4,770 JPY (Including Tax)
