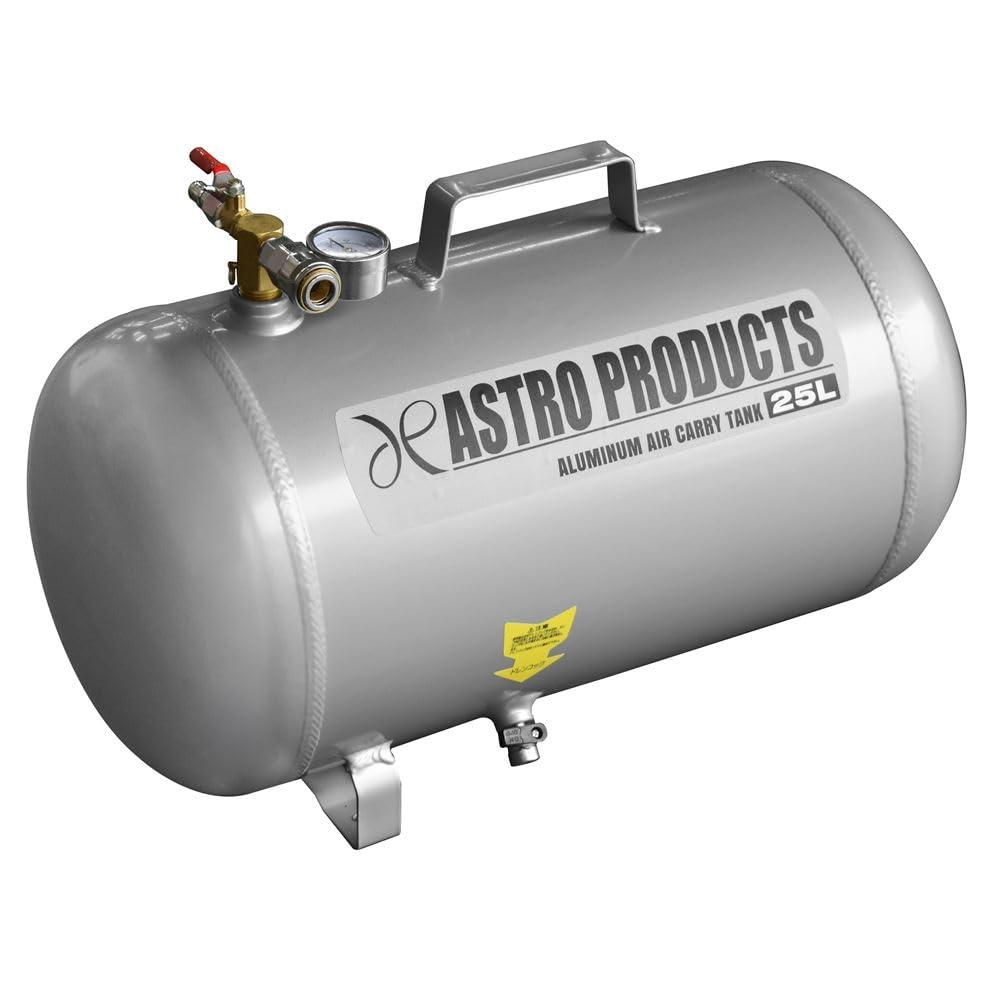

Astro Products Aluminum Air Sub Tank 25L

2004000007814

B01MA3U36J

2004000007814

Astro Products-2004000007814-Aluminum-Air Sub Tank-25L
▪️Tank Capacity (L): 25\
▪️Maximum Air Pressure (MPa): 0.78\
▪️Gauge Range (MPa): 0~1.18 (0~12 kgf/cm2)\

▪️Minimum Graduation (MPa): 0.02 (0.25 kgf/cm²)\
▪️Material: Aluminum\
※Do not apply pressure exceeding the maximum working pressure.\
※When connecting to a high-output air compressor, always adjust the pressure to 0.78 MPa (8 kgf/cm²) or below. \
※The safety valve will open when the tank pressure reaches 0.88MPa (9Kgf/cm2).\
※Before filling with compressed air, always ensure the air hose is securely connected and the air cock is open. \
※To prevent rust inside the tank, always loosen the drain bolt and drain water after use.\
Brand Name: Astro Products\
Material: Aluminum
Dimensions: W500×D255×H320mm
Weight: 3.7kg
Tank Capacity: 25L
Maximum Working Pressure: 0.78MPa
Safety Valve Activation Pressure: 0.88MPa
2004000007814\ nB01MA3U36J
Astro Products Aluminum Air Sub Tank 25L
(text created at , 2025-11-12)

320x260x500 mm

3700 g
