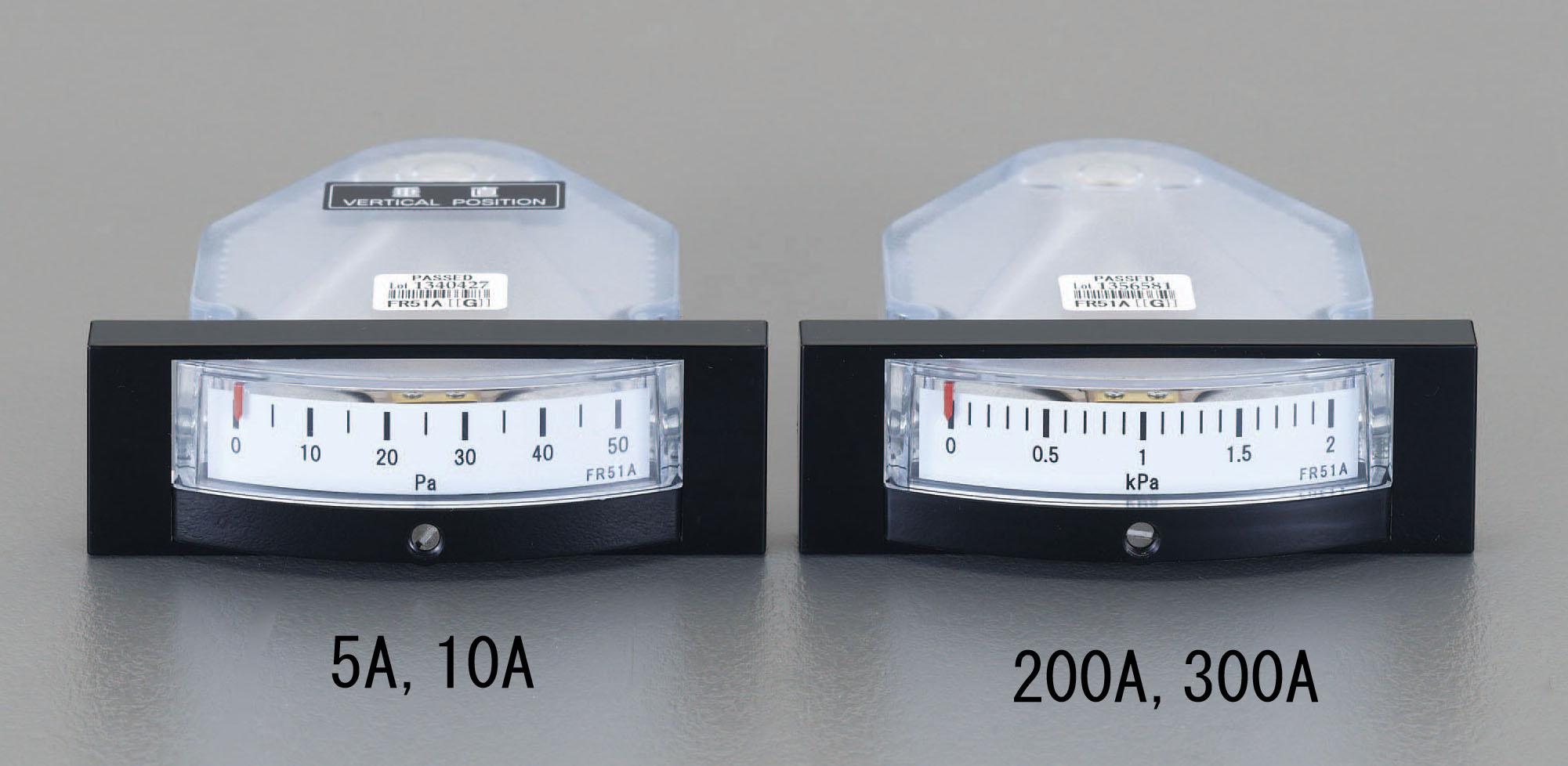

ESCO 0-2.0 kPa Differential Pressure Gauge EA729SB-200A

4548745508680

B007ZLDMDE

EA729SB-200A

80 (W) × 85 (D) × 26 (H) mm

▪️ Compact and lightweight design for flexible installation
▪️ Unique mechanism resistant to abnormal high-pressure surges
▪️ High-performance silicone diaphragm with low hysteresis
▪️ Band link mechanism for stable pointer operation
▪️ Scale range: 0/2 kPa

▪️Pressure unit: kPa
▪️Pressure measurement method: Differential pressure type
▪️Pressure sensing element: Diaphragm
▪️Measured gas: Air and non-corrosive gases (liquids not permitted)

▪️Scale configuration: Edgewise type (Scale length: Approx. 45mm)
▪️Operating ambient temperature: -10/50℃ (No freezing)
▪️Operating ambient humidity: 90%RH or less (No condensation)
▪️Instrument body pressure resistance: 50kPa

▪️Enclosure Material: Acrylic resin, PVC
▪️Vibration Resistance: 5/10Hz full amplitude: 10mm, 10/50Hz acceleration full amplitude: 39m/s² (2 hours per axis in 3 directions)
▪️Shock Resistance: 100m/s² (6 times per axis in 3 directions)

▪️Compatible piping: Vinyl or rubber tubing (ID 4)
▪️Fitting section: Integral molded with main body
▪️Fitting polarity: Marked on fitting section as “H” for high-pressure side, “L” for low-pressure side
▪️Outer dimensions: 80(W) × 85(D) × 26(H) mm

▪️Weight: 90g
▪️Standard Mounting Position: Vertical (specified)
▪️Accuracy: Within ±2.5% F.S. (at 23°C)
▪️Reception Element Material: Silicone Rubber

▪️Reception Element Pressure Resistance: 20kPa
Brand Name: Esco
4548745508680
B007ZLDMDE
ESCO 0-2.0KPa Differential Pressure Gauge EA729SB-200A
