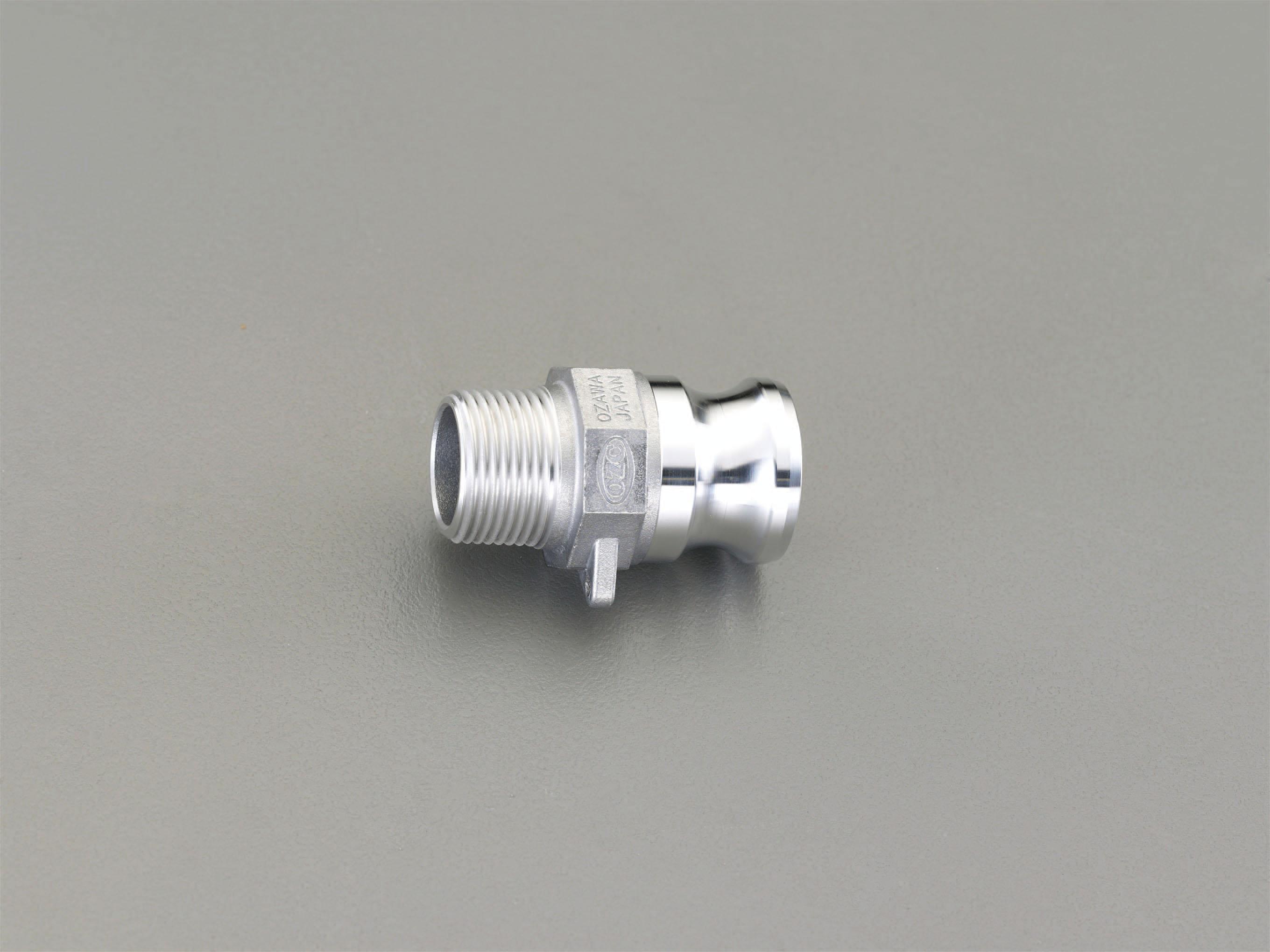

R2-1/2 Male Thread Plug (Aluminum)
JAN
4548745580303
ASIN
B006Y49UQG
Maker
Model No.
EA462BB-24
Color
Size
D: 76, E: 56, K: 83, h: 51, H: 100
Description
Material: Cast Aluminum (AC4C-T6) Working Pressure: 1.08MPa (11kgf/cm²) Working Temperature: -30℃/70℃ Nominal Diameter: 65 (2-1/2“) Thread Size: PT 2-1/2” Dimensions (mm): D:76, E:56, K:83, h:51, H:100 Weight: 0.4kg This type is installed onto the female threaded end of pipe fittings and hose fittings.
Brand Name: Esco
Material: Cast Aluminum (AC4C-T6)
Working Pressure: 1.08MPa (11kgf/cm²)
Working Temperature: -30℃/70℃
Nominal Diameter: 65 (2-1/2")
Thread Size: PT 2-1/2"
Size (mm): D:76, E:56, K:83, h:51, H:100
Weight: 0.4kg
This type is installed on the female threaded end of piping and hose fittings.
4548745580303
“R2-1/2” “Male Thread Plug (Aluminum)”
(text created at , 2025-05-09)
Brand Name: Esco
Material: Cast Aluminum (AC4C-T6)
Working Pressure: 1.08MPa (11kgf/cm²)
Working Temperature: -30℃/70℃
Nominal Diameter: 65 (2-1/2")
Thread Size: PT 2-1/2"
Size (mm): D:76, E:56, K:83, h:51, H:100
Weight: 0.4kg
This type is installed on the female threaded end of piping and hose fittings.
4548745580303
“R2-1/2” “Male Thread Plug (Aluminum)”
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
6,582 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
