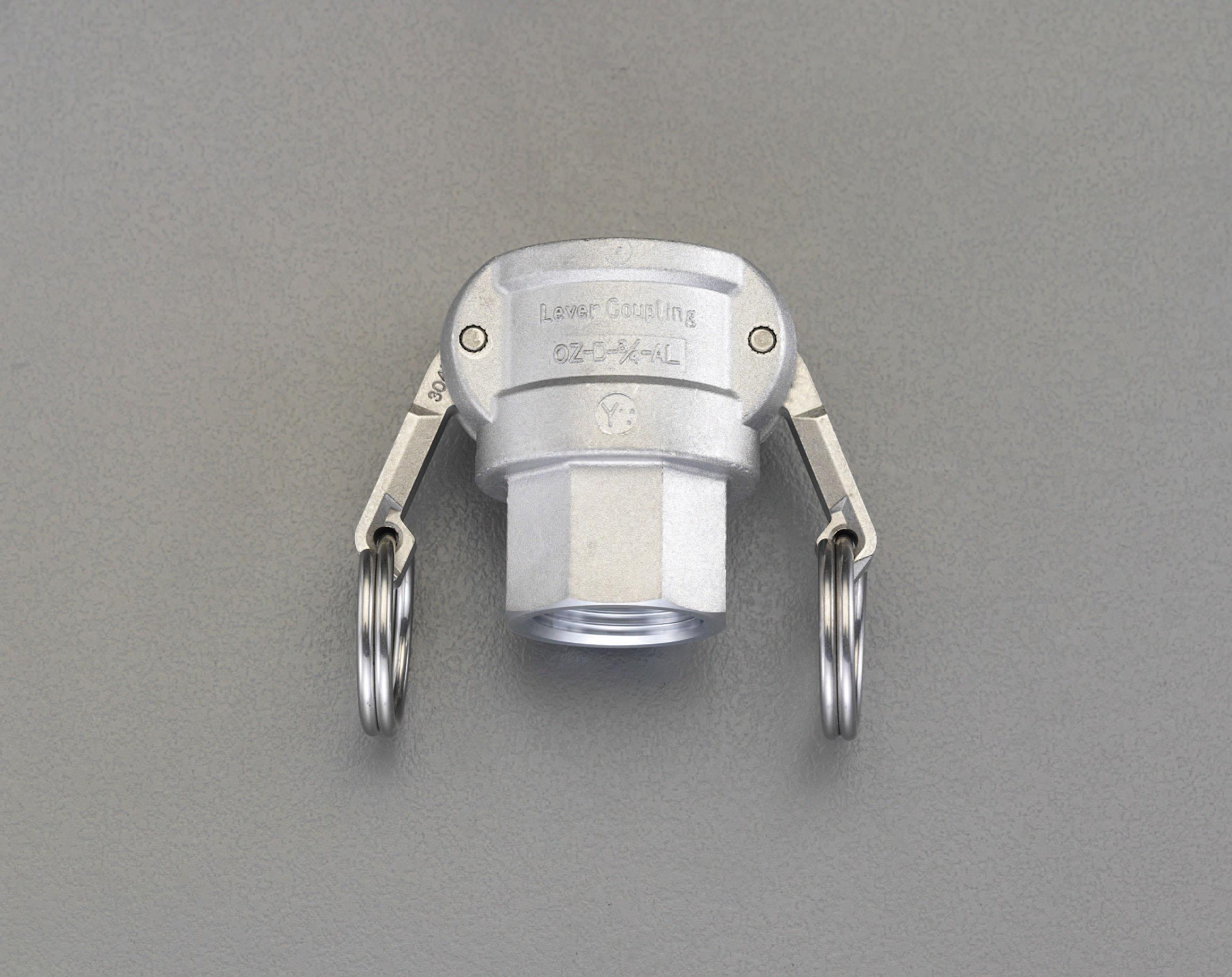

R1/2 Female Thread Coupling (Aluminum)
JAN
4548745580914
ASIN
B006Y49YAS
Maker
Model No.
EA462BD-14
Color
Size
A: 191, B: 89, C: 53, F: 38, H: 71
Description
Material: Aluminum die-cast (ADC12) Working pressure: 1.76MPa (18kgf/cm²) Working temperature: -30℃/70℃ Nominal diameter: 40 (1-1/2“) Thread size: PT 1-1/2” Dimensions (mm): A:191, B: 89, C: 53, F: 38, H: 71 Weight: 0.37 kg This type attaches to the male threaded end of pipe or hose fittings. It can be easily connected and disconnected by operating the lever on the coupler.
Brand Name: Esco
Material: Aluminum Die Casting (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Working Temperature: -30°C/70°C
Nominal Diameter: 40 (1-1/2")
Thread Size: PT 1-1/2"
Dimensions (mm): A: 191, B: 89, C: 53, F: 38, H: 71
Weight: 0.37 kg
This type is designed to be attached to the male threaded end of pipe fittings and hose fittings.
It can be easily connected and disconnected by operating the lever on the coupler.
4548745580914
“R1·1/2” “Female Thread Coupling (Aluminum)”
(text created at , 2025-05-11)
Brand Name: Esco
Material: Aluminum Die Casting (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Working Temperature: -30°C/70°C
Nominal Diameter: 40 (1-1/2")
Thread Size: PT 1-1/2"
Dimensions (mm): A: 191, B: 89, C: 53, F: 38, H: 71
Weight: 0.37 kg
This type is designed to be attached to the male threaded end of pipe fittings and hose fittings.
It can be easily connected and disconnected by operating the lever on the coupler.
4548745580914
“R1·1/2” “Female Thread Coupling (Aluminum)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,777 JPY (Including Tax)
