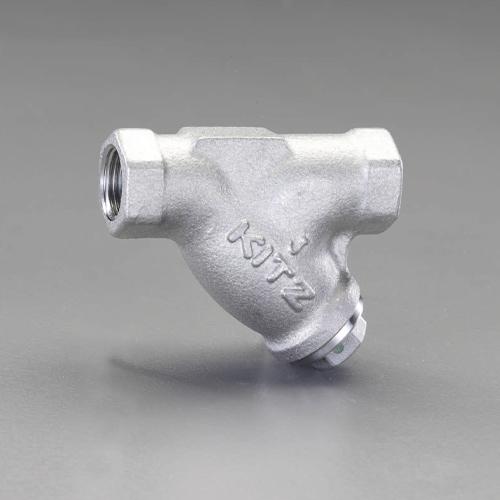

ESCO 3/8 Strainer EA465AK-3
JAN
4548745599435
ASIN
B006Y4B2P8
Maker
Model No.
EA465AK-3
Color
Size
L: 70, H: 50, H1: 68, D: 15, l: 36
Description
Description\
\
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304\
Maximum Pressure: Clean water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa\
Connection Type: Screw-in: JIS B 0203\
Nominal Size: 10 (3/8”)\
Dimensions (mm): L: 70, H: 50, H1: 68, D:15, l:36\
Weight:0.37kg
Brand Name: Esco
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B 0203
Nominal Size: 10 (3/8”)
Dimensions (mm): L: 70, H: 50, H1: 68, D:15, l:36
4548745599435
B006Y4B2P8
ESCO 3/8 Strainer EA465AK-3
(text created at , 2025-11-12)
\
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304\
Maximum Pressure: Clean water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa\
Connection Type: Screw-in: JIS B 0203\
Nominal Size: 10 (3/8”)\
Dimensions (mm): L: 70, H: 50, H1: 68, D:15, l:36\
Weight:0.37kg
Brand Name: Esco
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B 0203
Nominal Size: 10 (3/8”)
Dimensions (mm): L: 70, H: 50, H1: 68, D:15, l:36
4548745599435
B006Y4B2P8
ESCO 3/8 Strainer EA465AK-3
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
15,513 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
