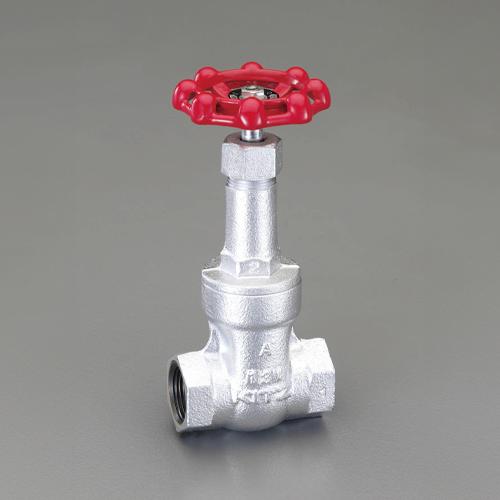

ESCO Rc1・1/4 Gate Valve (Ductile Iron) EA470DE-12
JAN
4548745611625
ASIN
B006Y4AEY8
Maker
Model No.
EA470DE-12
Color
Size
L: 85mm, H (fully extended): 233mm, D: 90mm
Description
Description\
\
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SCS1, Packing: Non-asbestos, Handle: FCD450-10\
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)\
Oil refers to lubricating oil, hydraulic oil, etc. \
Class: 10K\
Nominal Diameter: 32 (1-1/4")\
Connection Type: Screw-in: JIS B 0203\
Dimensions: L: 85mm, H (Fully Open): 233mm, D: 90mm\
Weight: 1.849kg
Brand Name: Esco (Esco)
Material: Body: Ductile Iron (FCD-S)
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SCS1, Packing: Non-asbestos, Handle: FCD450-10
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc.
Class: 10K
Nominal Diameter: 32 (1-1/4")
Connection Type: Screw-in: JIS B 0203
Dimensions: L: 85mm, H (Fully Open): 233mm, D: 90mm
4548745611625\ nB006Y4AEY8
ESCO Rc1-1/4 Gate Valve (Ductile Iron) EA470DE-12
(text created at , 2025-11-12)
\
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SCS1, Packing: Non-asbestos, Handle: FCD450-10\
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)\
Oil refers to lubricating oil, hydraulic oil, etc. \
Class: 10K\
Nominal Diameter: 32 (1-1/4")\
Connection Type: Screw-in: JIS B 0203\
Dimensions: L: 85mm, H (Fully Open): 233mm, D: 90mm\
Weight: 1.849kg
Brand Name: Esco (Esco)
Material: Body: Ductile Iron (FCD-S)
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SCS1, Packing: Non-asbestos, Handle: FCD450-10
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc.
Class: 10K
Nominal Diameter: 32 (1-1/4")
Connection Type: Screw-in: JIS B 0203
Dimensions: L: 85mm, H (Fully Open): 233mm, D: 90mm
4548745611625\ nB006Y4AEY8
ESCO Rc1-1/4 Gate Valve (Ductile Iron) EA470DE-12
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
24,233 JPY (Including Tax)
