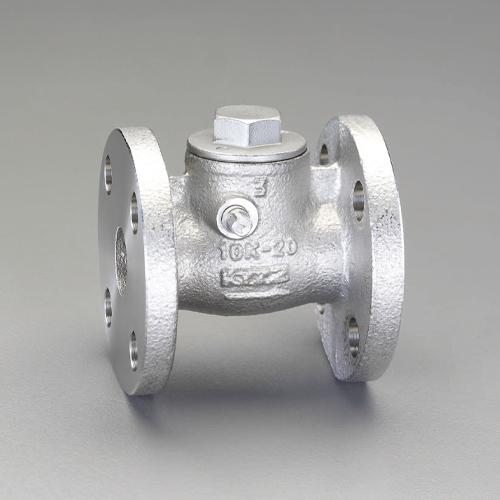

ESCO 1/2 Swing Check Valve (Flanged Type) EA465AB-4
JAN
4548745612585
ASIN
B006Y4AVI2
Maker
Model No.
EA465AB-4
Color
Size
L: 85, H: 45
Description
Brand Name: Esco
Material: Stainless Steel
Composition: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection: Flange Connection (JIS B2220 10K)
Nominal Size: 15 (1/2”)
Size (mm): L: 85, H: 45
Weight: 1.4 kg
4548745612585
B006Y4AVI2
ESCO 1/2 Swing Check Valve (Flange Type) EA465AB-4
(text created at , 2025-11-12)
Material: Stainless Steel
Composition: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection: Flange Connection (JIS B2220 10K)
Nominal Size: 15 (1/2”)
Size (mm): L: 85, H: 45
Weight: 1.4 kg
4548745612585
B006Y4AVI2
ESCO 1/2 Swing Check Valve (Flange Type) EA465AB-4
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
41,800 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
