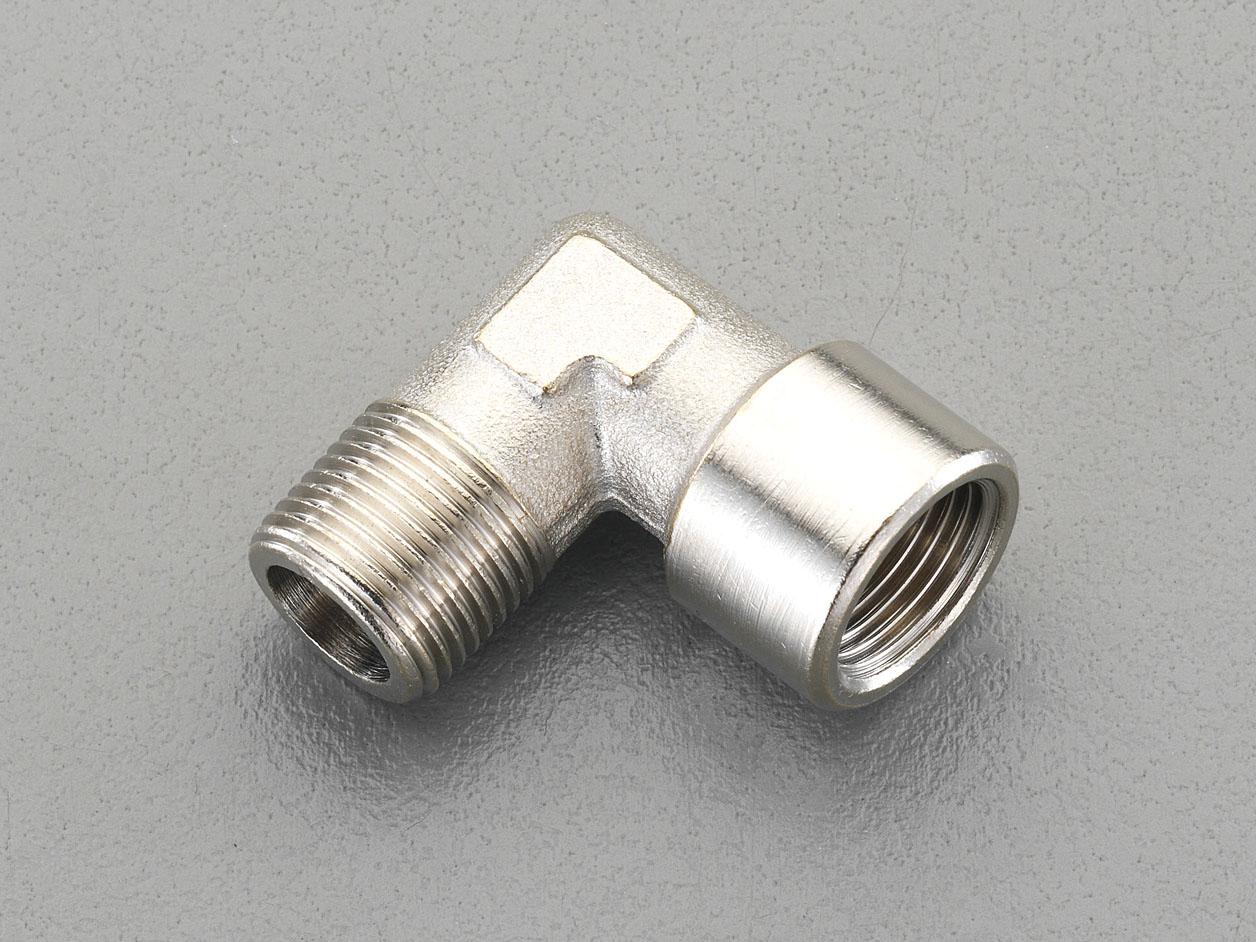

ESCO R1/8xG1/8 Elbow Connector (Brass) EA141CA-1
JAN
4548745732009
ASIN
B00AXUJI3M
Maker
Model No.
EA141CA-1
Color
Size
b: 18.8, h: 21
Description
ESCO-Elbow Connector-Brass
Material: Brass (Nickel Plated)
Maximum Working Pressure: 0.78MPa (8kgf/cm2)
Thread Size (Male): R(PT) 1/8“
Thread Size (Female): G(PF) 1/4”\ Hexagon width across flats: 11mm
Size (mm): b: 18.8, h: 21
Effective thread length: 8mm
Weight: Approx. 21g
Brand Name: Esco
Material: Brass
Maximum Working Pressure: 0.78MPa (8kgf/cm²)
Thread Size (Male): R(PT) 1/8"
Thread Size (Female): G(PF) 1/4"
Hexagon Diagonal: 11mm
Effective Thread Length: 8mm
4548745732009
ESCO R1/8xG1/8 Elbow Connector (Brass) EA141CA-1
(text created at , 2025-05-11)
Material: Brass (Nickel Plated)
Maximum Working Pressure: 0.78MPa (8kgf/cm2)
Thread Size (Male): R(PT) 1/8“
Thread Size (Female): G(PF) 1/4”\ Hexagon width across flats: 11mm
Size (mm): b: 18.8, h: 21
Effective thread length: 8mm
Weight: Approx. 21g
Brand Name: Esco
Material: Brass
Maximum Working Pressure: 0.78MPa (8kgf/cm²)
Thread Size (Male): R(PT) 1/8"
Thread Size (Female): G(PF) 1/4"
Hexagon Diagonal: 11mm
Effective Thread Length: 8mm
4548745732009
ESCO R1/8xG1/8 Elbow Connector (Brass) EA141CA-1
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
30x16x39 mm
Package
Weight (Approx.):
Weight (Approx.):
20 g
538 JPY (Including Tax)
Stock :
117
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
