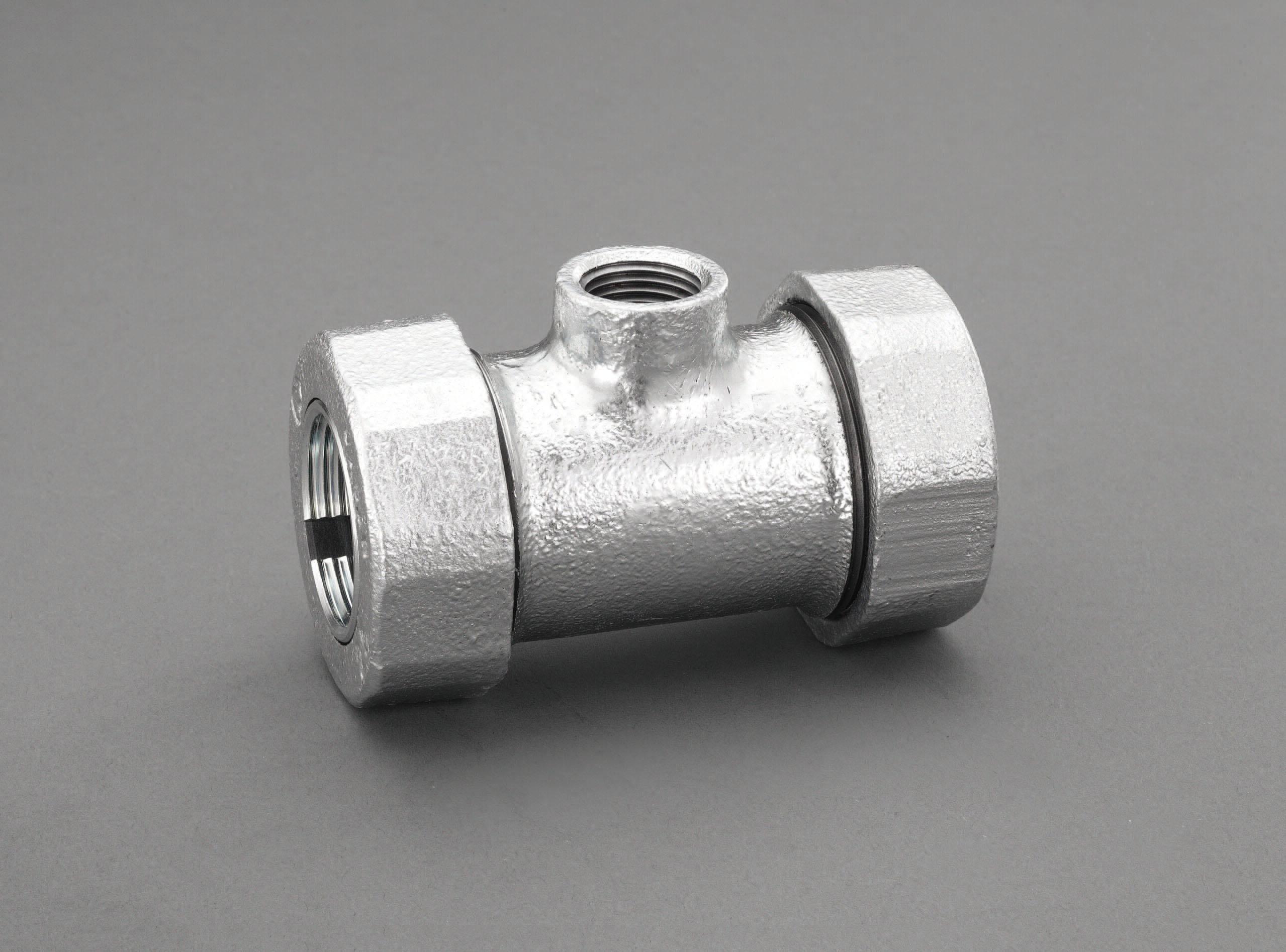

ESCO 65Ax50AxRc2 Different Diameter Female Thread Cheese/Mechanical Fitting EA469HH-16

4548745784206

B00AXUKS4U

EA469HH-16

B: 70mm, X: 80mm, A: 92.5mm

Nominal Size: 65A × 50A Thread Size (D): Rc(PT)2 Nut Face-to-Face Width: 110 × 89 mm Nut Height: 26 × 24 mm Face-to-Center Distance: B: 70 mm, X: 80mm, A: 92.5mm Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR Weight: 3500g Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm²) The maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for hydraulic fluids containing additives. Operating temperature range: -10°C/60°C (0°C/40°C for water). For use exceeding 60°C, replace the packing with heat-resistant packing. Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl chloride lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25 and 30 ※Not usable for nominal sizes 65×50 and 80×50, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Replacement of packing set required for sizes 25 and 30 ※Cannot be used for sizes 65×50 and 80×50, JIS K6762: Polyethylene Two-Layer Pipes for Water Supply (Type 1) ※ Nominal sizes 30, 40, 50 require an insert※Cannot be used with nominal sizes 65×50, 80×50
Brand Name: Esco
Material: Body/ Nut: Malleable cast iron (hot-dip galvanized)
Nominal size: 65A×50A
Thread size (D): Rc(PT)2
Nut face-to-face width: 110×89mm
Nut height: 26×24mm
Face-to-face/center-to-center size: B: 70mm, X: 80mm, A: 92.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 3500g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
Maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).
4548745784206\ nB00AXUKS4U
ESCO 65Ax50AxRc2 Different Diameter Female Threaded Cheese/Mechanical Joint EA469HH-16
(text created at , 2025-11-12)

250x100x250 mm

2000 g
