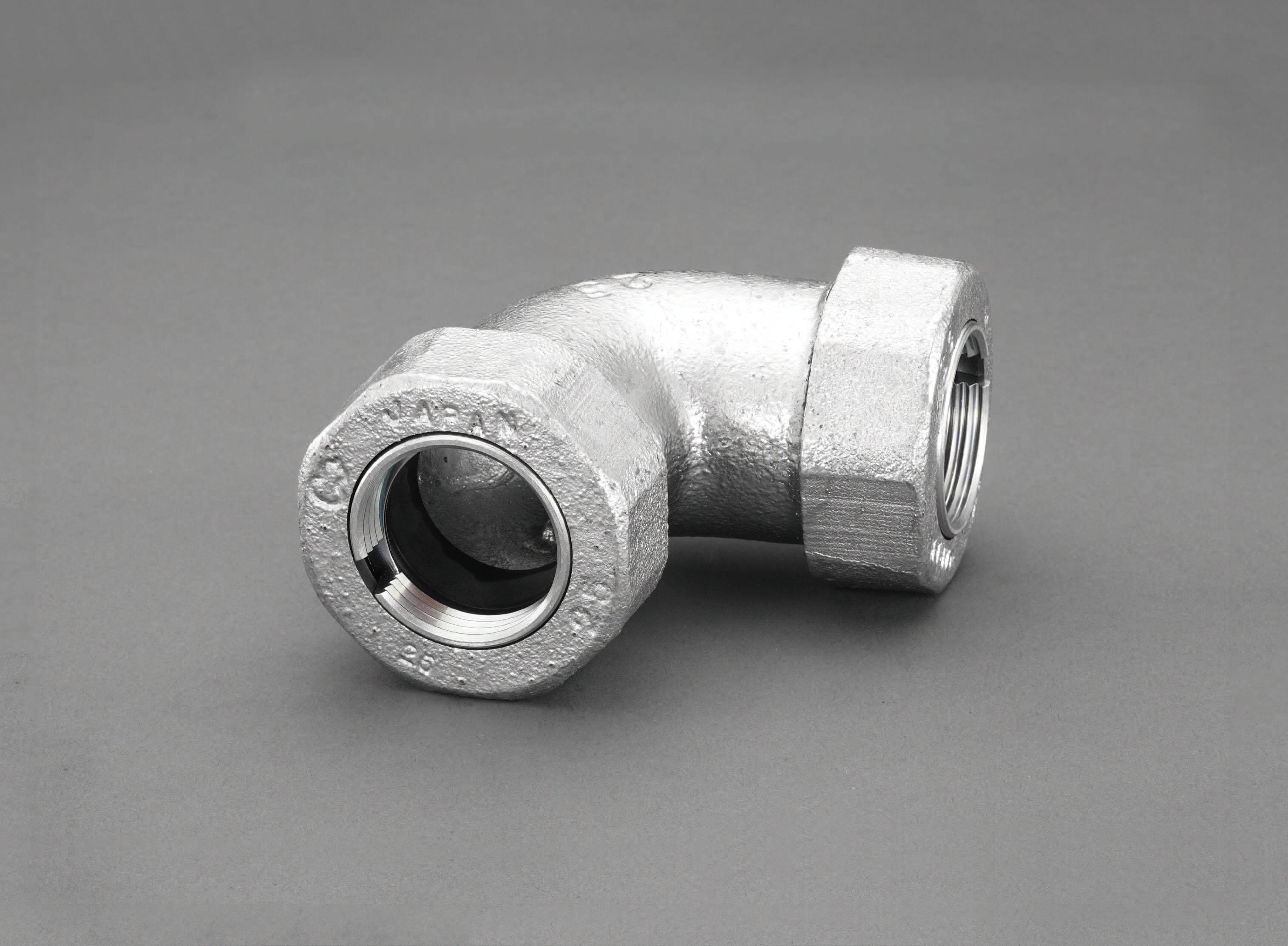

ESCO 25A Elbow for 3 Pipe Sizes Mechanical Fitting EA469HB-25
JAN
4548745786057
ASIN
B00AXUKK8O
Maker
Model No.
EA469HB-25
Color
Size
X: 60mm, A: 70.5mm
Description
ESCO-EA469HB-25-25A Elbow - 3 Pipe Size Mechanical Fitting
Specifications
Nominal Size: 25A
Nut Face-to-Face Width: 59mm
Nut Height: 21mm
Face-to-Face/Center-to-Center Size: X: 60mm, A: 70.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 833g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for hydraulic fluid containing additives. Operating temperature range: -10°C/60°C (0°C/40°C for water) For use above 60°C, replace the packing with a heat-resistant type.
Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl-lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25, 30 ※Not usable for nominal sizes 65, 80, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Replacement of packing set required for sizes 25 and 30 ※Not usable for sizes 65 and 80, JIS K 6762: Sizes 30, 40, 50 require an insert※Not usable with sizes 65, 80
Code Part Number: EA469HB-25
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Quantity: 1 piece
4548745786057
Esco 25A Elbow 3-Pipe Type Mechanical Fitting EA469HB-25
(text created at , 2025-05-09)
Specifications
Nominal Size: 25A
Nut Face-to-Face Width: 59mm
Nut Height: 21mm
Face-to-Face/Center-to-Center Size: X: 60mm, A: 70.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 833g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for hydraulic fluid containing additives. Operating temperature range: -10°C/60°C (0°C/40°C for water) For use above 60°C, replace the packing with a heat-resistant type.
Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl-lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25, 30 ※Not usable for nominal sizes 65, 80, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Replacement of packing set required for sizes 25 and 30 ※Not usable for sizes 65 and 80, JIS K 6762: Sizes 30, 40, 50 require an insert※Not usable with sizes 65, 80
Code Part Number: EA469HB-25
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Quantity: 1 piece
4548745786057
Esco 25A Elbow 3-Pipe Type Mechanical Fitting EA469HB-25
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
86x59x91 mm
Package
Weight (Approx.):
Weight (Approx.):
940 g
6,233 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
