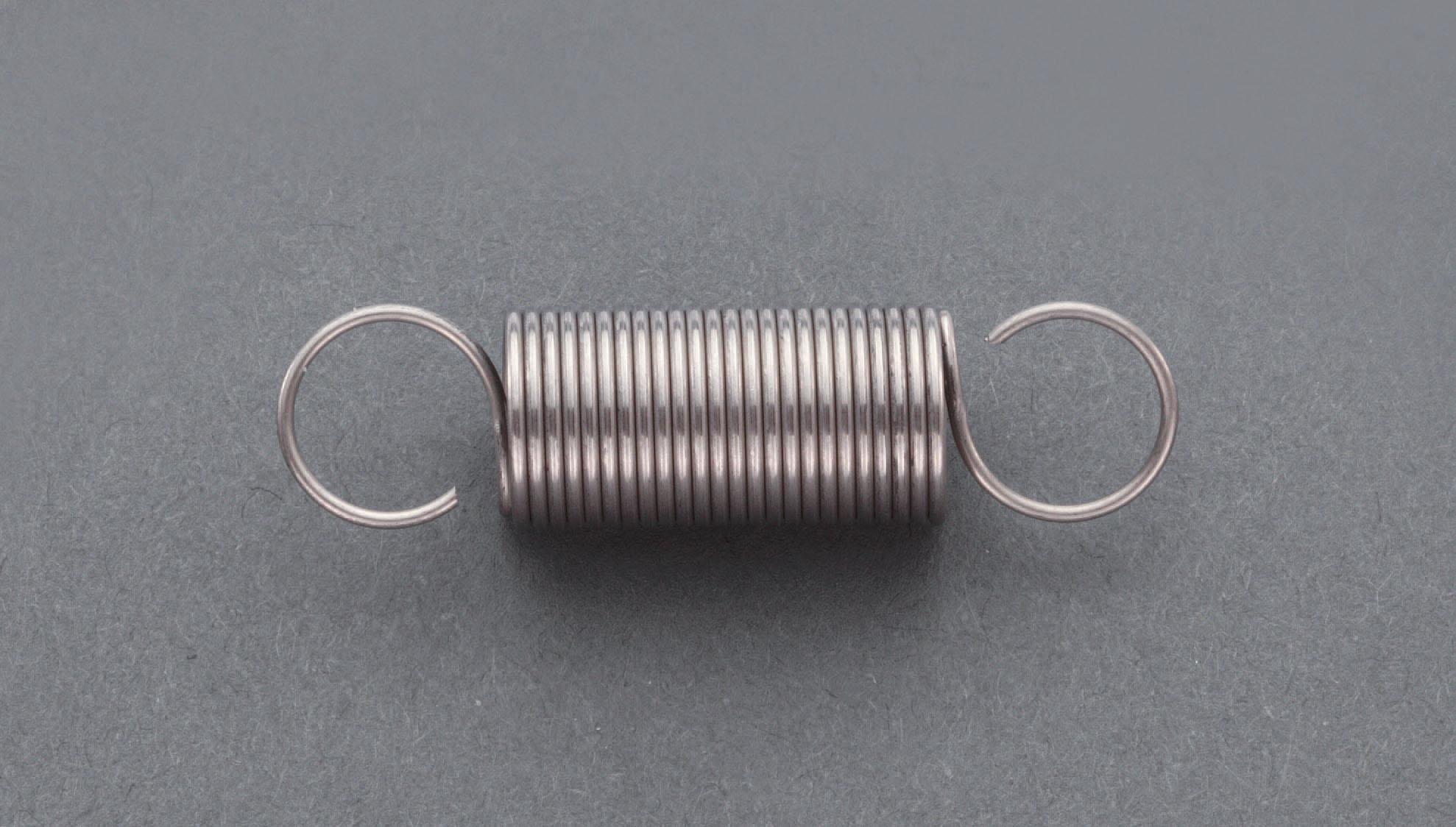

3.2 x 0.26 / 10.2mm Pull Spring (Stainless Steel / 5 Pieces) EA952SG-39
JAN
4548745794823
ASIN
B00AXVF9SY
Maker
Model No.
EA952SG-39
Color
Size
Description
ESCO-Pull Spring-Stainless Steel-5 Pieces
RoHS Compliant
Brand Name: Esco
Material: SUS304, Coil Direction: Right-Hand Coil
Allowable Load: 1.18N, Length at Allowable Load: 20.5mm
Wire Diameter...Diameter 0.26mm, Outer Diameter...Diameter 3.2mm, Height...10.2mm
Spring Constant...0.096N/mm
Initial Tension...0.186N
Hook Shape...Reverse Round Hook
Hook Opposite Angle...180°
Quantity...5 pieces
4548745794823
3.2x0.26/ 10.2mm Pull Spring (Stainless Steel/5 pcs) EA952SG-39
(text created at , 2025-05-09)
RoHS Compliant
Brand Name: Esco
Material: SUS304, Coil Direction: Right-Hand Coil
Allowable Load: 1.18N, Length at Allowable Load: 20.5mm
Wire Diameter...Diameter 0.26mm, Outer Diameter...Diameter 3.2mm, Height...10.2mm
Spring Constant...0.096N/mm
Initial Tension...0.186N
Hook Shape...Reverse Round Hook
Hook Opposite Angle...180°
Quantity...5 pieces
4548745794823
3.2x0.26/ 10.2mm Pull Spring (Stainless Steel/5 pcs) EA952SG-39
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
500 g
685 JPY (Including Tax)
