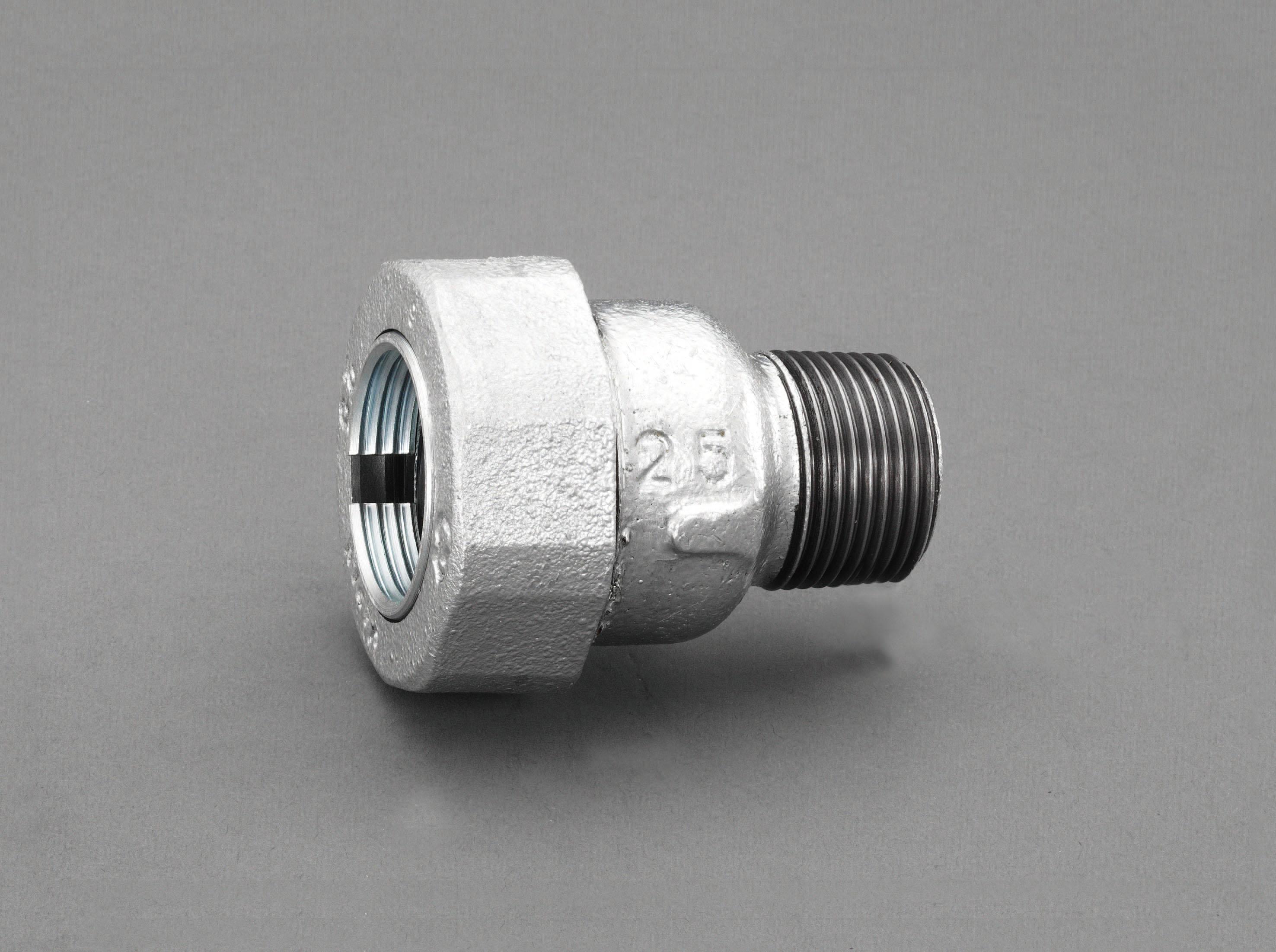

80A x R3 Male Threaded Socket (Mechanical Joint for 3 Pipe Types)
JAN
4548745826876
ASIN
B00AXUKO26
Maker
Model No.
EA469HE-80
Color
Size
X: 90mm, A: 102.5mm
Description
ESCO-Screw Socket-3 Pipe Type Mechanical Joint
Nominal Size: 80A
Screw Size (D): R(PT)3
Nut Face-to-Face Width: 126mm
Nut Height: 27mm
Face-to-Face Size: X: 90mm, A: 102.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1900g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).
Brand Name: Esco
Material: Body/ Nut: Malleable cast iron (hot-dip galvanized)
Nominal size: 80A
Thread size (D): R(PT)3
Nut face-to-face width: 126mm
Nut height: 27mm
Face-to-face size: X: 90mm, A: 102.5mm
4548745826876\ nB00AXUKO26
80A x R3 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-11-12)
Nominal Size: 80A
Screw Size (D): R(PT)3
Nut Face-to-Face Width: 126mm
Nut Height: 27mm
Face-to-Face Size: X: 90mm, A: 102.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1900g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).
Brand Name: Esco
Material: Body/ Nut: Malleable cast iron (hot-dip galvanized)
Nominal size: 80A
Thread size (D): R(PT)3
Nut face-to-face width: 126mm
Nut height: 27mm
Face-to-face size: X: 90mm, A: 102.5mm
4548745826876\ nB00AXUKO26
80A x R3 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
