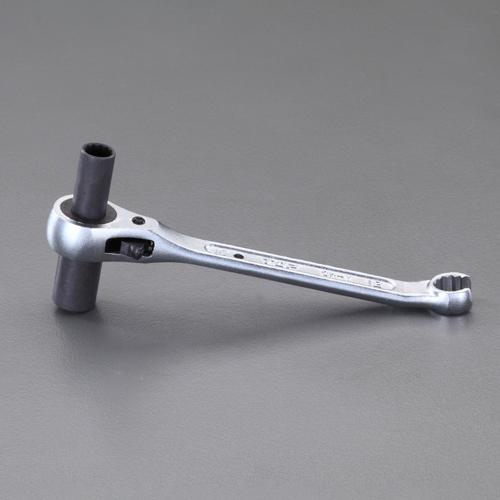

10x13mm / 174mm Hanging Band Wrench

4548745896589

B00IW4S1LG

EA602AL-2

12mm

Socket Section Size: 10×13mm Grip Section Size: 12mm Weight: 210g Dimensions: Total Length: 174mm D: 30.5mm S1: 14.0mm S2: 18.0mm T: 15.5mm Socket Length: 27mm Handle Outer Diameter: 21.0mm t: 10.0mm S3: 12.0mm Warranty Torque: 10mm: 78.5N·m 13mm: 94.1N·m Material: Chrome Vanadium 12-Point Reversible S3: 12.0mm Guaranteed Torque: 10mm: 78.5 N·m, 13mm: 94.1 N·m Material: Chrome Vanadium Ideal for installing 12-point reversible hanging bands and standing bands (10A/100A). The socket section is a deep-well long type at 27mm. The 12mm socket head can be used for turning lug nuts. Insert the socket head into the lug nut to enable quick turning without dropping it when hands are free. The socket head is angled at 15° for easier access when working from below. Both the body and claws are forged for exceptional strength. The body includes a 4.0mm diameter hole for a safety lanyard.

Brand Name: Esco
Socket Size: 10×13mm
Wrench Size: 12mm
Weight: 210g
Dimensions: Overall Length: 174mm, D: 30.5mm, S1: 14.0mm, S2: 18.0mm, T: 15.5mm, Socket Length: 27mm, Handle Outer Diameter: 21.0mm, t: 10.0mm, S3: 12.0mm
Rated Torque: 10mm: 78.5N·m, 13mm: 94.1N·m
Material: Chrome Vanadium
12-Point
Left/Right Switchable
Ideal for installing suspension bands and standing bands (10A/100A).
4548745896589
10x13mm／174mm Suspension Band Wrench
(text created at , 2025-05-10)

250x100x250 mm

1000 g
